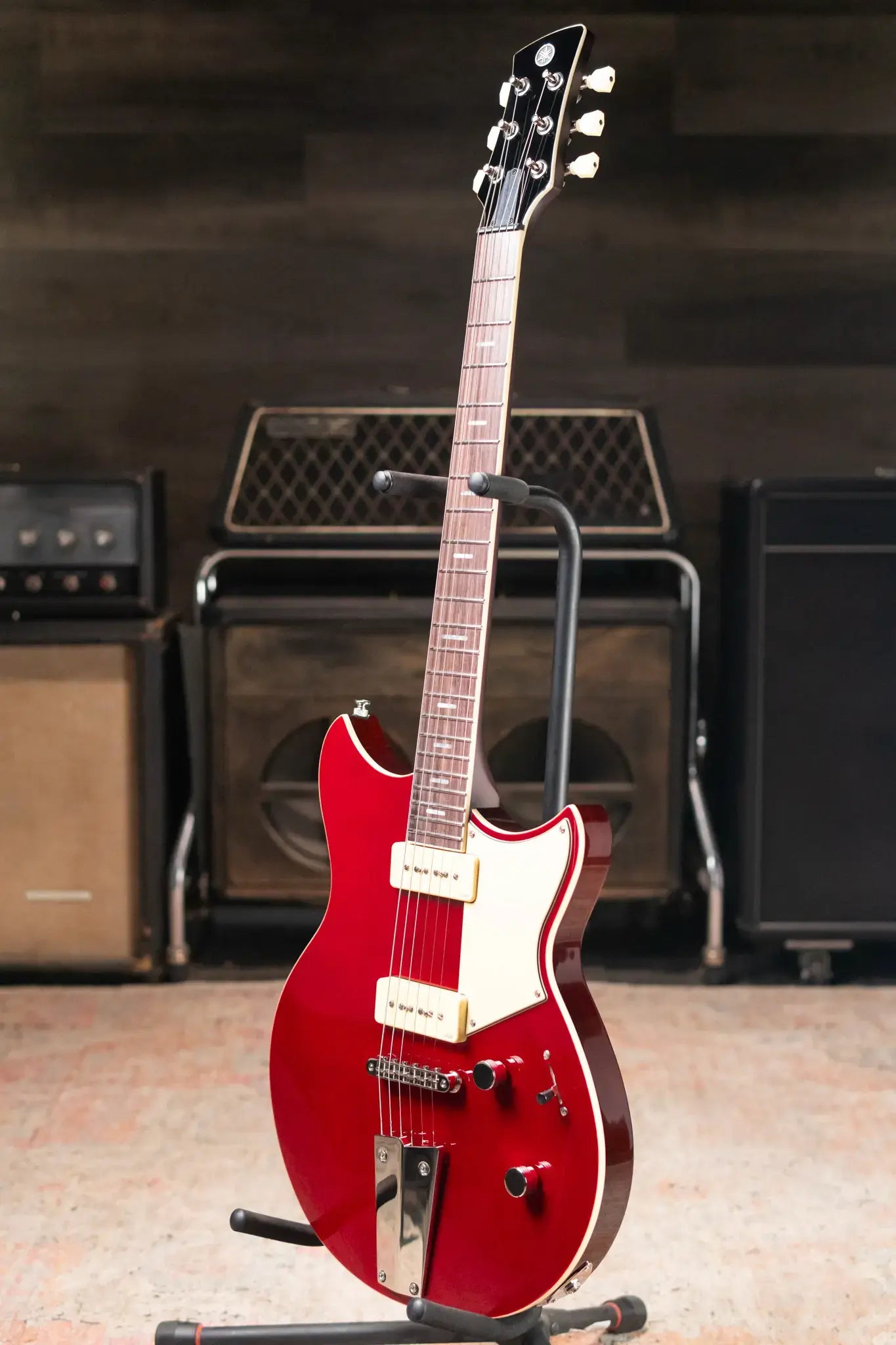

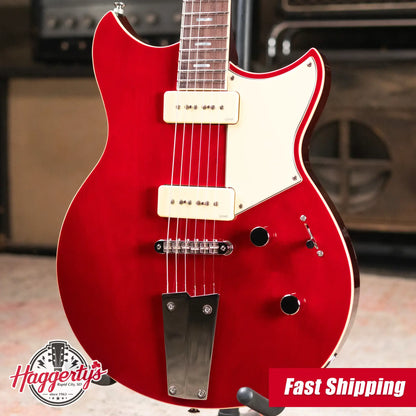

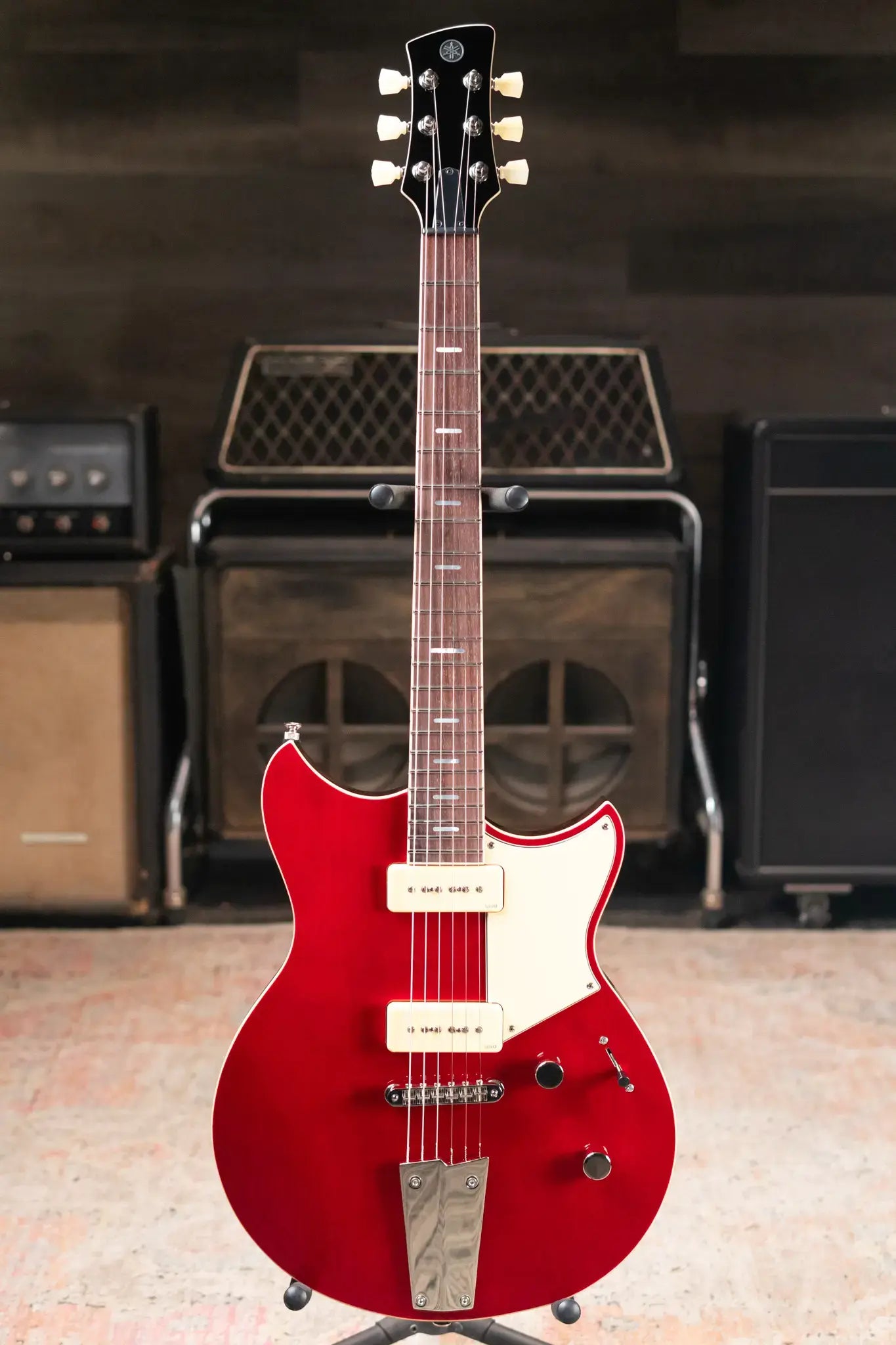

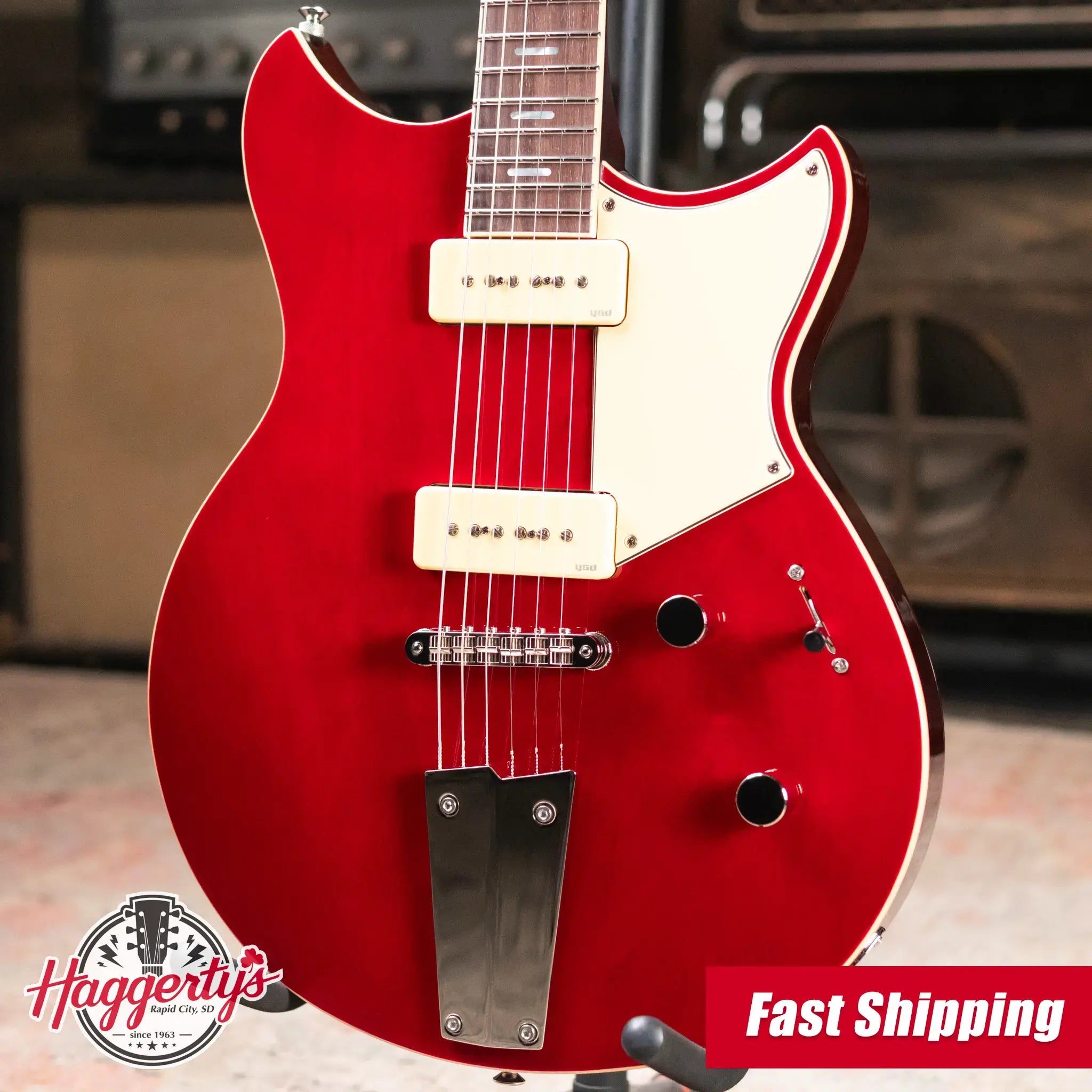

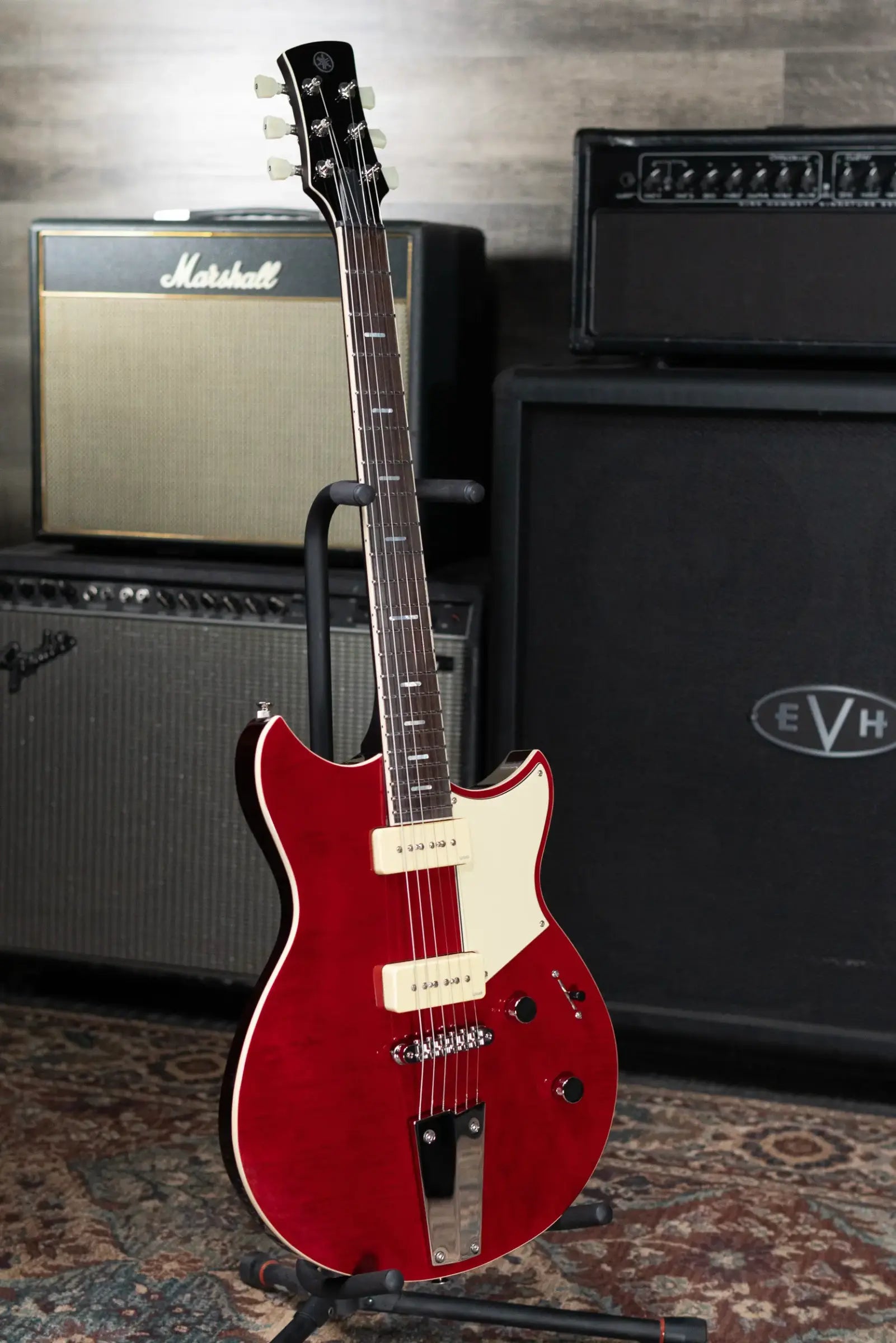

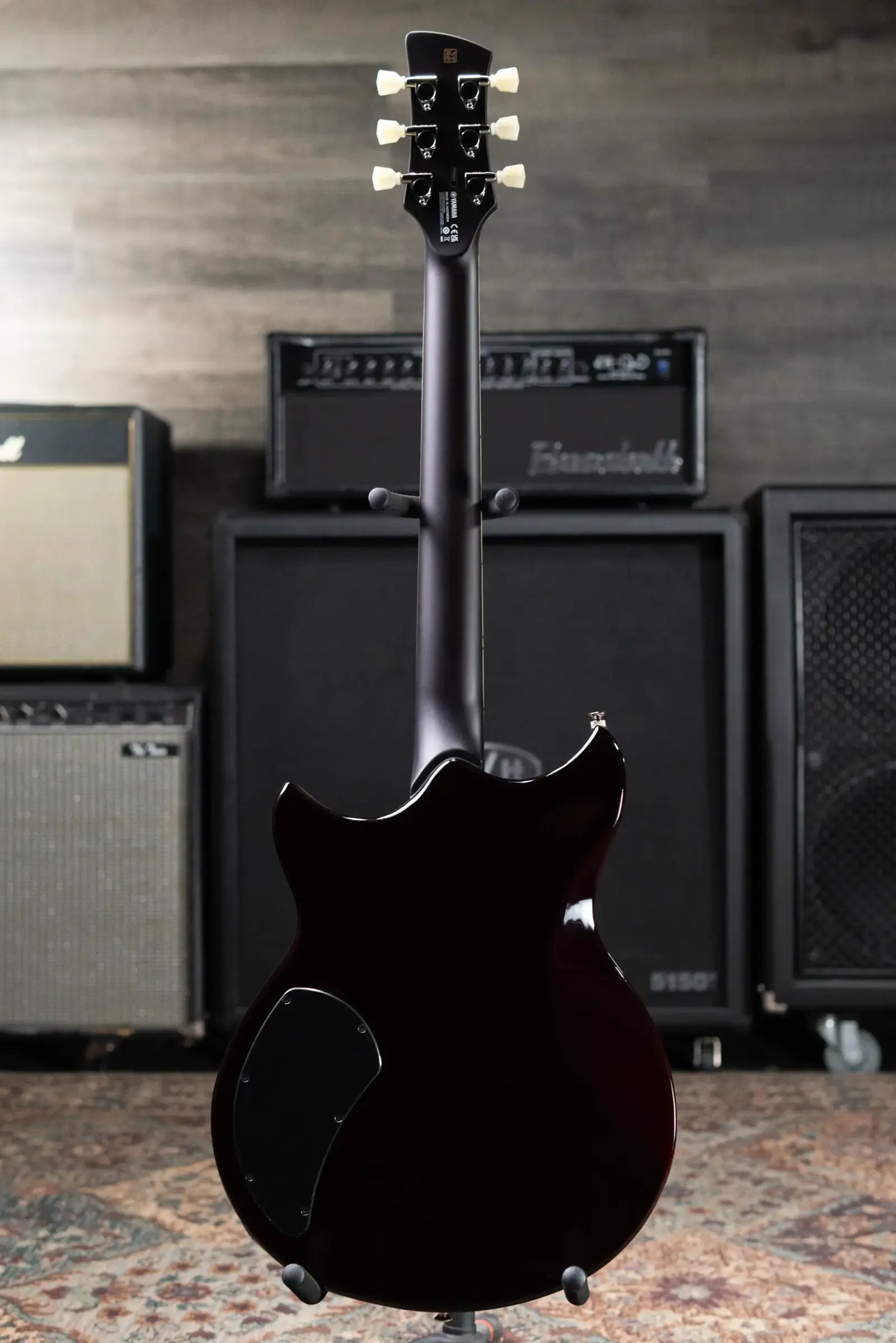

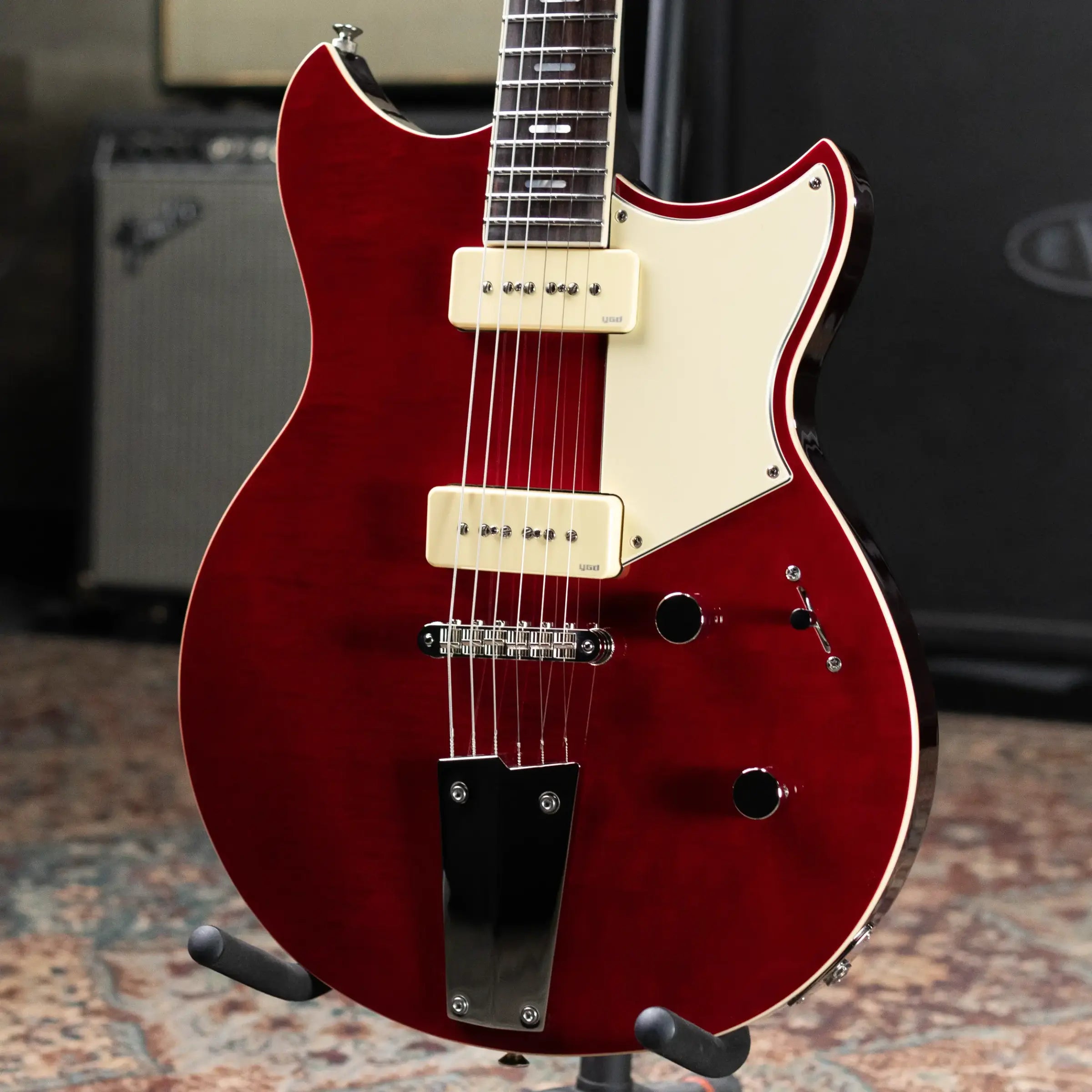

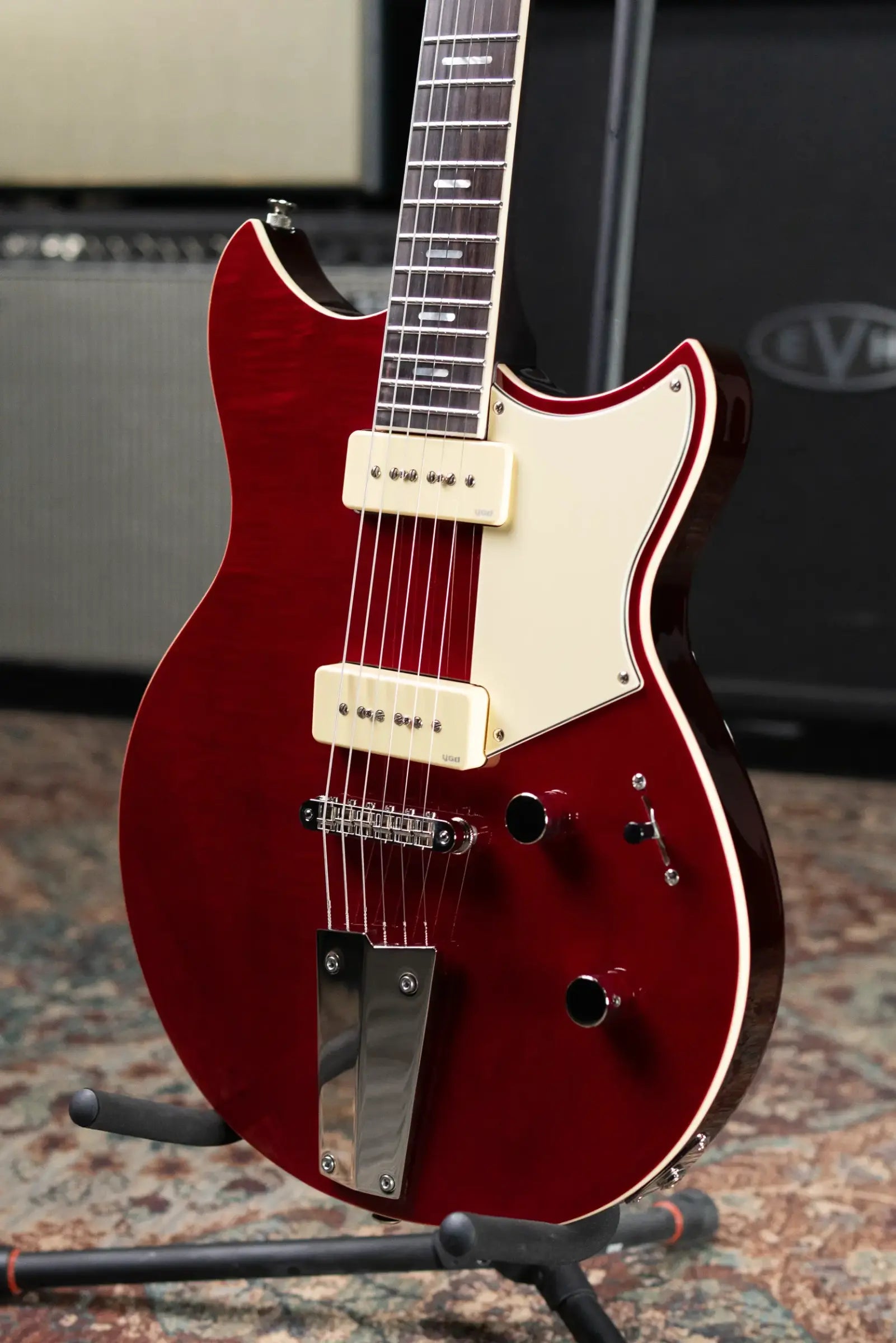

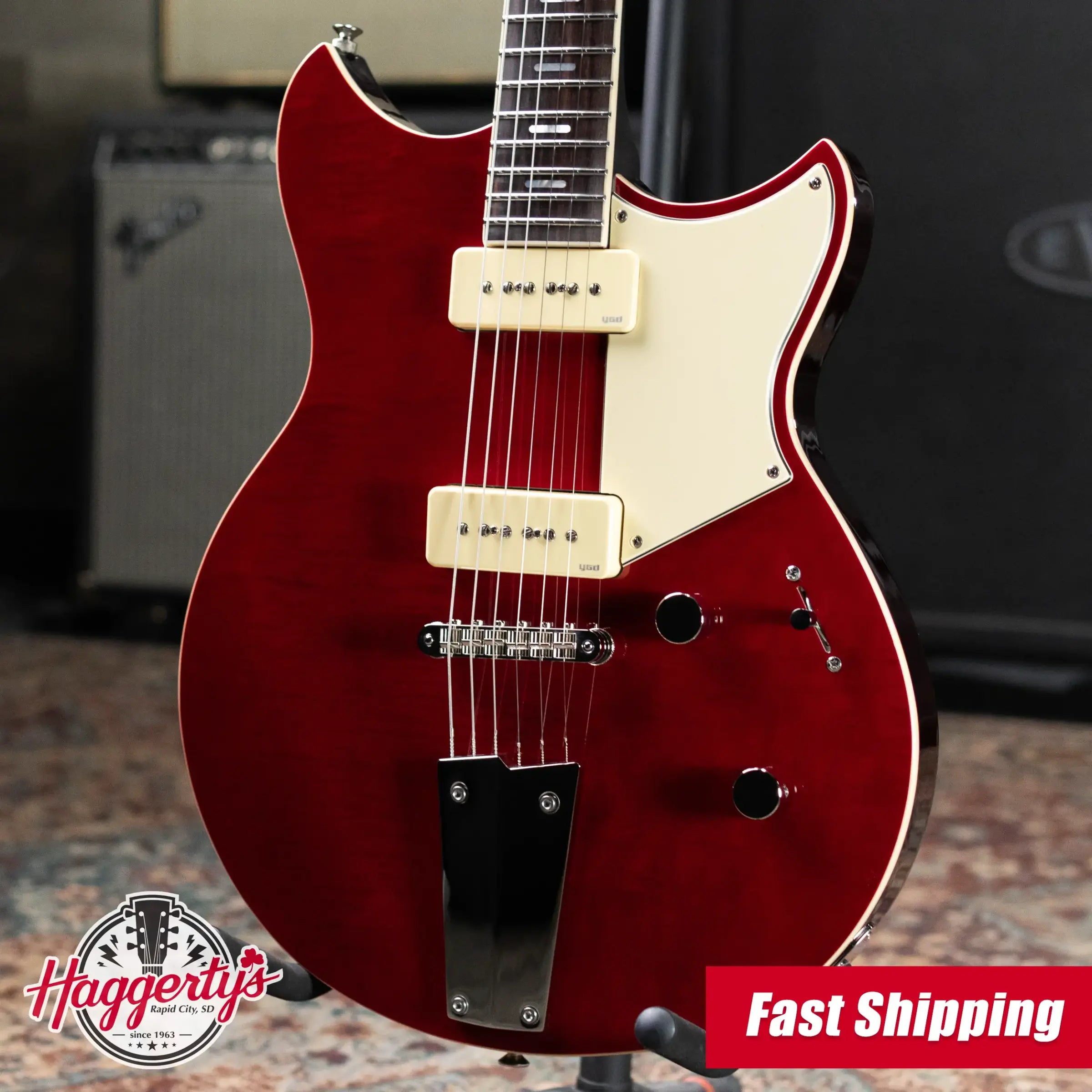

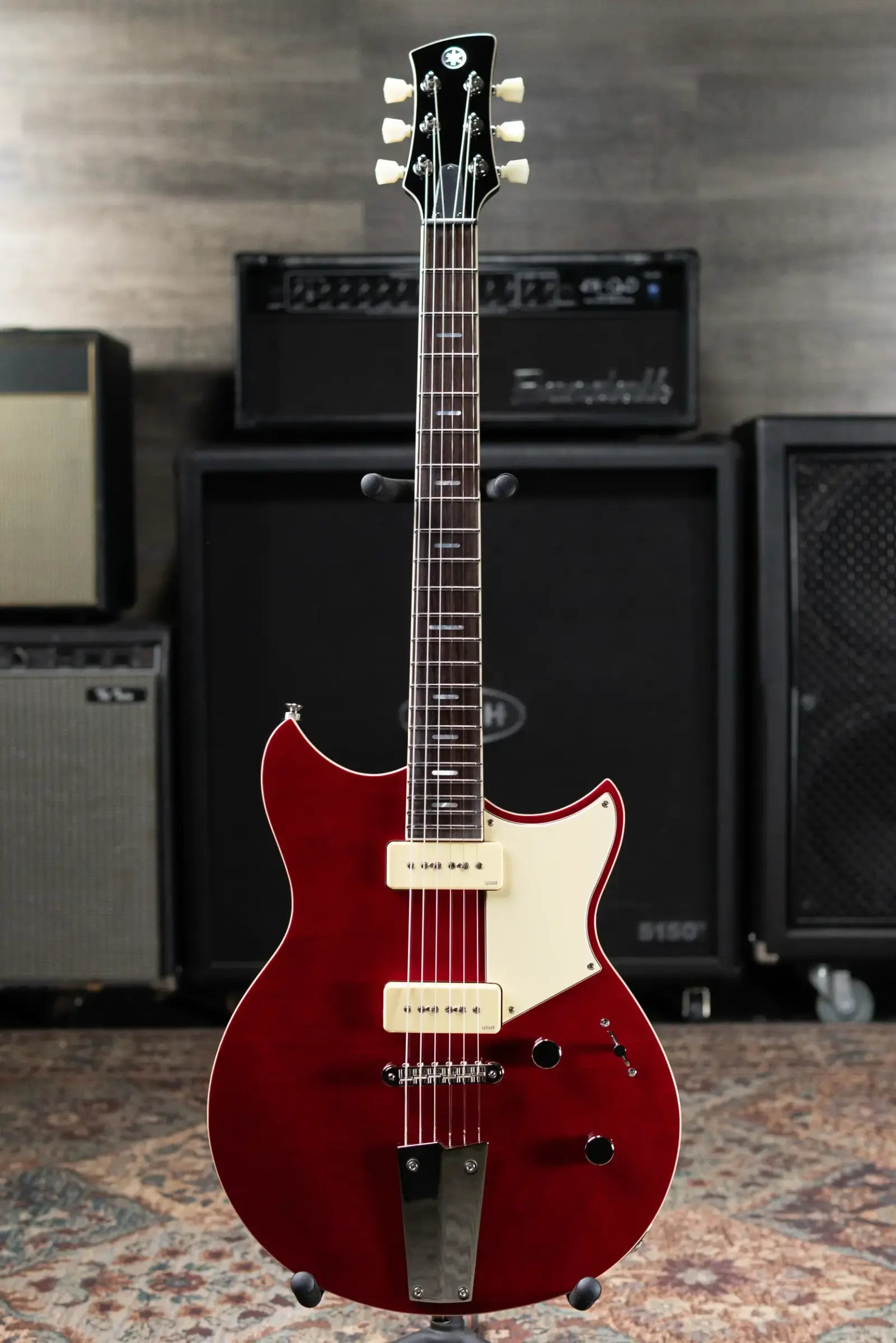

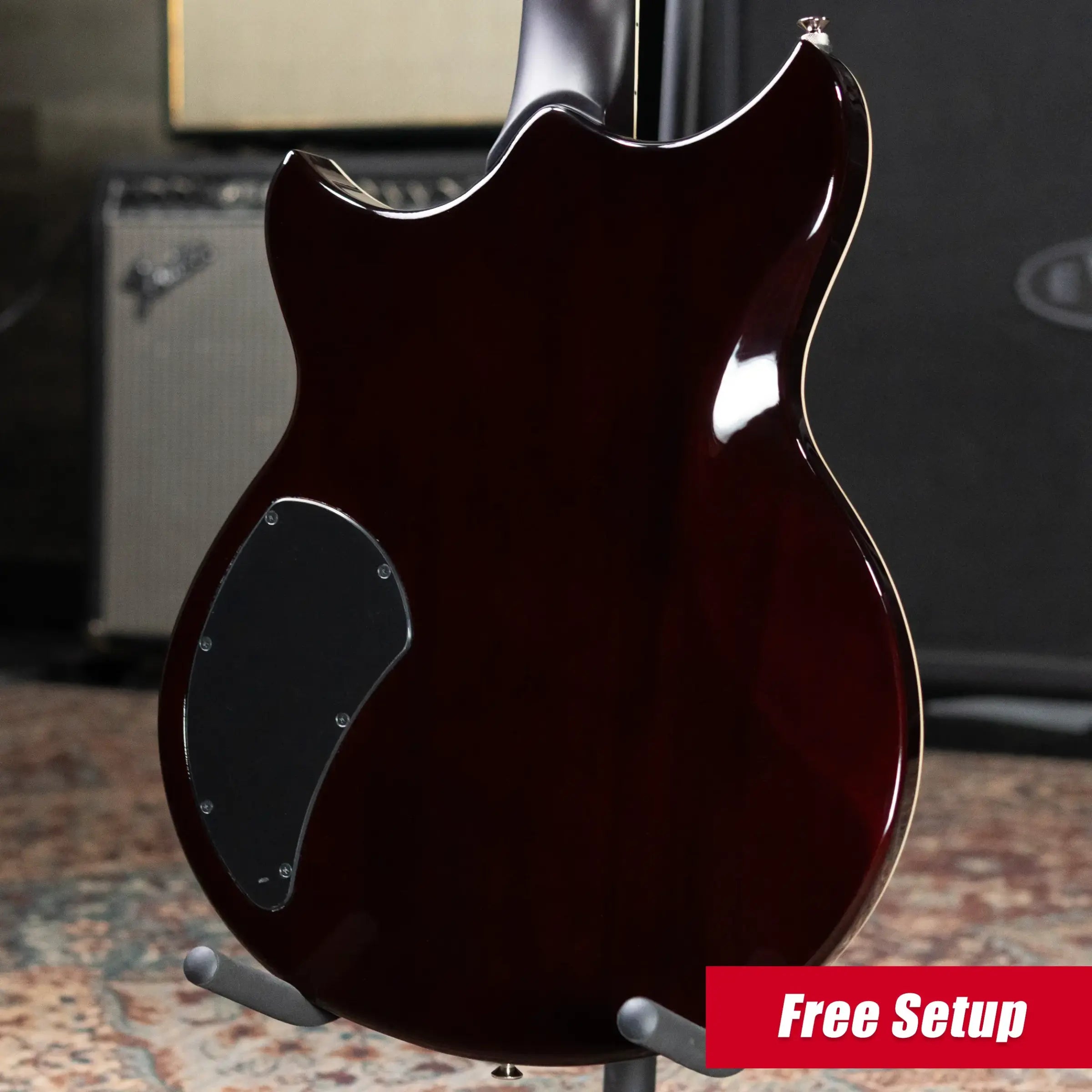

Yamaha Revstar RSS02T P-90 Electric Guitar - Fired Red with Gig Bag

-YOU ARE VIEWING PHOTOS OF THE ACTUAL GUITAR BEING SOLD!

This brand new 7.8 lb Yamaha will ship insured, fully set up, and inspected from Rapid City, SD.

Buy risk free with our 14 day - full refund, less shipping, return policy.  Check out our shop policies for more details.

The Yamaha Revstar Standard RSS02T brings together retro-inspired style and modern versatility in a package that feels uniquely its own. Influenced by classic café racers, its sleek finishes and custom racing tailpiece give the guitar a distinctive personality, while the chambered maple and mahogany body keeps things lightweight and incredibly resonant. From the first chord, the Revstar delivers a lively, responsive feel that encourages you to keep playing.

Equipped with a pair of custom-designed P90-style pickups, the RSS02T captures everything from sparkling cleans and articulate rhythm tones to gritty blues and raw rock-and-roll bite. The expanded 5-way switching introduces fresh textures and expressive in-between sounds, while Yamaha’s passive Focus Switch adds extra midrange punch and attitude when you need to push your tone a little harder. It’s a remarkably versatile instrument that can easily move between vintage-inspired sounds and modern applications without missing a beat.

Thoughtful design touches, including a carbon-reinforced three-piece mahogany neck and premium construction throughout, give the Revstar Standard a solid, dependable feel that’s built for serious playing. Whether you’re chasing jangly cleans, punchy rhythm tones, or thick, aggressive leads, the RSS02T offers an inspiring blend of character and flexibility. Available now at Haggerty’s Music.

Features / Specs

Highlights

• Series: Revstar Standard
• Orientation: Right-Hand
• Color: Fired Red

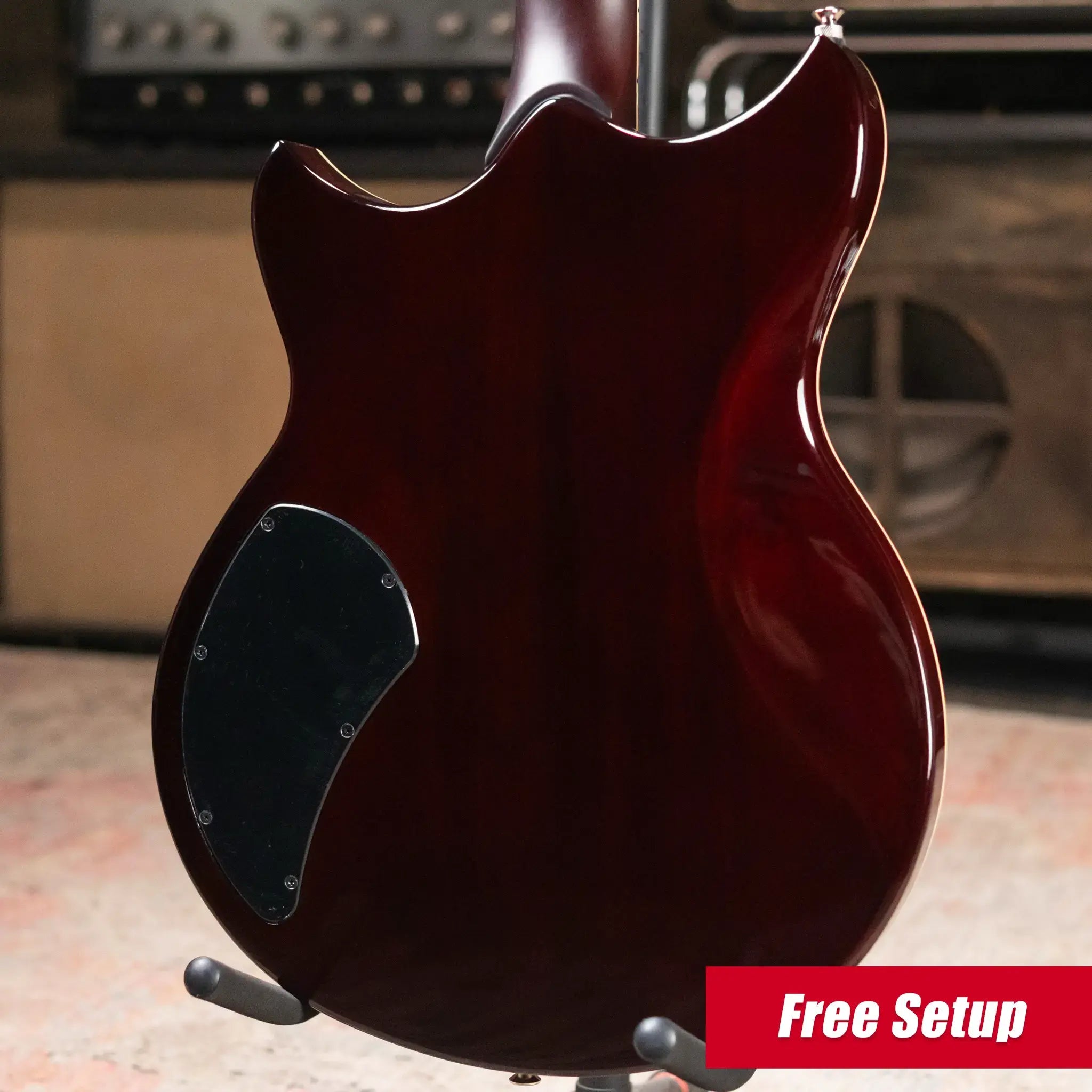

Body

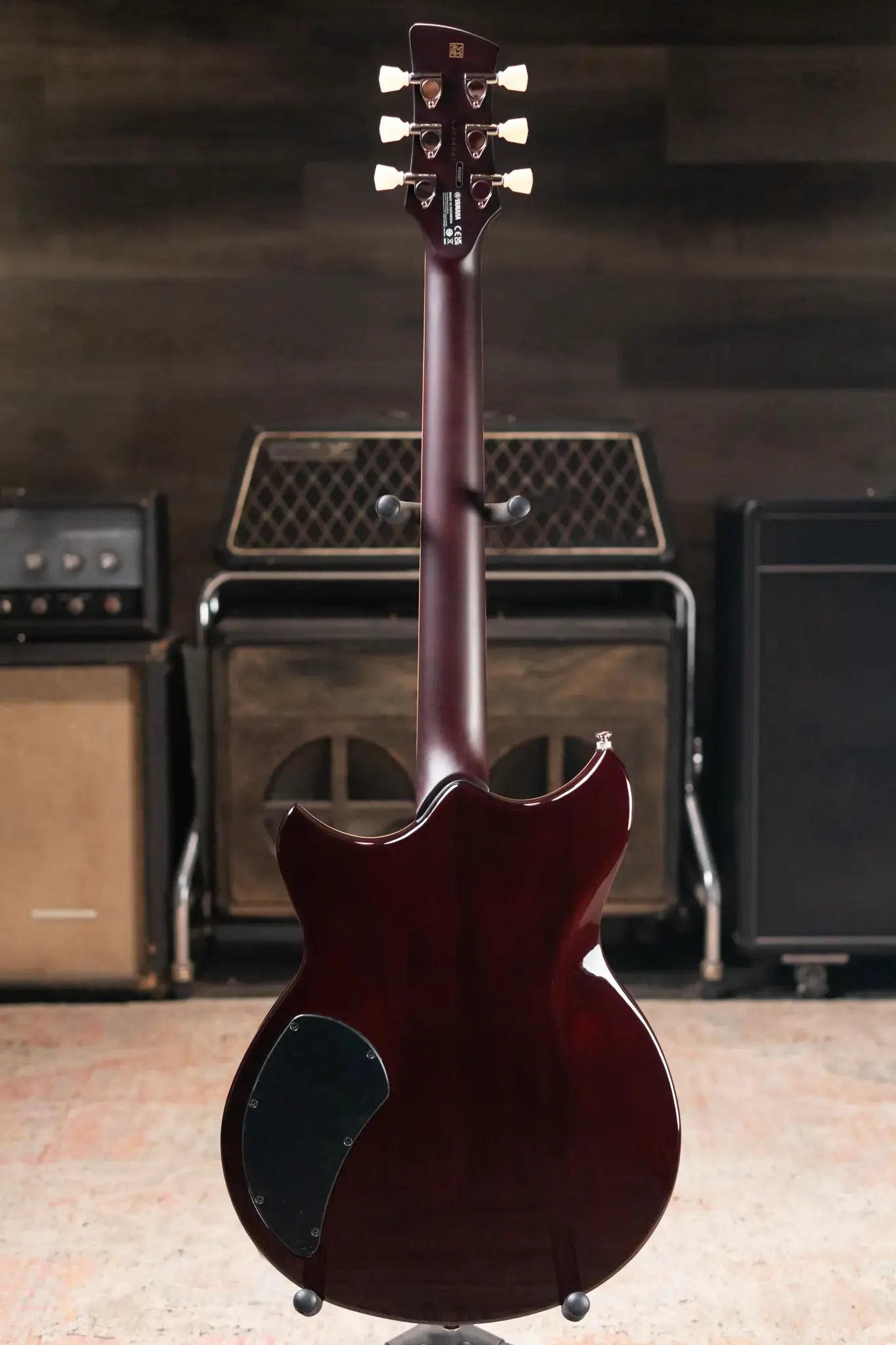

• Body Material: Chambered Mahogany
• Body Top Material: Maple
• Body Finish: Gloss Polyurethane
• Body Shape: Revstar Standard (Doublecut)
• Body Style: Solid (Chambered)

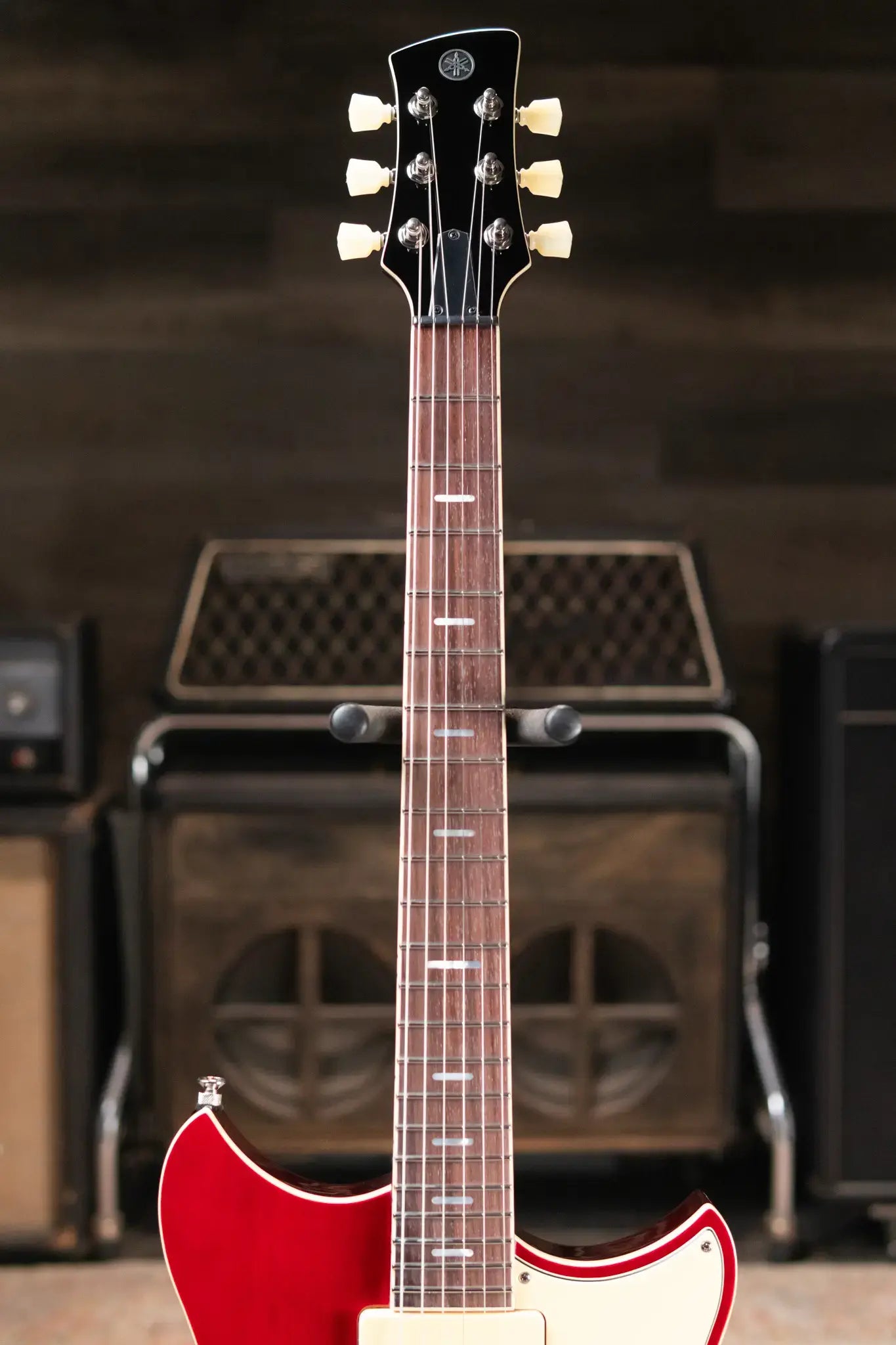

Neck

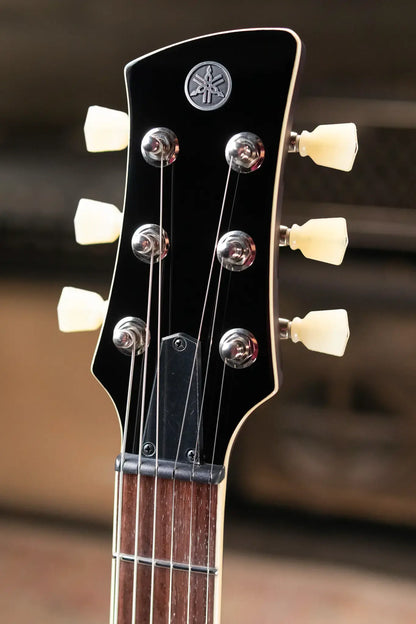

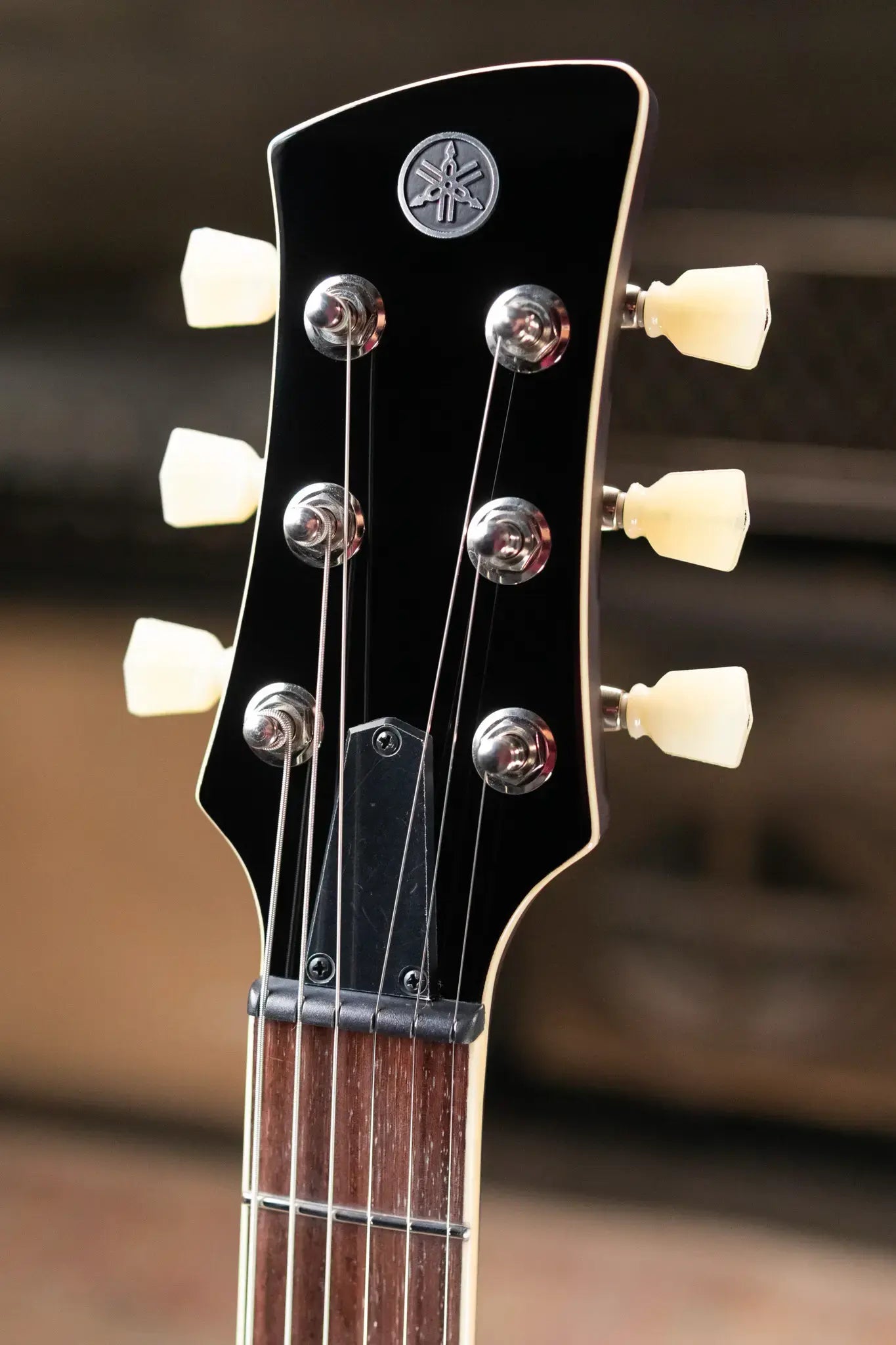

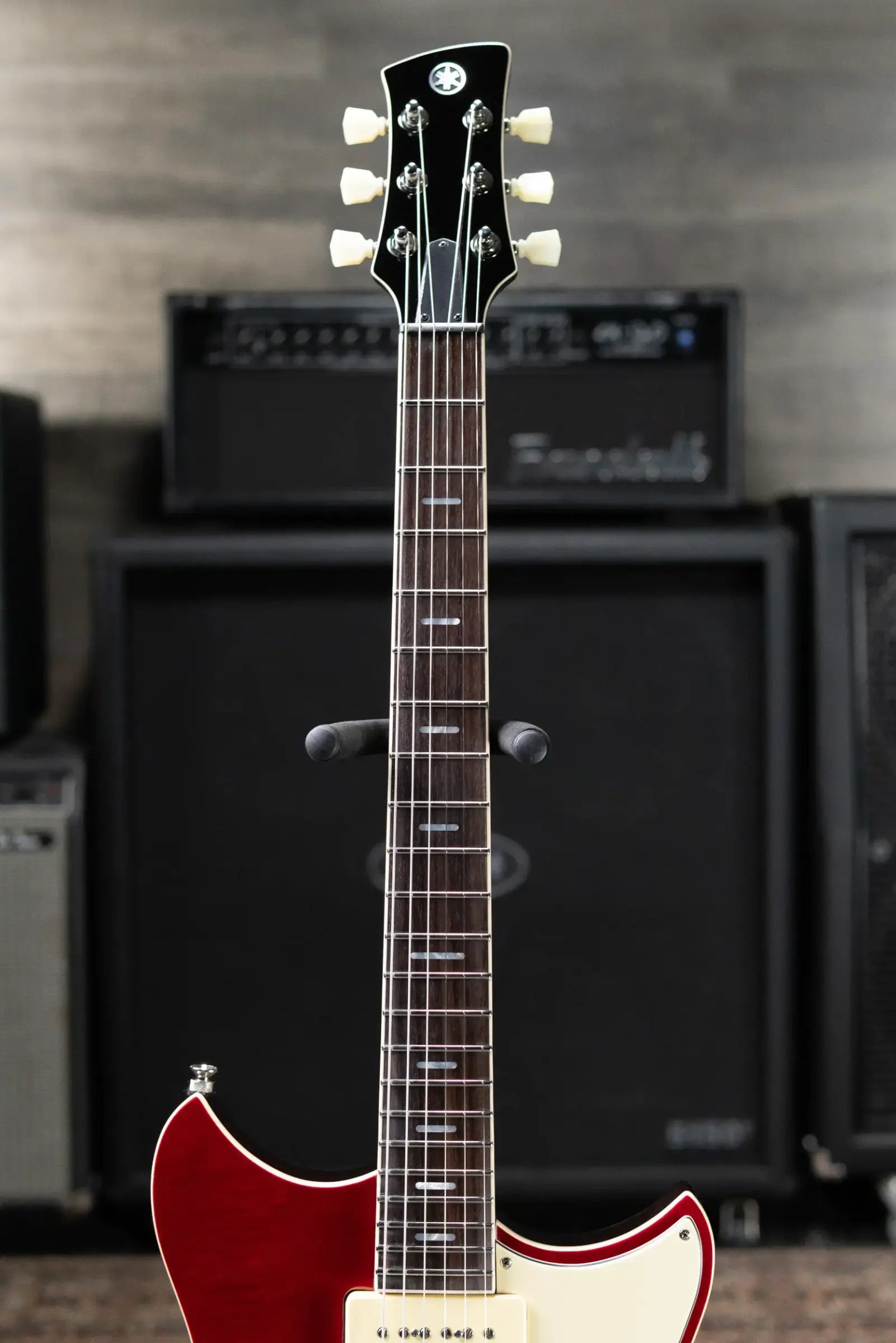

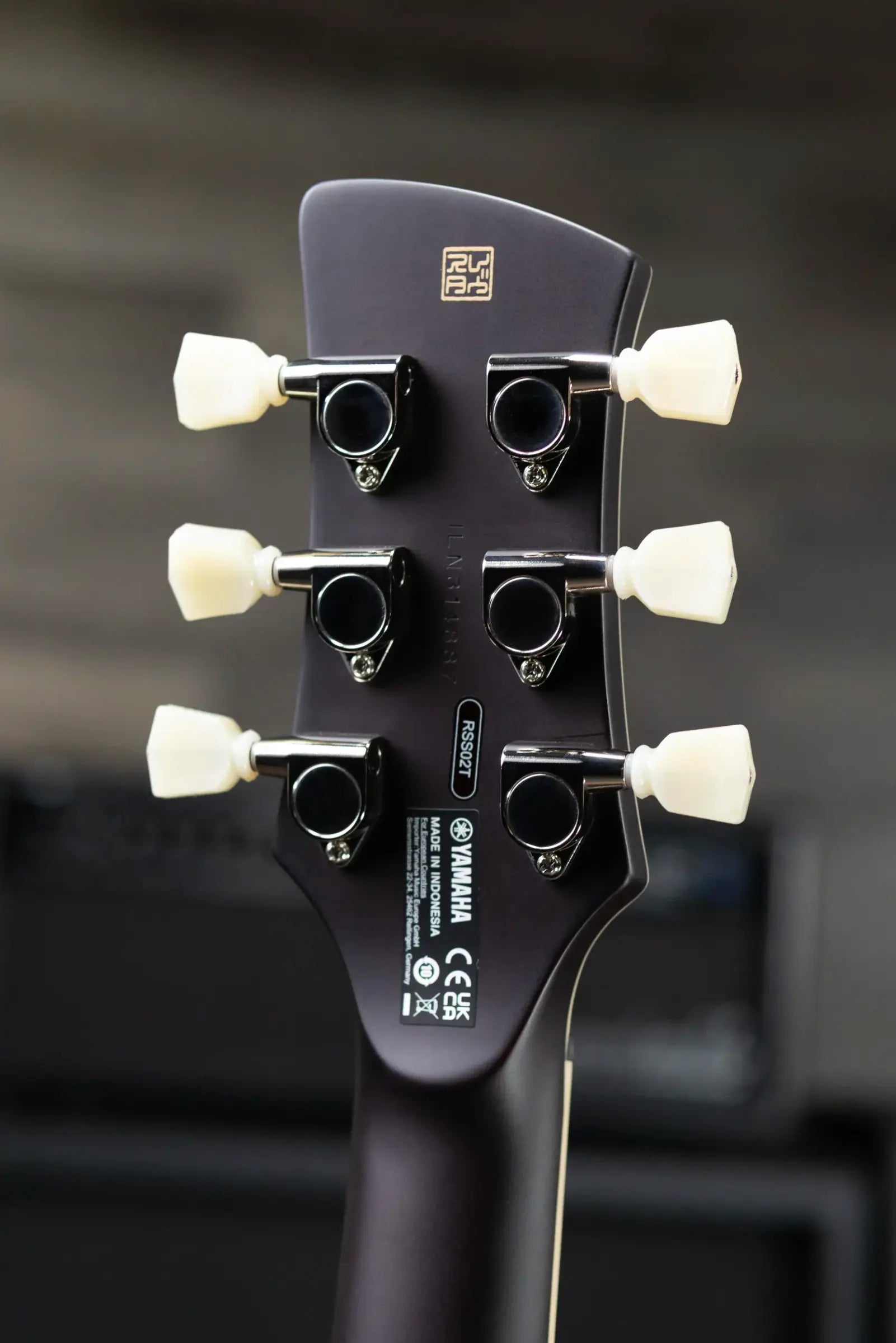

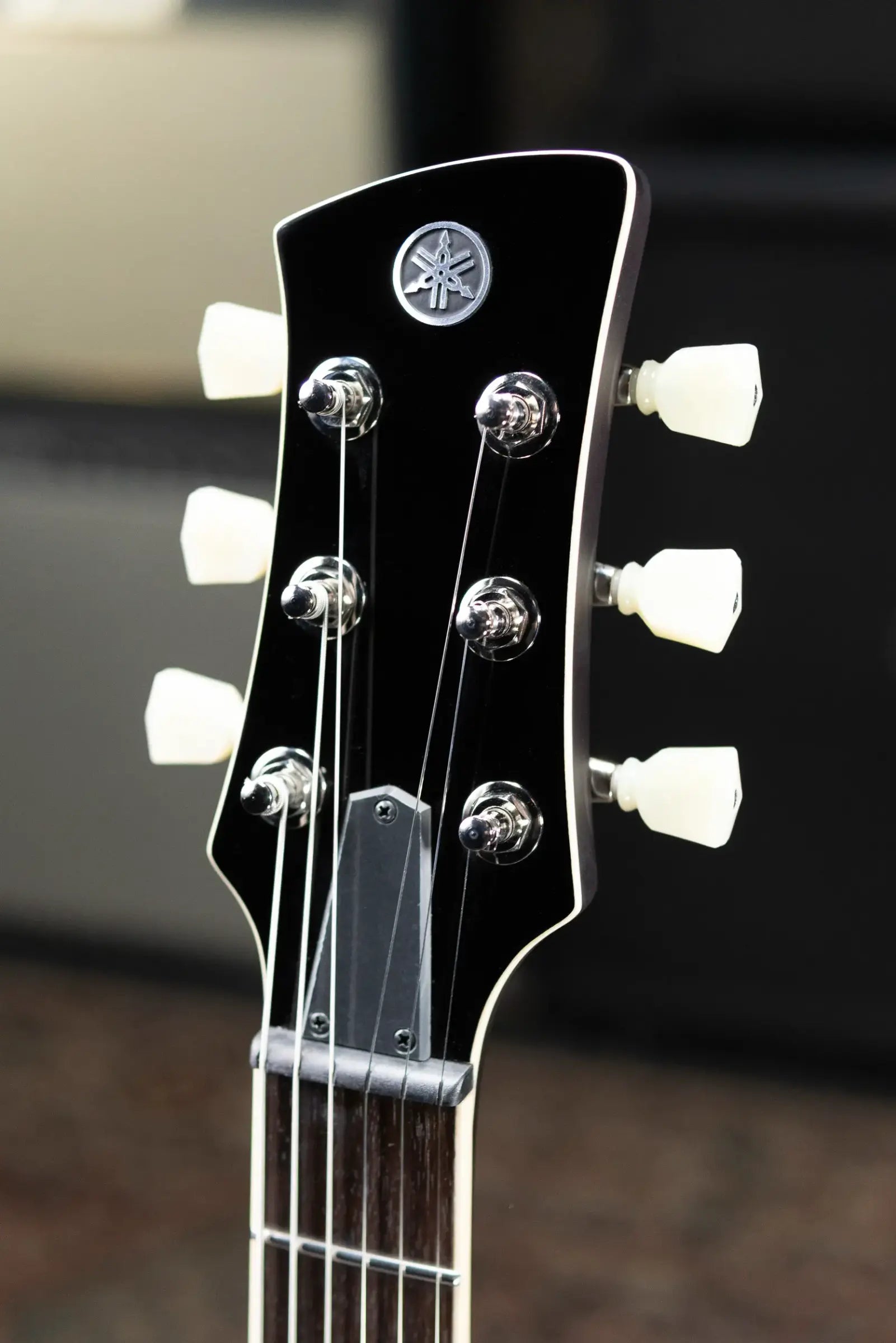

• Headstock Type: Revstar 3+3
• Neck Material: 3-Piece Mahogany with Carbon Reinforcement
• Neck Finish: Satin Polyurethane
• Neck Shape: Medium C (Standard Revstar Profile)
• Neck Depth: 0.869" at 1st Fret, 0.946" at 12th Fret
• Neck Construction: Set Neck

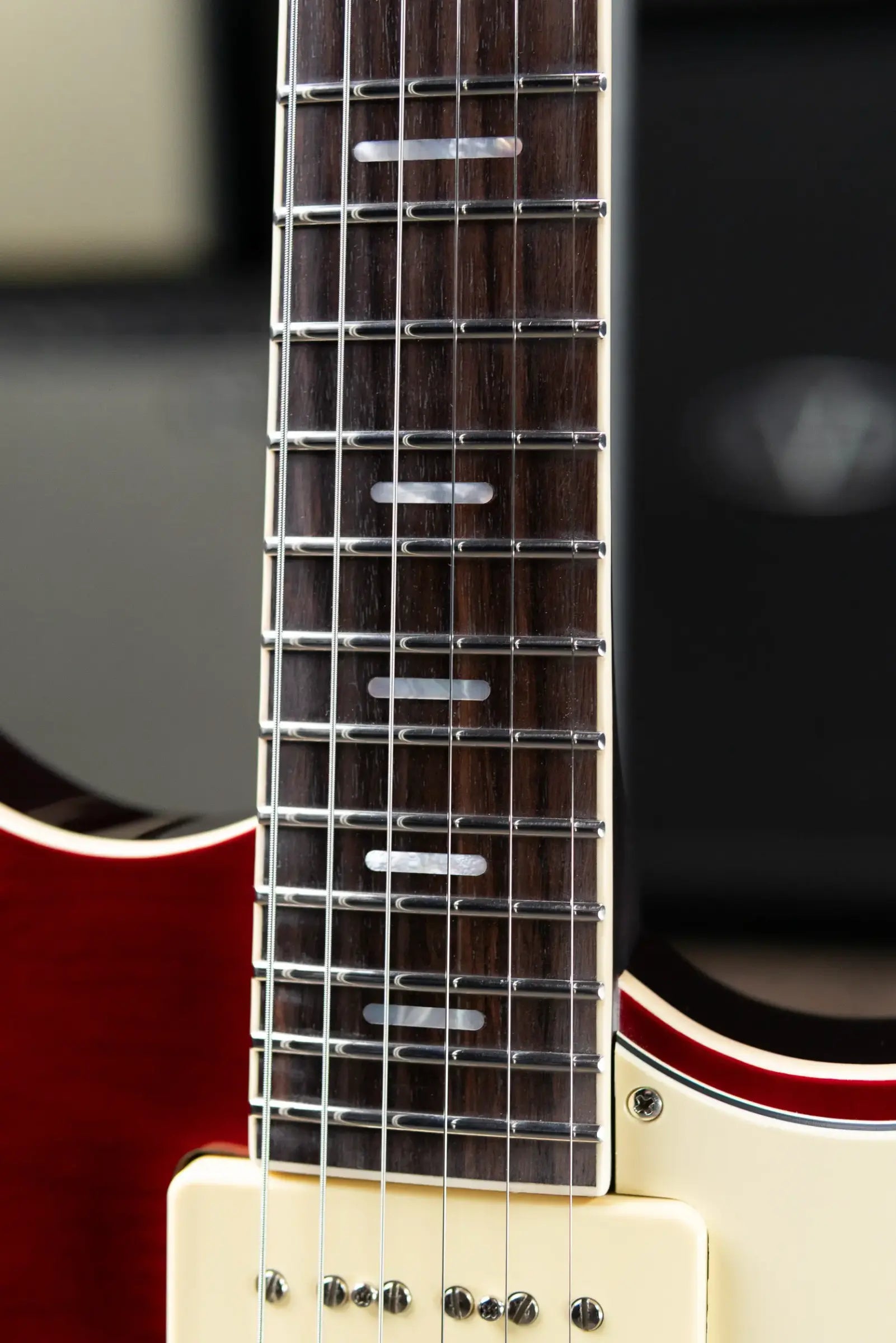

• Fingerboard Radius: 12"

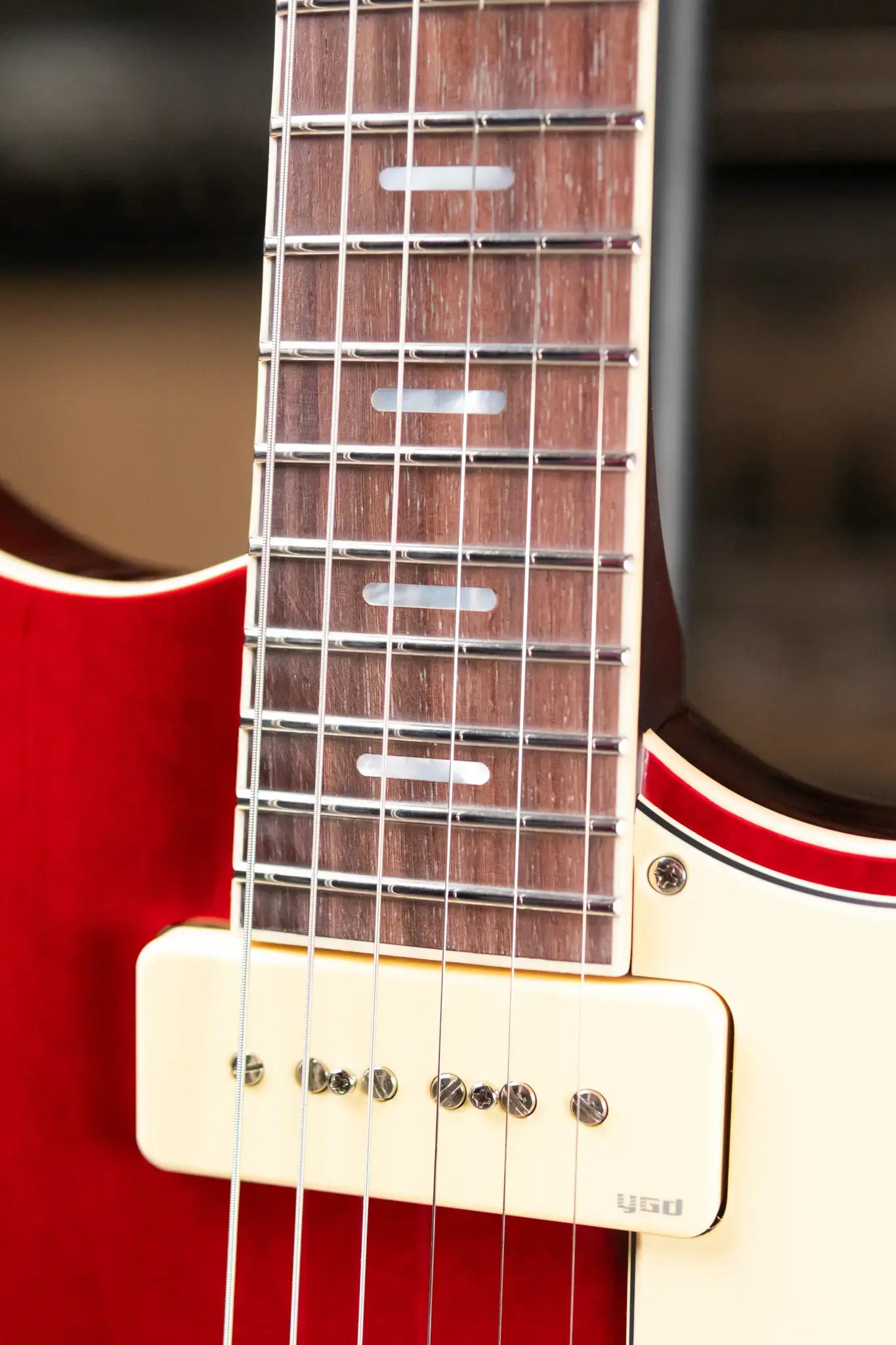

• Fingerboard Material: Rosewood
• Position Inlays: Pearloid Lines
• Side Dots: Black
• Number of Frets: 22
• Truss Rod Style: Adjustable, Dual Action
• Truss Rod Nut: Hex Nut
• Nut Material: PPS
• Nut Width: 1.649"
• Fret Size: Jumbo Stainless Steel
• Scale Length: 24.75"

Hardware

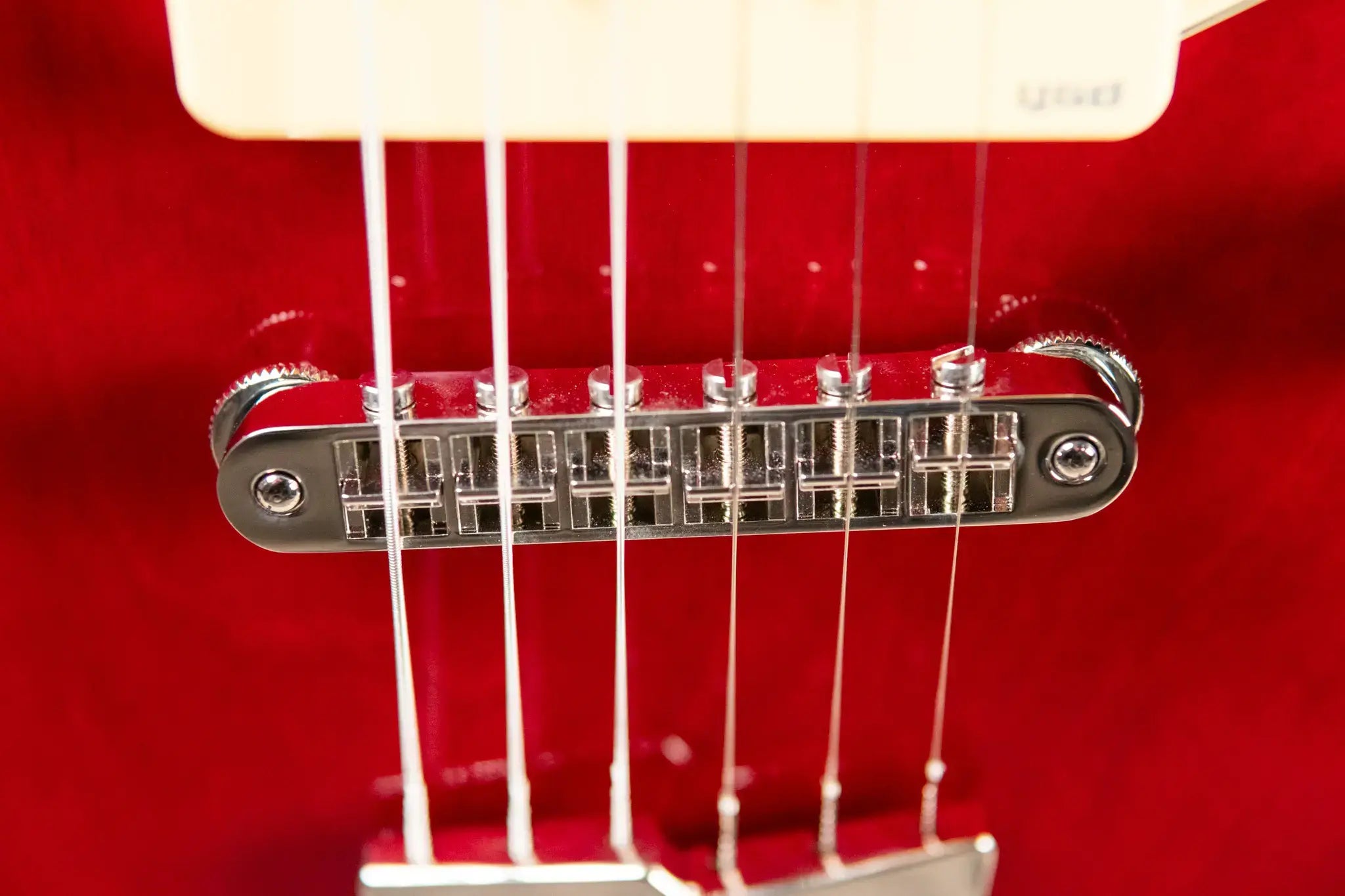

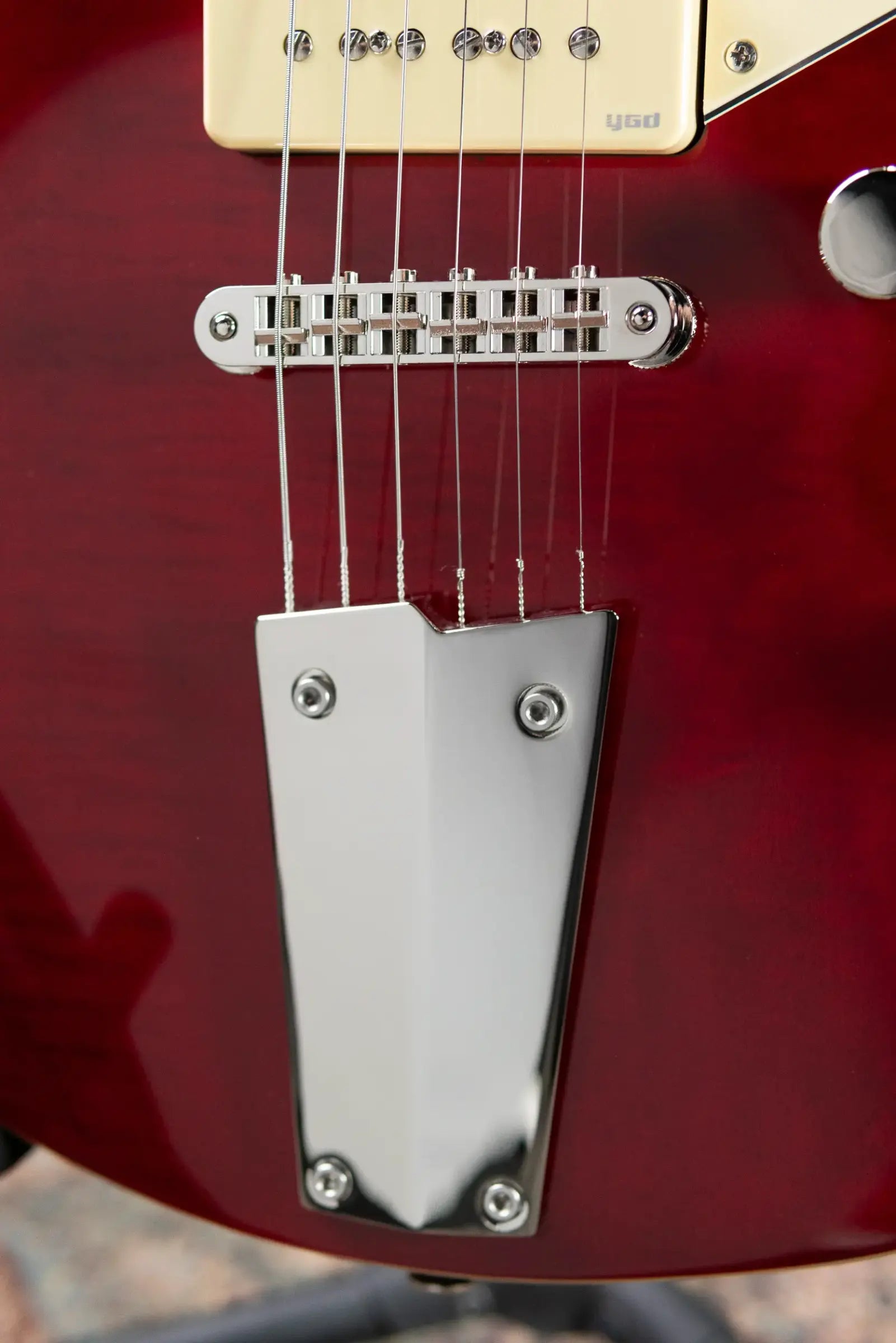

• Bridge: Tune-O-Matic

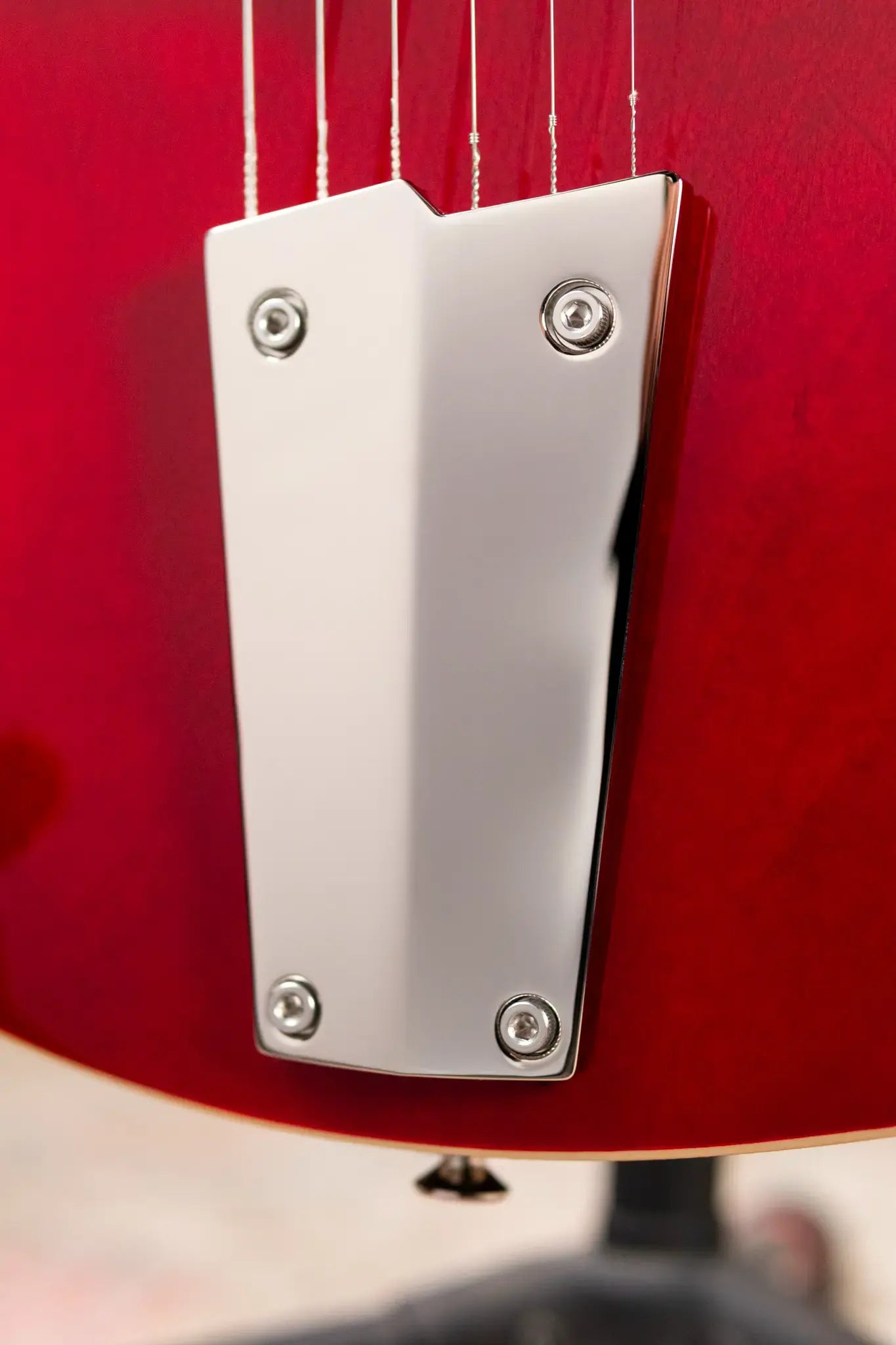

• Bridge Cover/Tail Piece: Racing Tailpiece
• Bridge Mounting: Standard Stud Mount
• Pickguard: 3-Ply Cream
• Pickup Covers: Cream
• Control Knobs: Knurled Metal
• Switch Tip: Black
• Hardware Finish: Nickel/Chrome

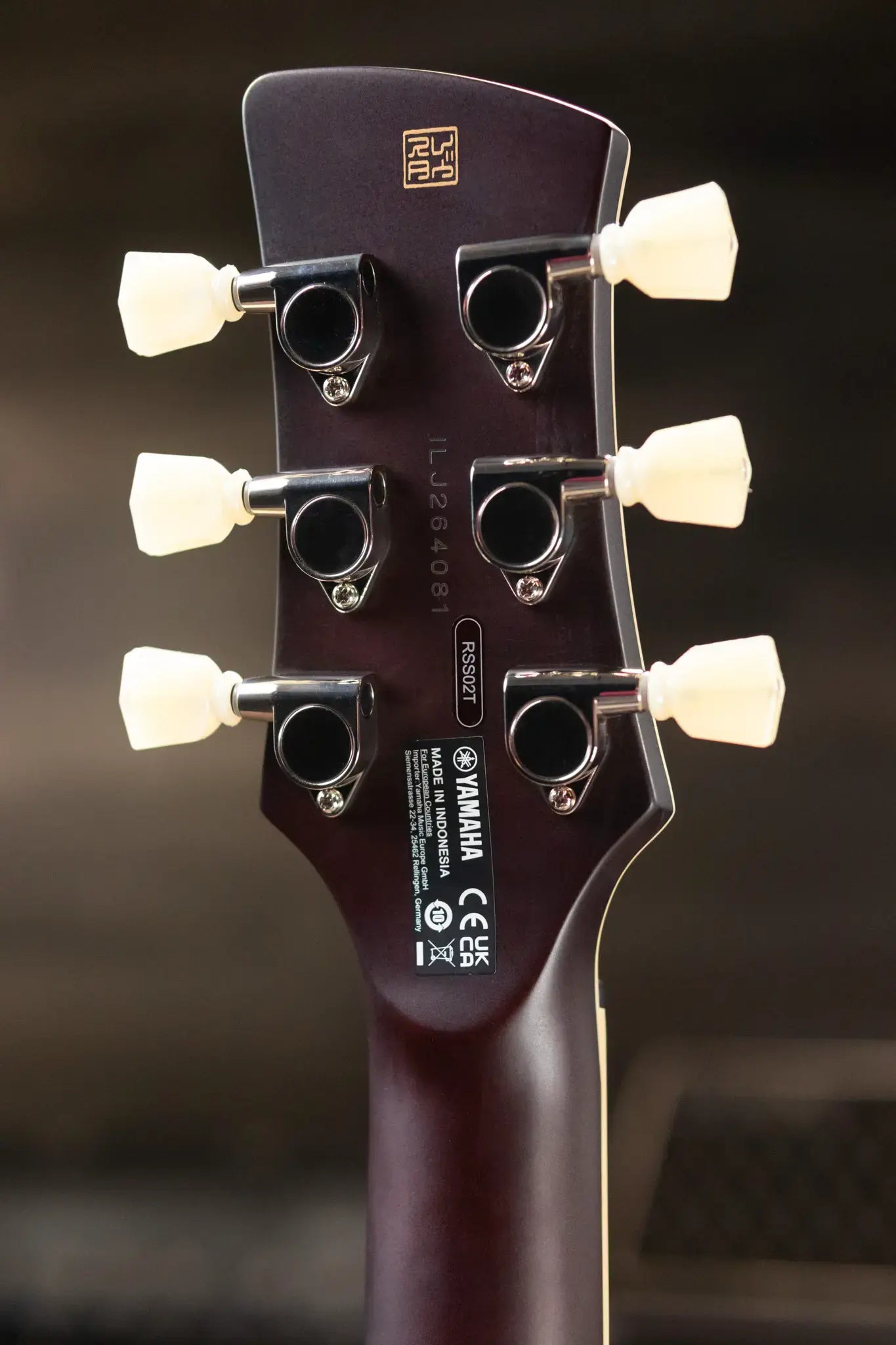

• Tuning Machines: Die-Cast
• String Trees: None
• Strings: Elixir Nanoweb Light (.010–.046)
• Tremolo Arm: None
• Neck Plate: None (Set Neck)
• Strap Buttons: Standard
• Output Jack: 1/4" Side-Mounted

Electronics

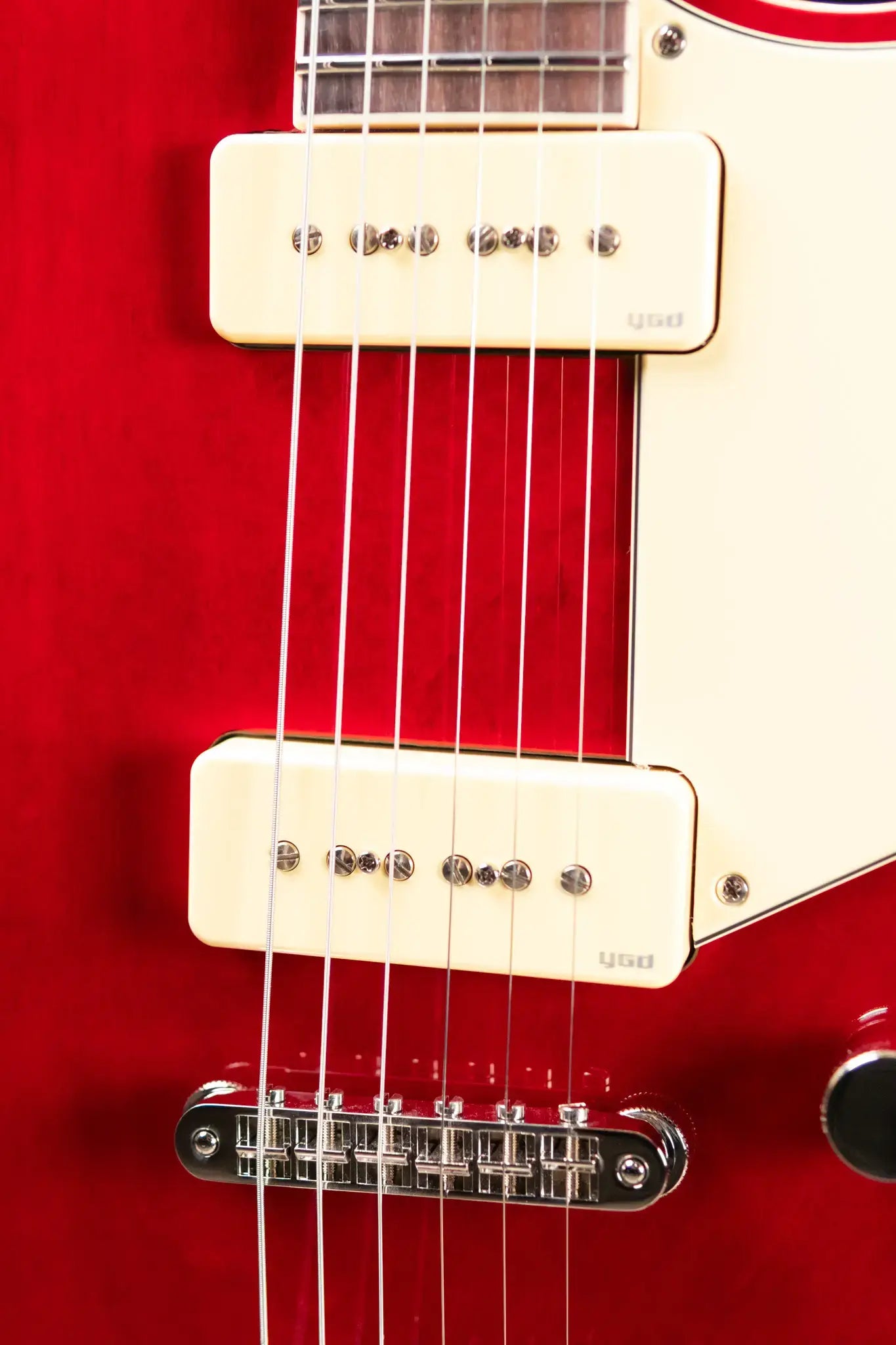

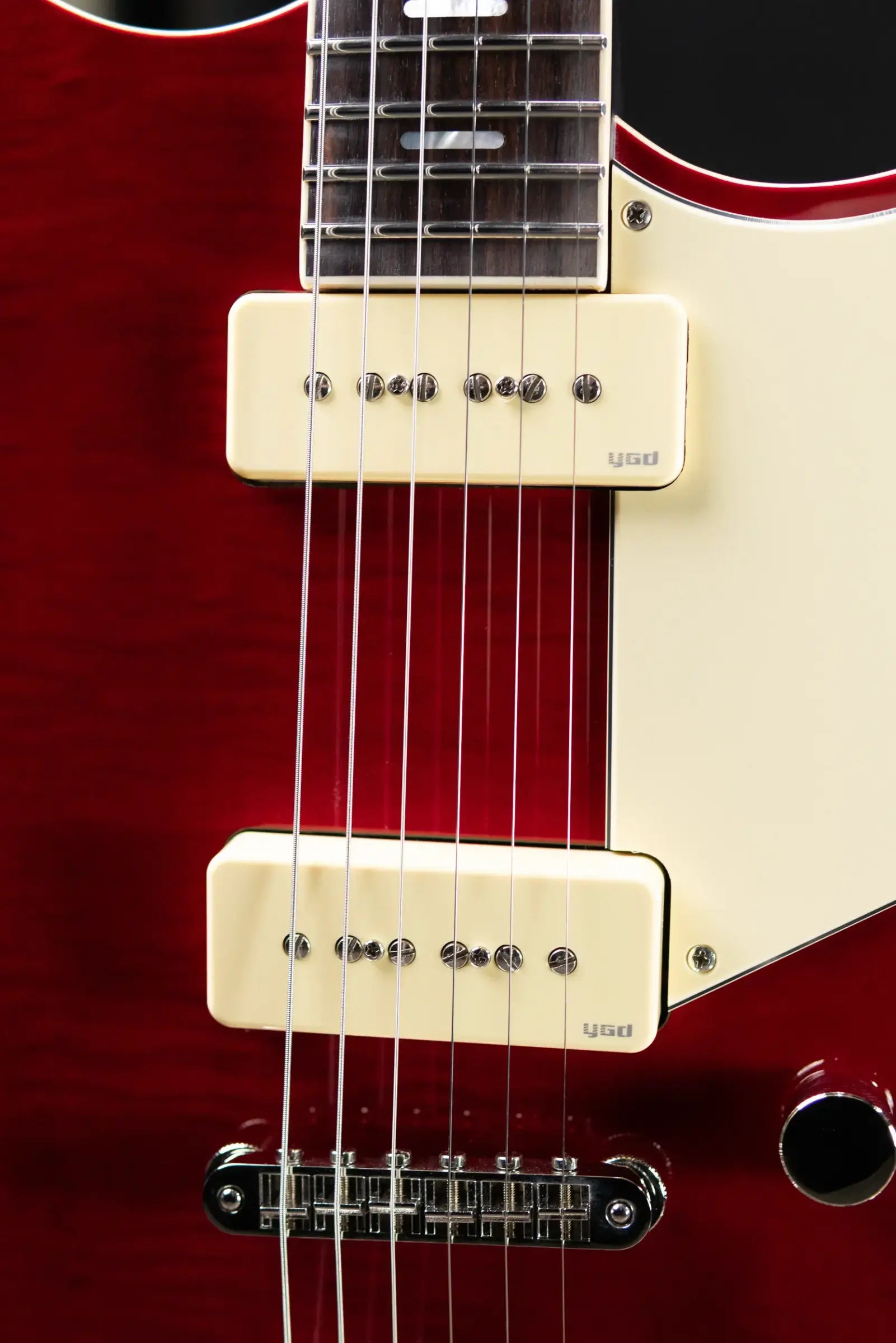

• Pickup Configuration: SS (P90 Set)
• Bridge Pickup: VP5b P90-Type Single-Coil (Alnico V)
• Neck Pickup: VP5n P90-Type Single-Coil (Alnico V)

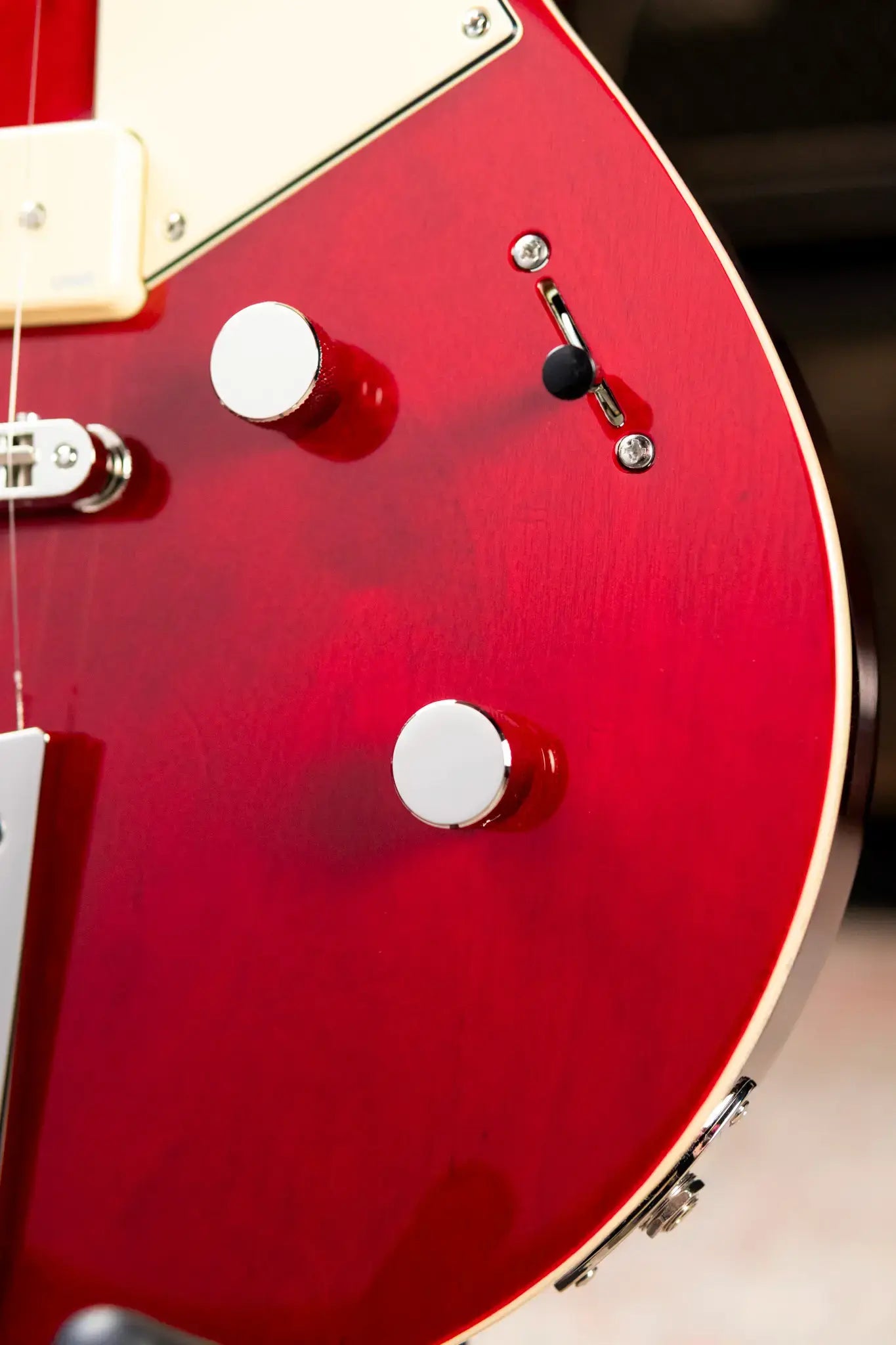

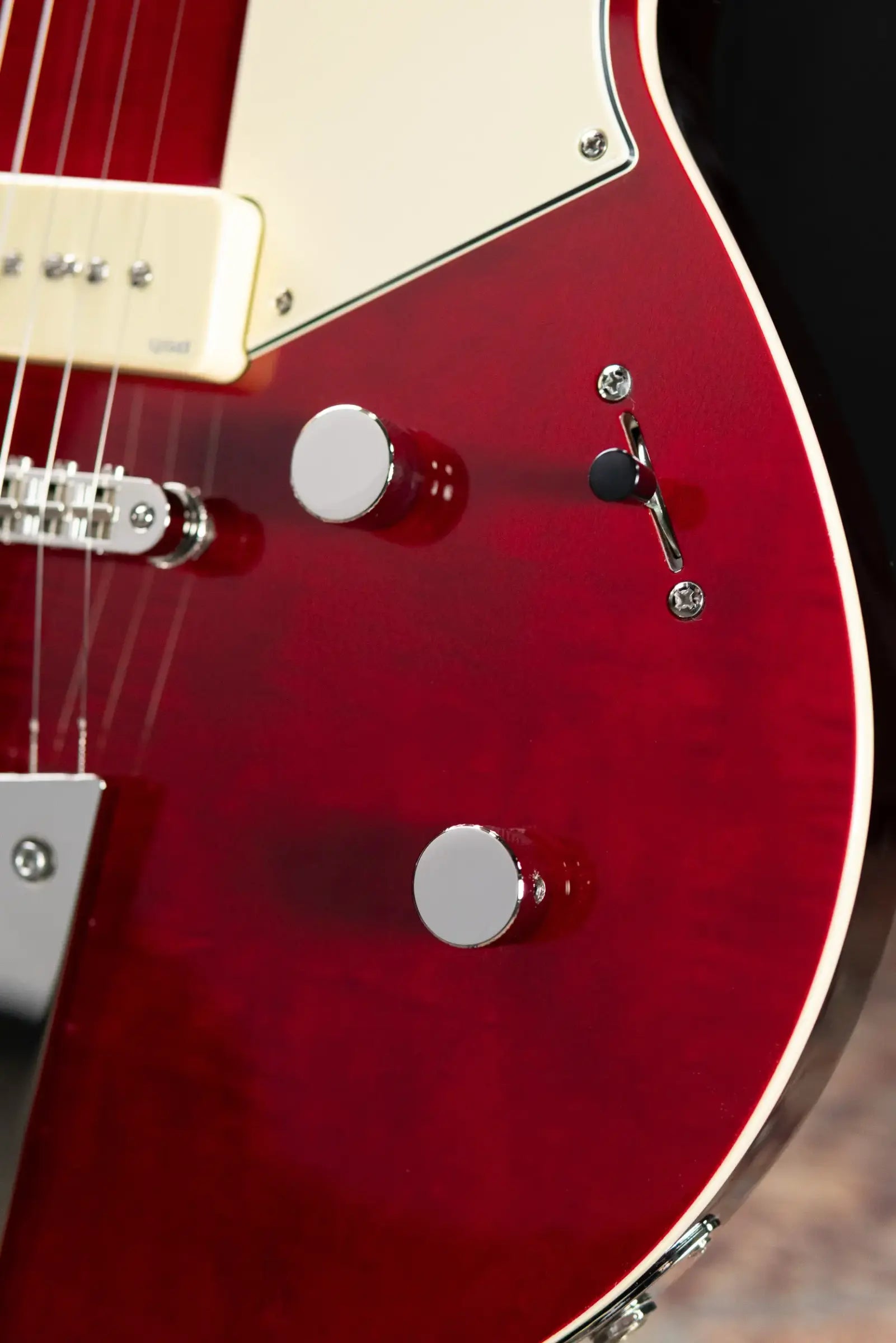

• Controls: Master Volume, Master Tone (Push/Pull Focus Switch)
• Switching: 5-Position Lever Switch
• Auxiliary Switching: Focus Switch (Passive Boost)

Miscellaneous

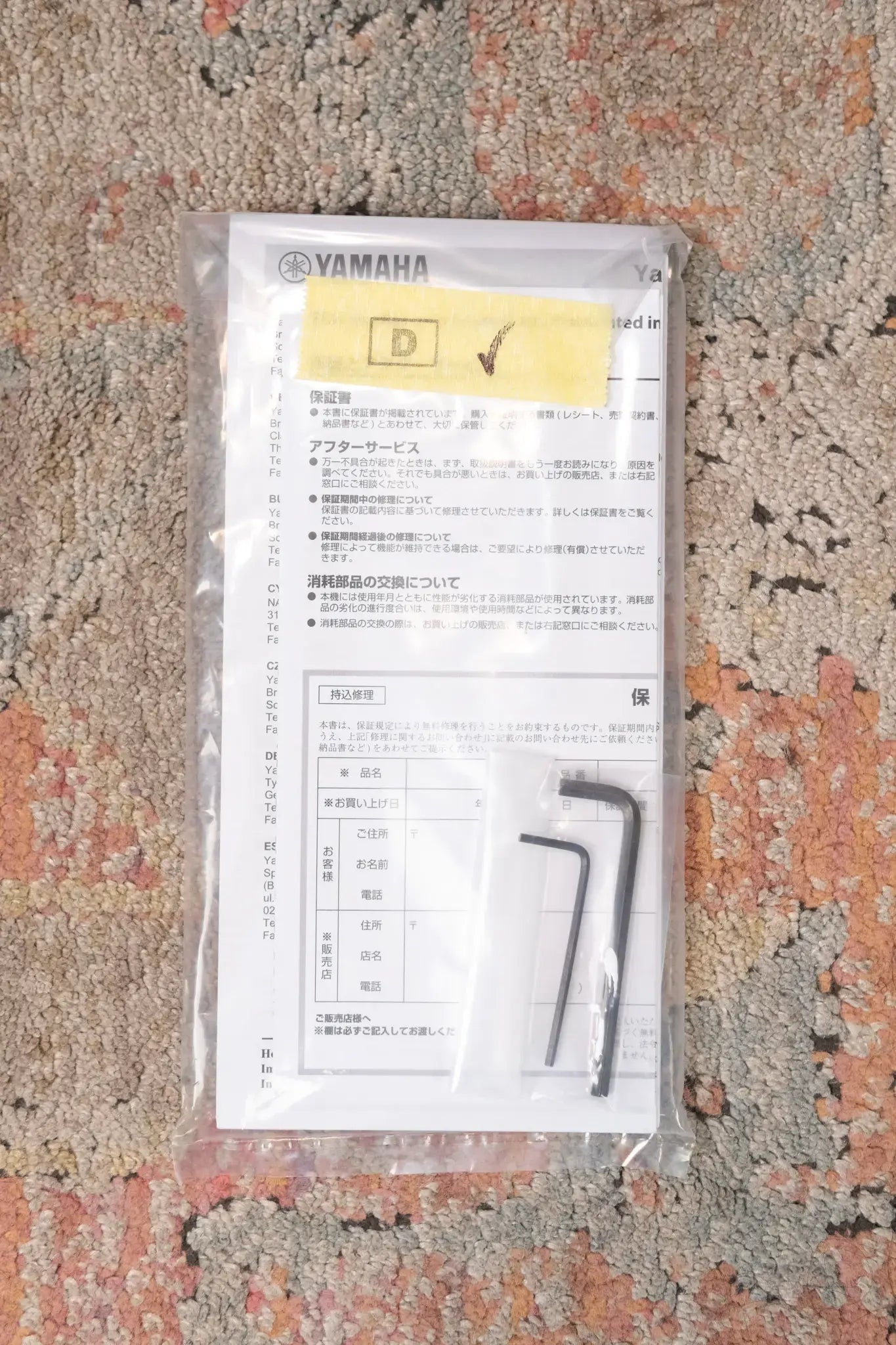

• Accessories: None

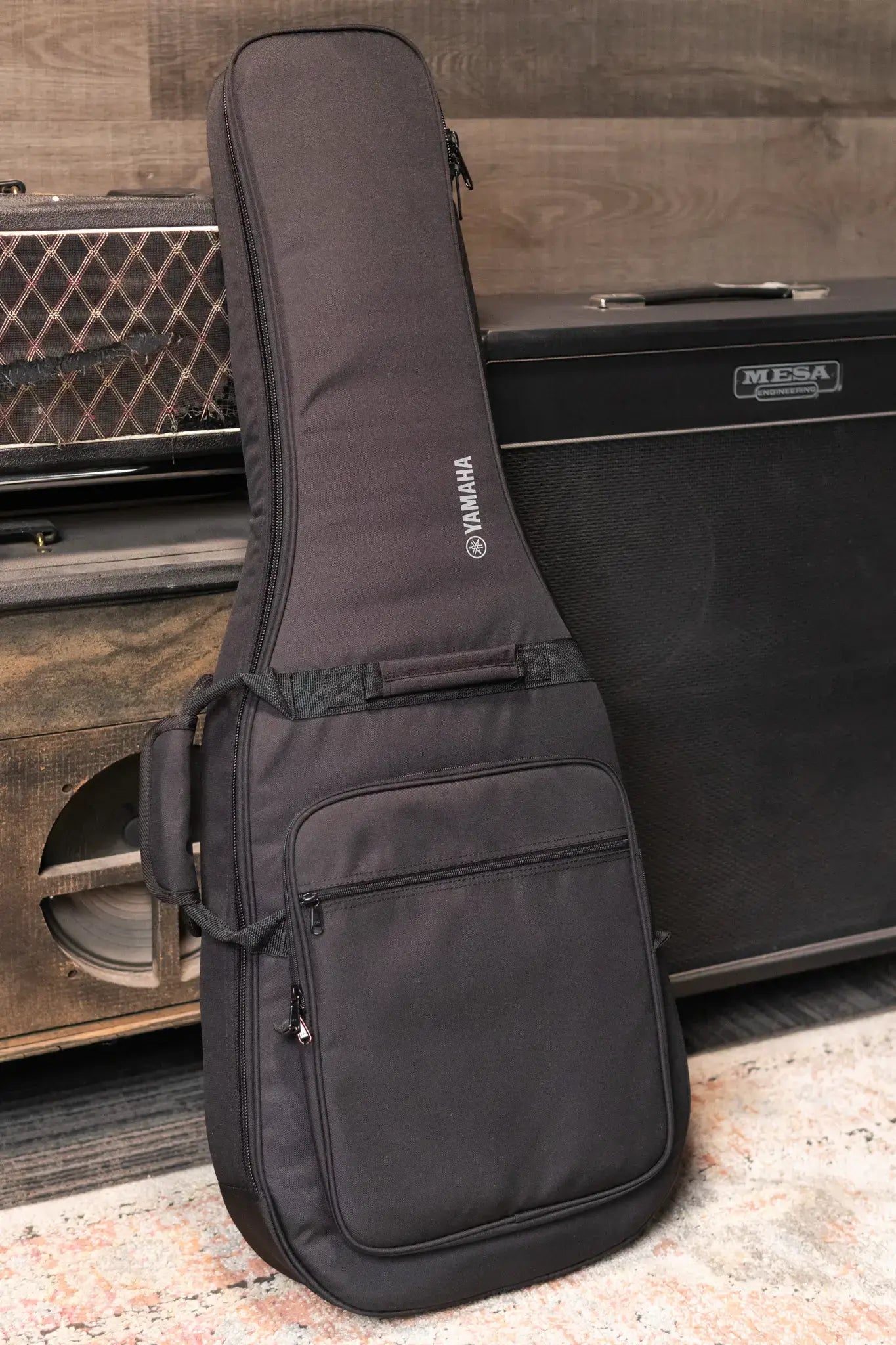

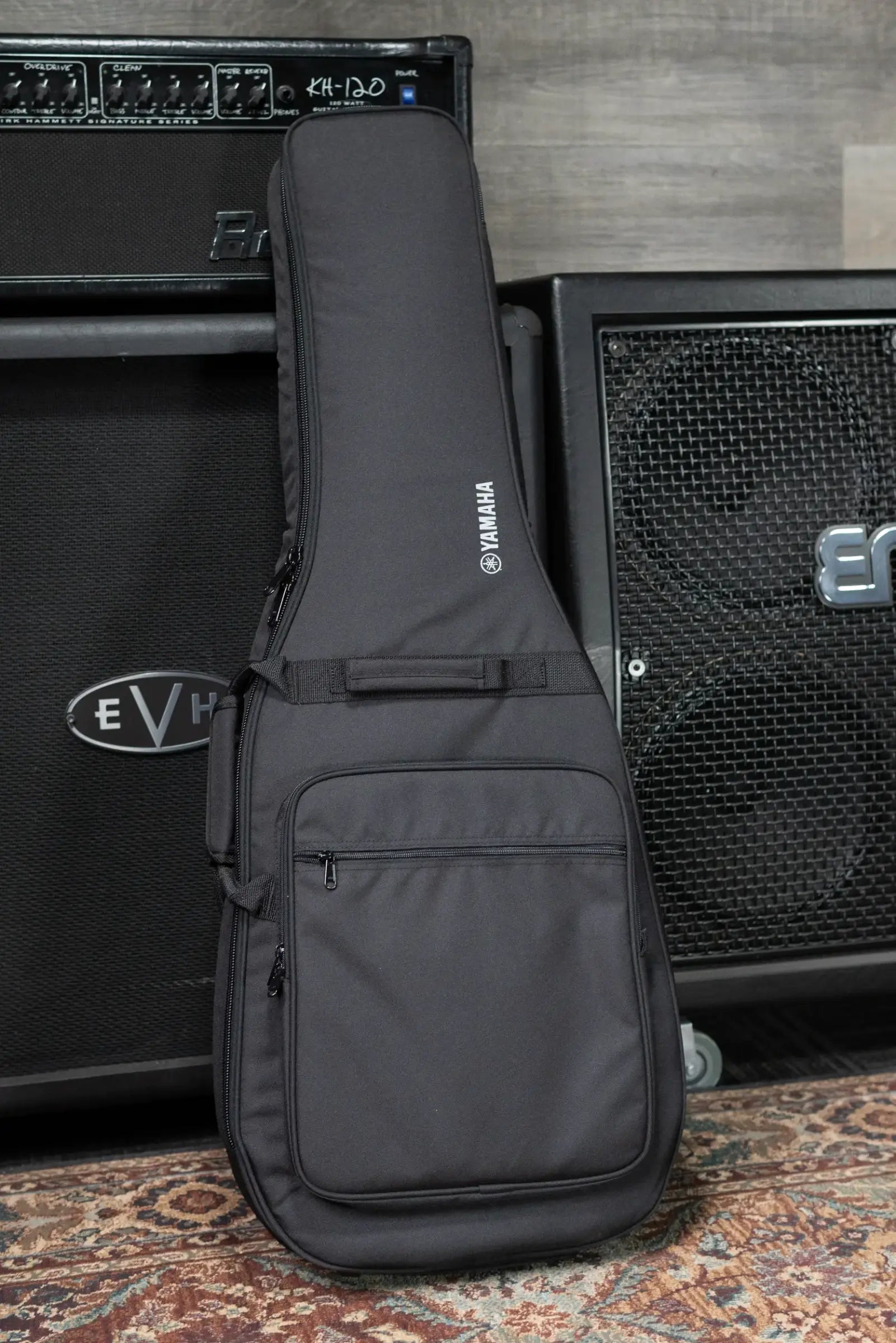

• Case/Gig Bag: Yamaha Gig Bag
• Serial Number: ILN314887
• Manufacture Date: 2026
