Roland SPD-SX Pro Sampling Pad - Open Box

This open box SPD-SX Pro will ship insured and inspected from Rapid City, SD.

Buy risk free with our 14 day - full refund, less shipping, return policy. Check out our shop policies for more details.

The SPD-SX PRO is the ultimate sampling pad for the most demanding gigs. With years of road testing and extensive user feedback from the SPD-S and SPD-SX, the top-tier SPD-SX PRO raises the bar again. Harnessing the advanced sample pad technology of its predecessors, the SPD-SX PRO boasts an array of requested professional enhancements and is built for life on the road. Illuminate dark stages with a large color display and customizable multi-color trigger lights. Expand your performance setup with more audio outputs, additional trigger inputs, and hi-hat and FX expression pedal control. And go further with a massive 32 GB memory, 48 kHz audio playback, increased pad sensitivity without crosstalk, and a dedicated SPD-SX PRO App for easier kit editing.

SPECIFICATIONS

• Built-in pads: 9 (with PAD LED, Vertical LED)
• * Four external trigger inputs are provided, allowing you to connect up to eight pads with Y cable.
• Maximum Polyphony: 32 voices (included click voices)
• Number of Recordable Wave Data: 20,000

*Including preload data

• Internal storage: Size: 32 GB

*Including preload data

• Sampling Time
• Sampling from AUDIO IN : 60 minutes per sample
• Resampling : 10 minutes per sample
• Data Format: 16-bit linear
• Sampling Frequency: 48 kHz

Import Format

• WAV, AIFF, MP3
• Kits
• 200
• Preload wave
• Factory preloaded samples: 1,550 or more
• Setlist: 32 (32 steps per SET LIST)

Kit Effects

• Layer Equalizer : each pad (Layer A/B independently)
• Layer Transient : each pad (Layer A/B independently)
• Multi-Effects (53 types) : 4 systems
• Side Chain Compressor : 1 system

System Effects

• Master Effects (53 types)
• Master Compressor
• Master Equalizer
• Number of USB Audio Record/Playback Channels
• Sampling Rate (Original): 48 kHz
• Sampling Rate (with Sampling rate converter): 96 kHz, 44.1 kHz
• Record: 8 channels
• Playback: 12 channels
• Display: Graphic color LCD 4.3 inch

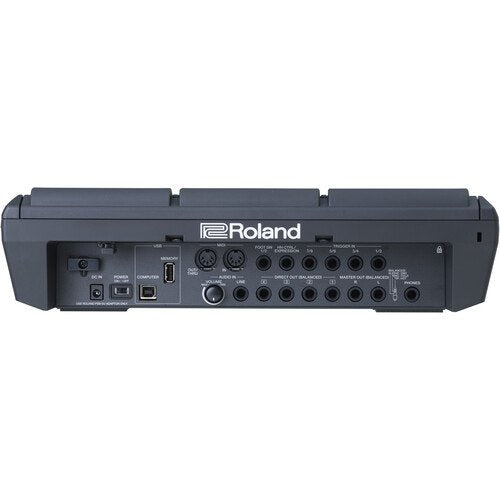

Connectors

• PHONES jack : Stereo 1/4-inch phone type
• MASTER OUT (L, R)jacks (BALANCED) : 1/4-inch TRS phone type
• DIRECT OUT jack x 4 (BALANCED) : 1/4-inch TRS phone type
• AUDIO IN jack : Stereo 1/4-inch phone type (with Volume control)
• TRIG IN jack x 4 (1/2, 3/4, 5/6, 7/8) : 1/4-inch TRS phone type
• FOOT SW jack x 1 (1/2) : 1/4-inch TRS phone type
• HH CTRL/EXPRESSION jack x 1 : 1/4-inch TRS phone type
• MIDI (IN, OUT/THRU) connectors
• USB COMPUTER port : USB B (High-Speed USB, USB-AUDIO, USB-MIDI, App)
• USB MEMORY port : USB A (High-Speed USB, Backup Save/Load, Sample Import/Export)
• DC IN jack
• Power Supply: DC 12V (AC Adaptor)
• Current Draw: 1,500 mA

Accessories

• Quick Start
• Leaflet "Read Me First"
• Leaflet "USING THE UNIT SAFELY/IMPORTANT NOTES"
• AC Adaptor

Options (sold separately)

• Pads (PD series, PDX series, BT-1)
• Cymbals (CY series)
• Hi-Hat (VH-10, VH-11)
• Kick Triggers (KD series, KT series)
• Pad Stand (PDS-20, PDS-10)
• All-Purpose Clamp (APC-33)
• Acoustic Drum Trigger (RT-30K, RT-30HR, RT-30H)
• Hi-Hat Pedal(FD-8, FD-9, VH-10, HV-11)
• Expression Pedal(BOSS EV-30)
• Pedal Switch(DP-2)
• Foot Switch (BOSS FS-5U, FS-6, FS-7)
• Y cable (PCS-31L)
• USB Flash Memory

SIZE AND WEIGHT

• Width: 14-3/16 inches
• Depth: 13-1/16 inches
• Height: 3-11/16 inches
• Weight: 6 lbs 10 oz (excluding AC Adaptor)
