MXR Micro Flanger Pedal - Used

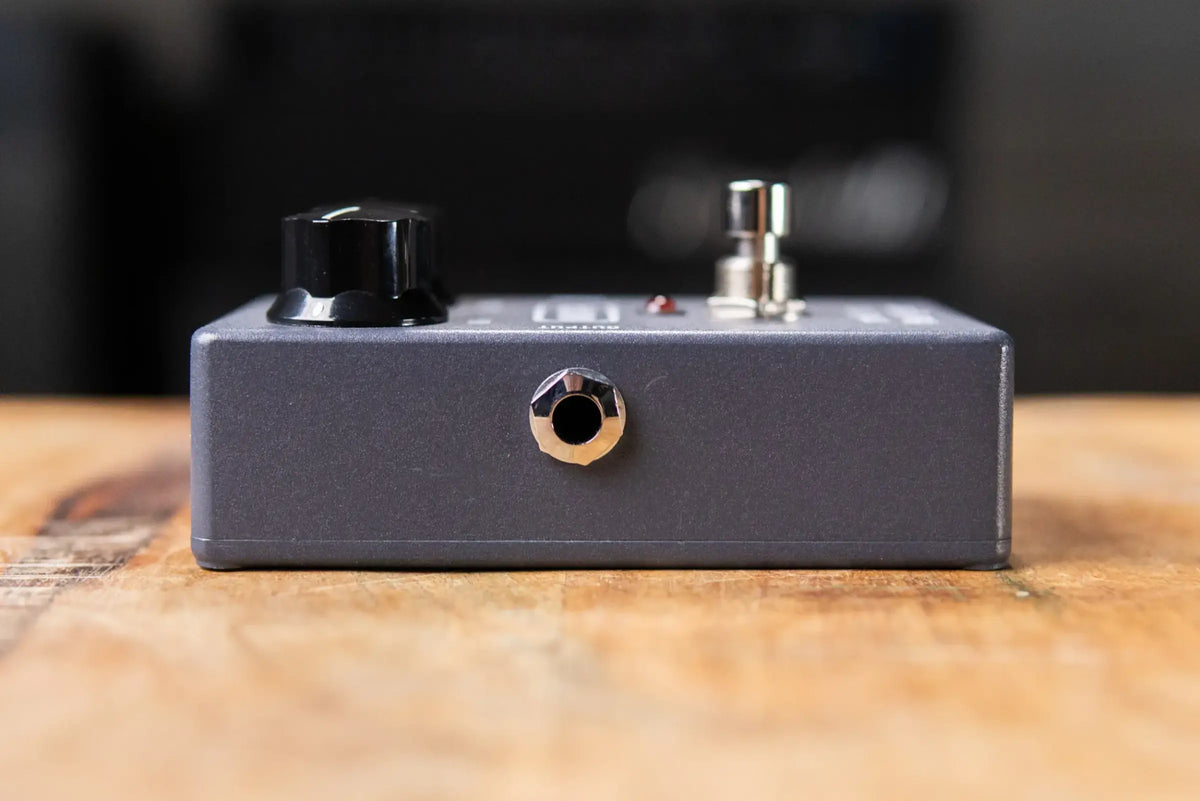

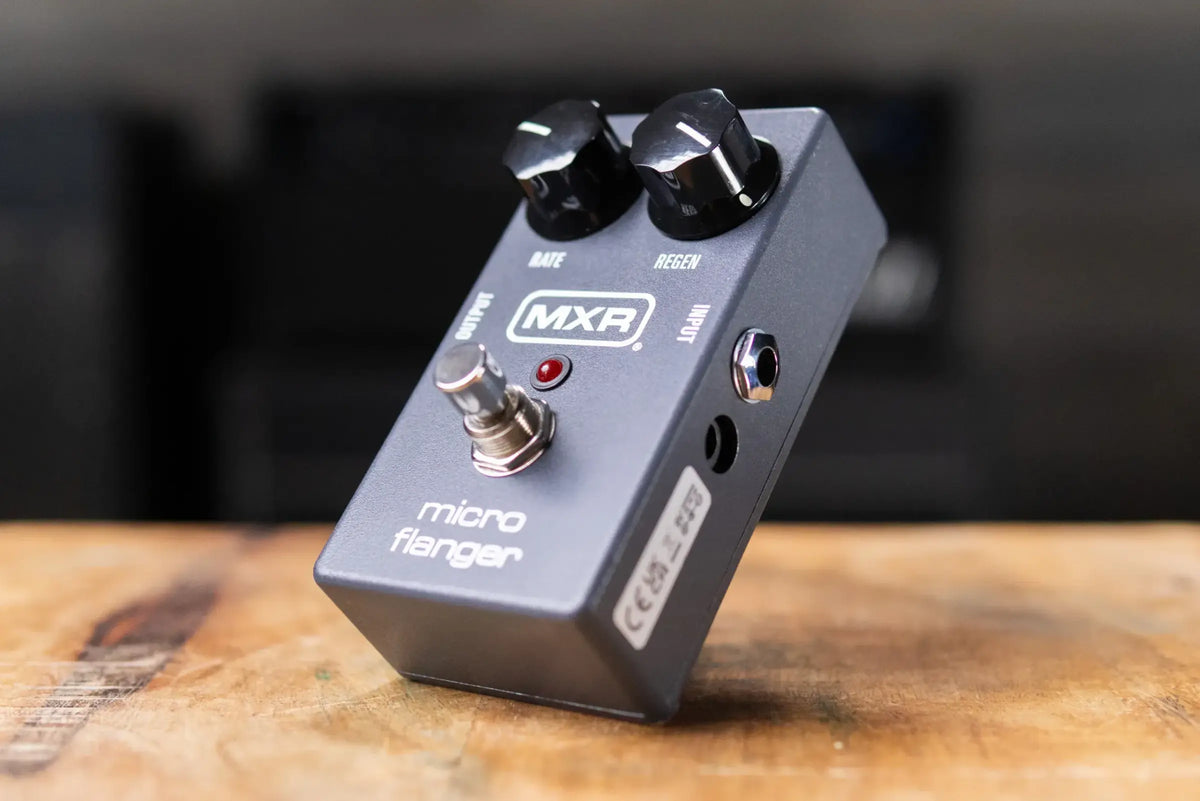

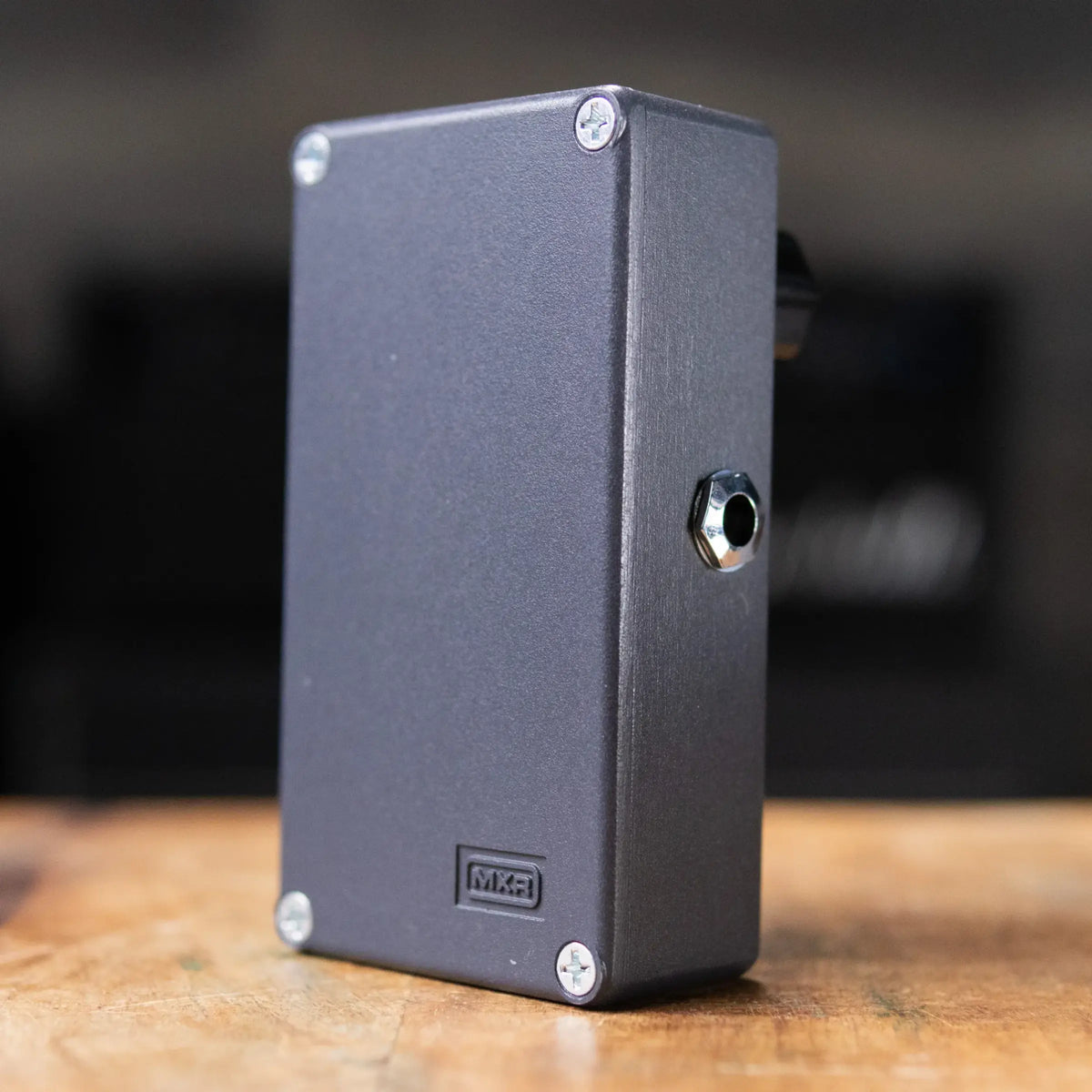

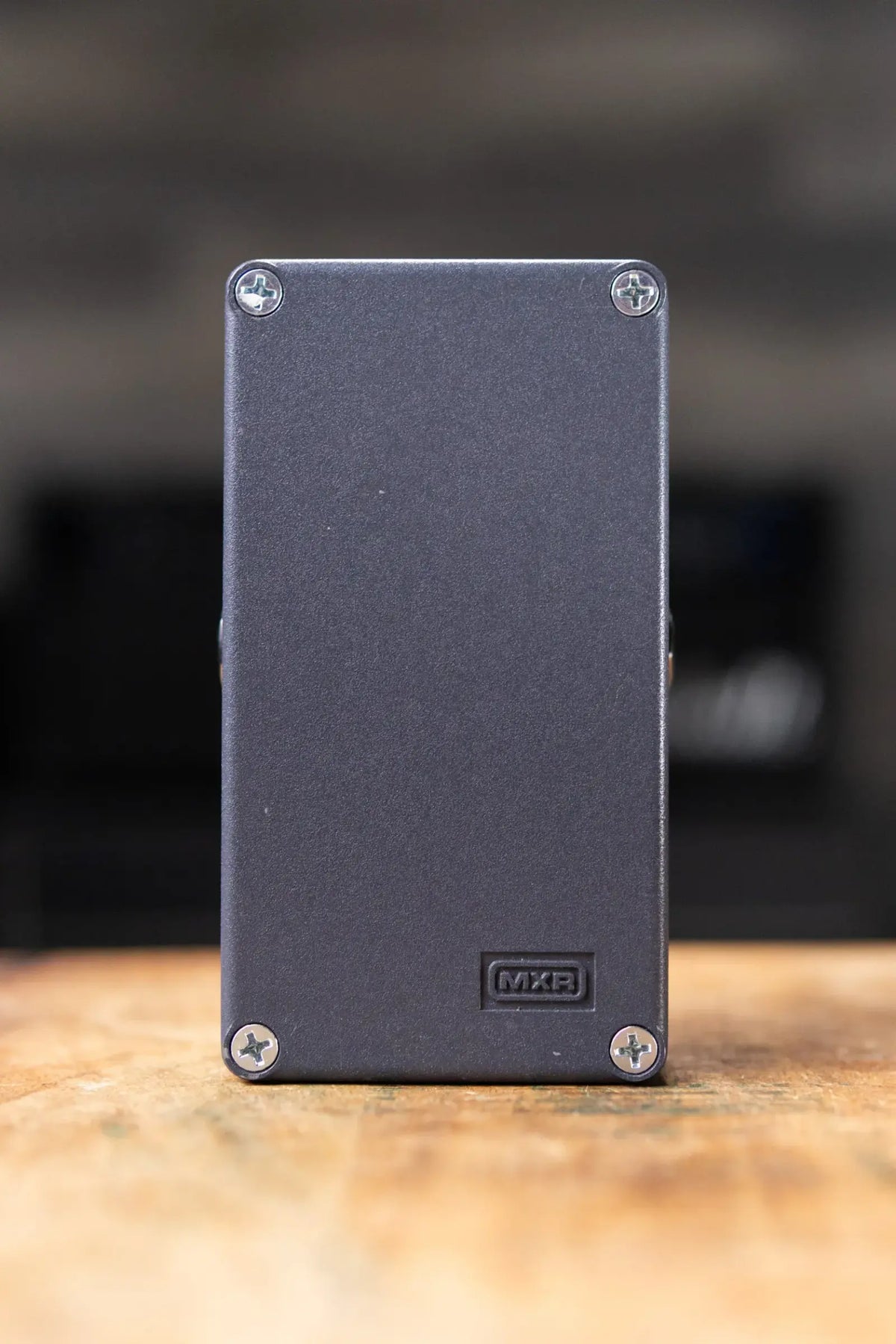

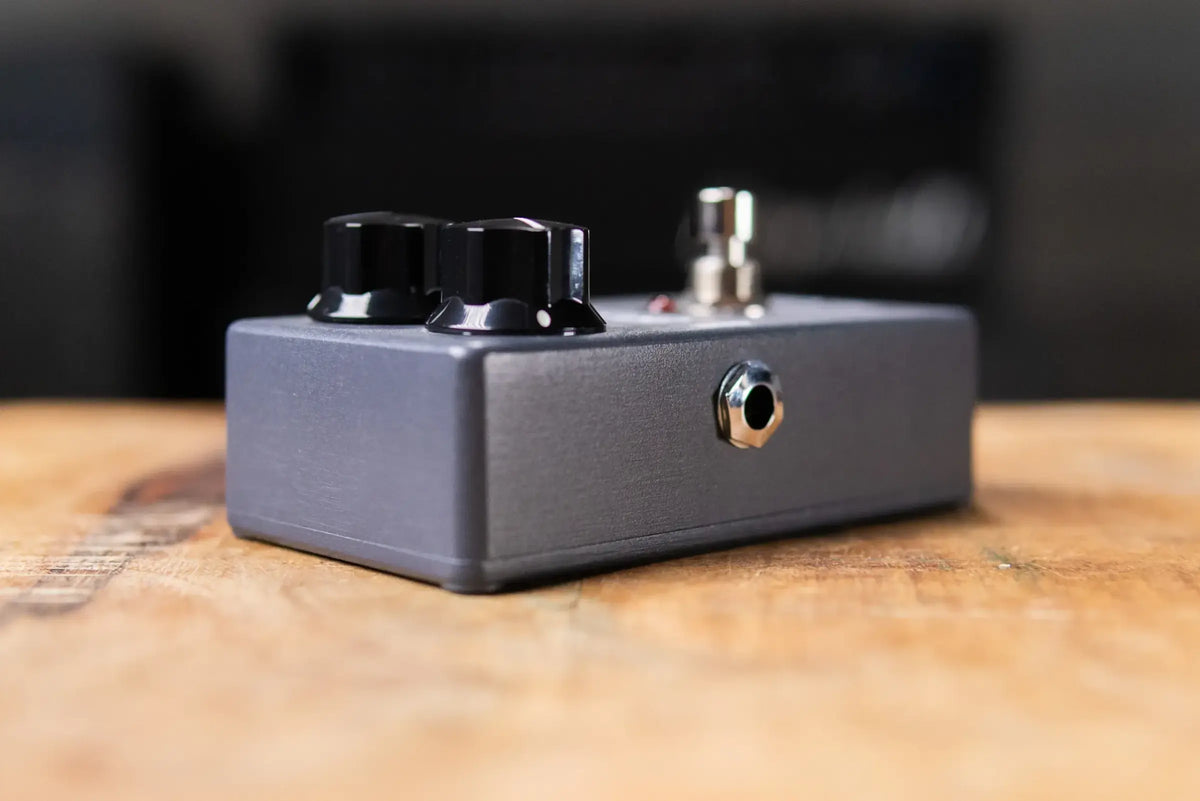

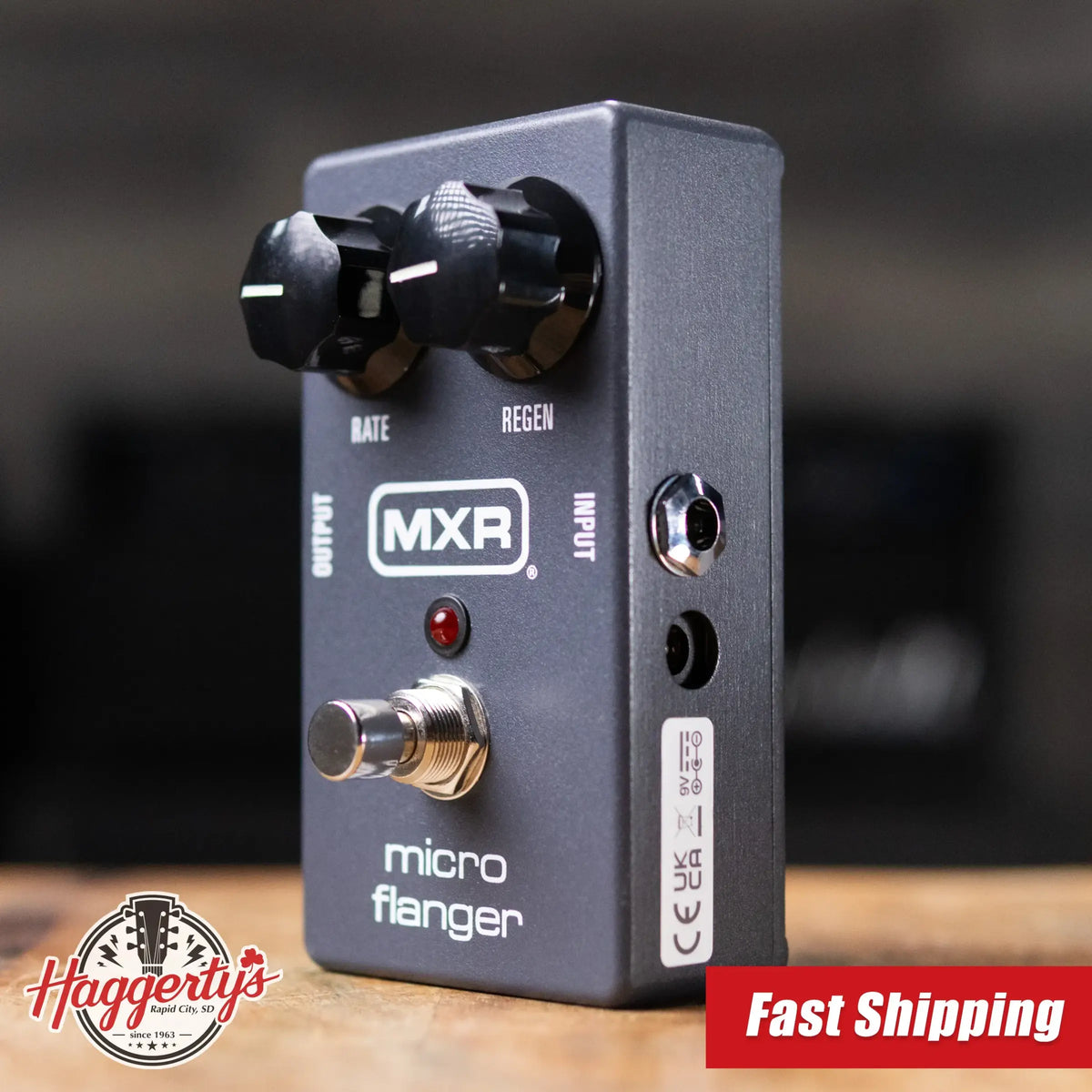

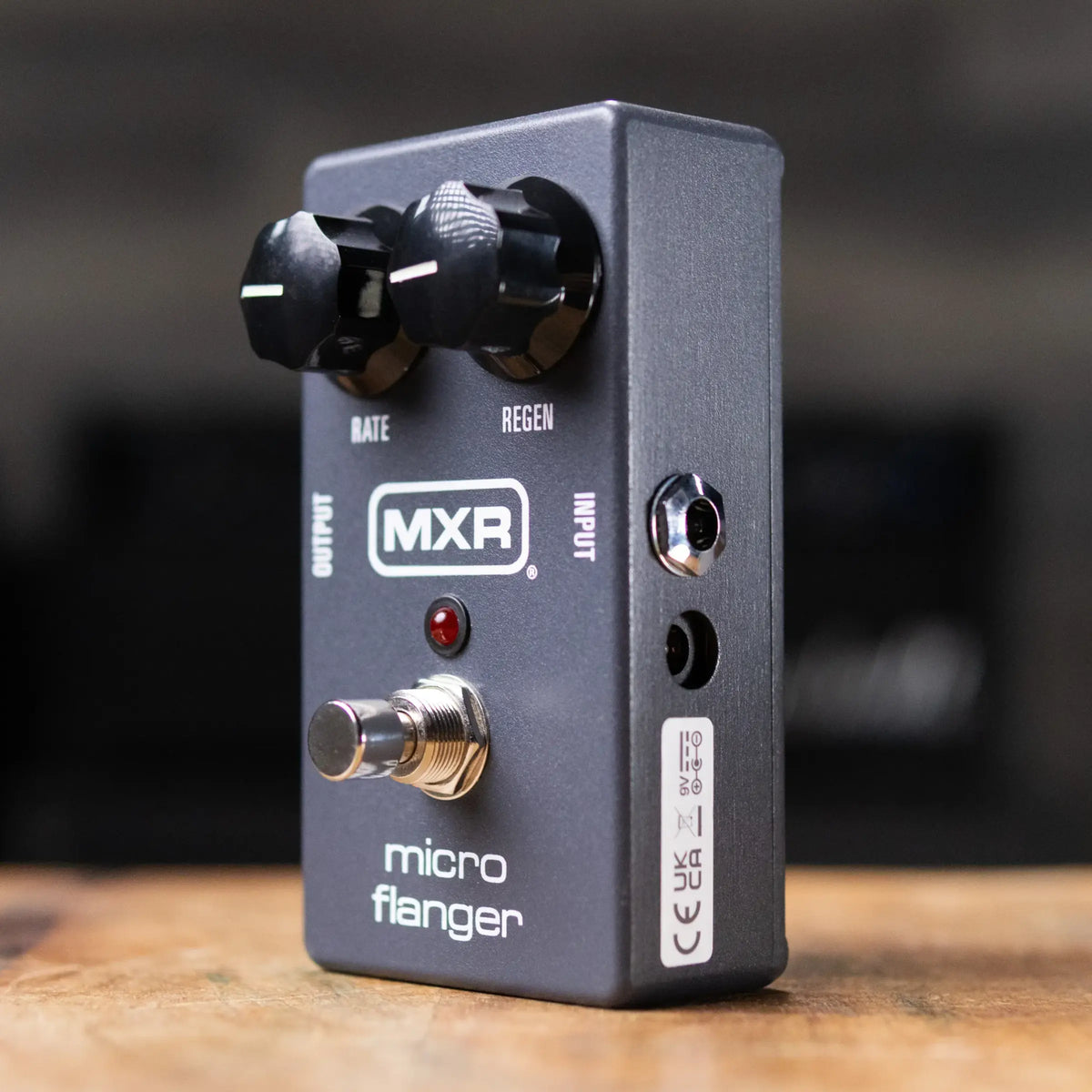

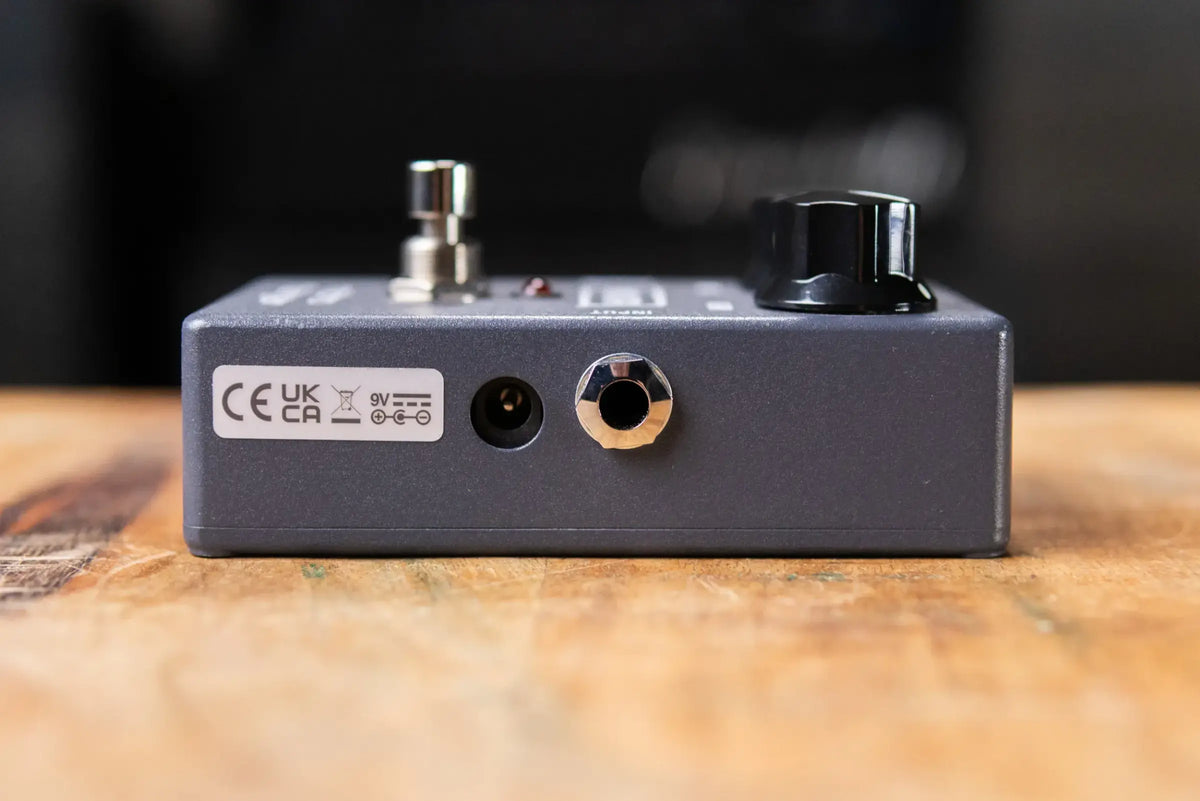

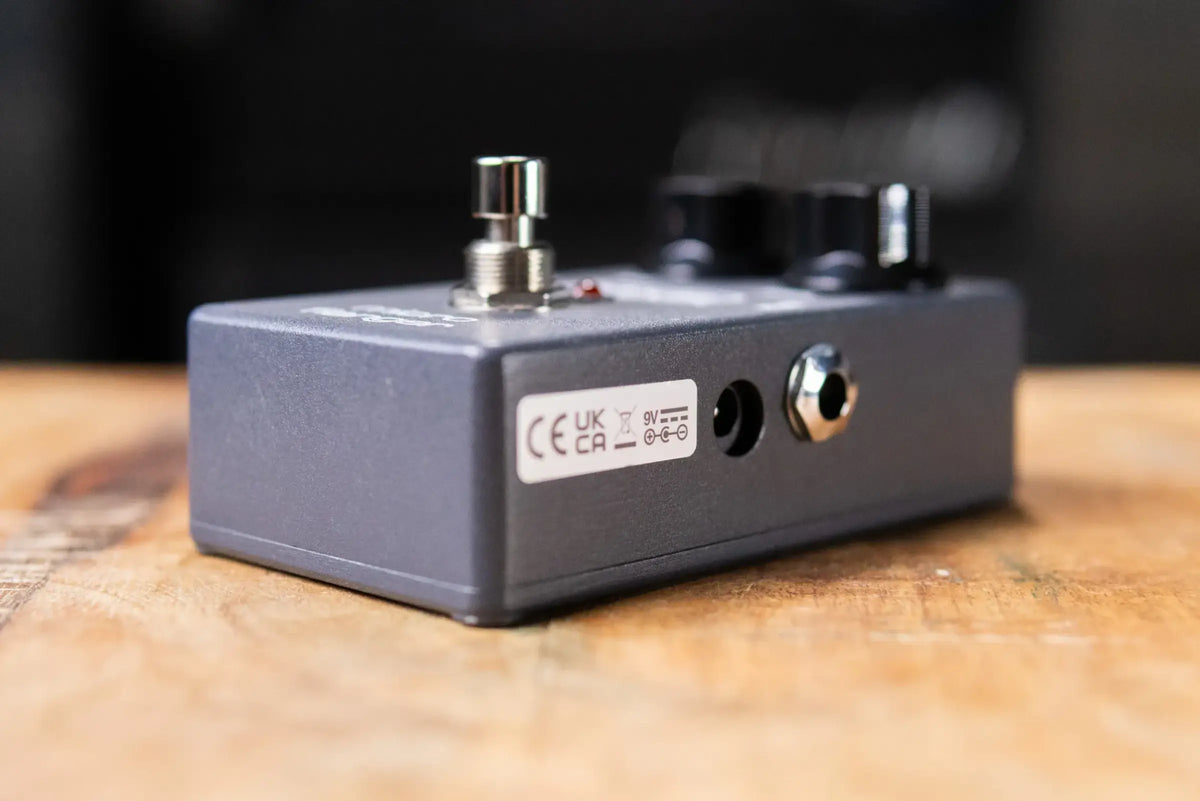

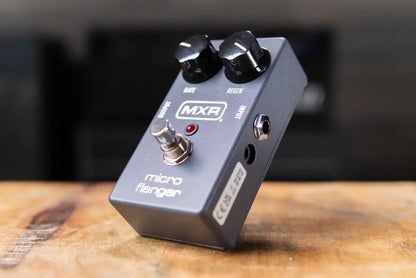

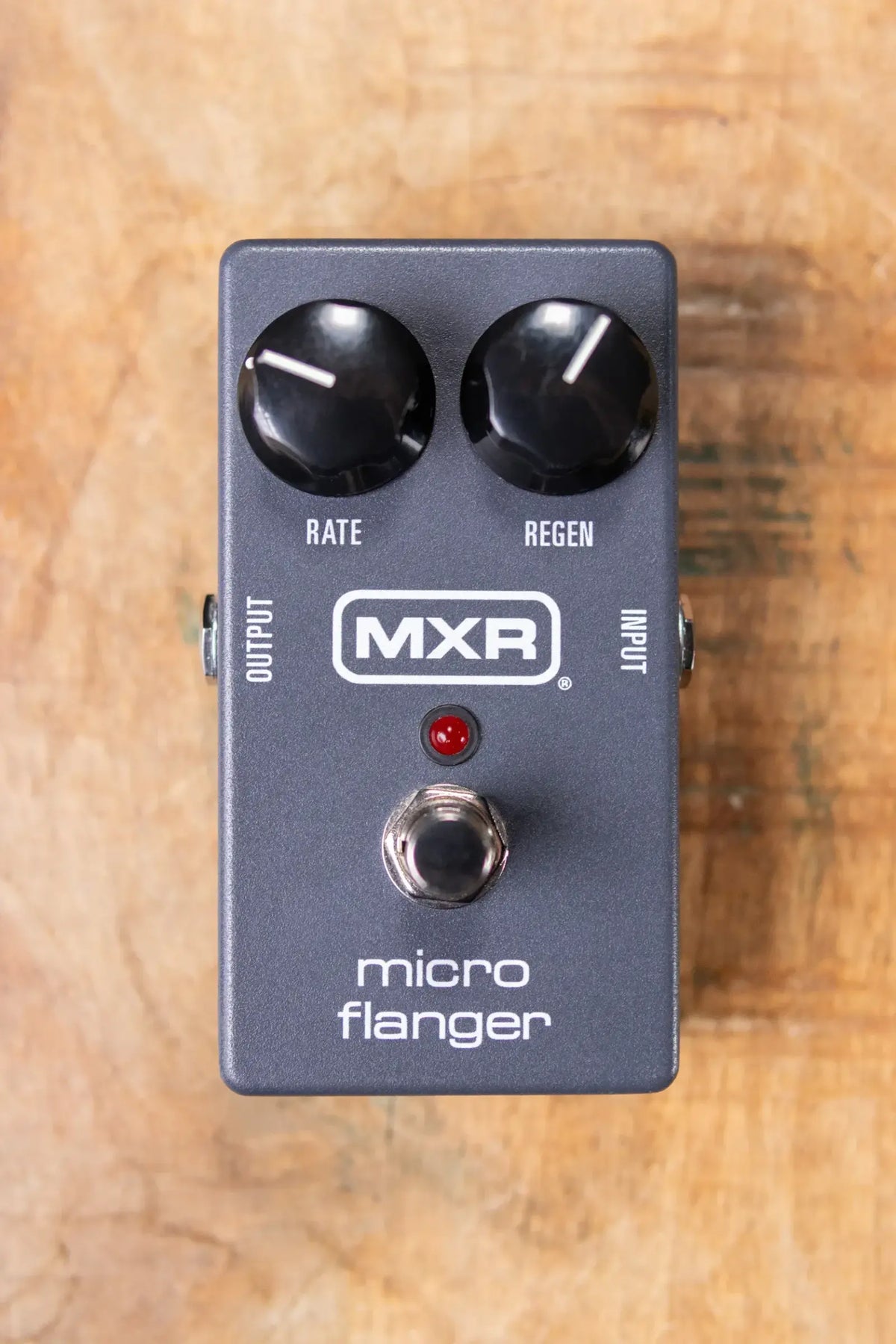

-YOU ARE VIEWING PHOTOS OF THE ACTUAL GUITAR PEDAL BEING SOLD!

This used MXR will ship insured and inspected from Rapid City, SD. This pedal is in excellent condition with a few small scratches on the left side of the unit.

Buy risk free with our 14 day - full refund, less shipping, return policy.  Check out our shop policies for more details.

For the guitarist who wants the sweeping movement of a classic analog flanger without a complicated control layout taking attention away from playing, this used MXR Micro Flanger distills one of the company's benchmark modulation sounds into a compact two-knob pedal. The Micro Flanger traces its lineage to the larger MXR M117 Flanger, adapting that pedal's unmistakable swirling character into a simpler format that originally appeared during the 1980s. Its 100% analog bucket-brigade circuitry preserves the warm, organic quality associated with vintage flanging, while the streamlined Rate and Regeneration controls make everything from slow, spacious movement to dramatic jet-like sweeps easy to dial in.

The Rate control adjusts the speed of the modulation from 0.2 Hz to 5.5 Hz, while Regeneration determines the amount of feedback and therefore the intensity of the effect. At restrained settings, the Micro Flanger can add subtle motion and dimension to clean chords, arpeggios, and rhythm parts; pushed harder, it delivers pronounced swooshes, metallic sweeps, and spacey modulation well suited to psychedelic rock, classic rock, alternative, funk, experimental music, and heavily effected lead sounds. True hardwire bypass keeps the pedal out of the signal path when disengaged, and its straightforward mono input/output arrangement makes it equally easy to use on its own or integrate into a larger pedalboard. Available now at Haggerty’s Music.

Features / Specs

Highlights

• Effect Type: Flanger
• Series: MXR Micro
• Circuit Inspiration: MXR M117 Flanger
• Circuit Type: 100% Analog Bucket-Brigade
• Condition: Used - Excellent

Controls

• Rate: Adjusts Flanging Speed from 0.2 Hz to 5.5 Hz
• Regeneration: Adjusts Feedback and Overall Effect Intensity
• Footswitch: Toggles Effect On / Bypass
• LED Indicator: Red LED Indicates Effect On

Signal / Electronics

• Circuit: Analog Bucket-Brigade Technology
• Bypass: True Hardwire Bypass
• Audio Configuration: Mono
• Input Impedance: 1 MΩ
• Output Impedance: 1 kΩ
• Maximum Input Level: -2 dBV at 500 Hz
• Maximum Output Level: +8 dBV
• Noise Floor: -88 dBV
• Rate Range: 0.2 Hz to 5.5 Hz
• Delay Range: 3.9 µs to 4 ms
• Current Draw: 7 mA

Connectivity

• Input: 1/4" Instrument Input

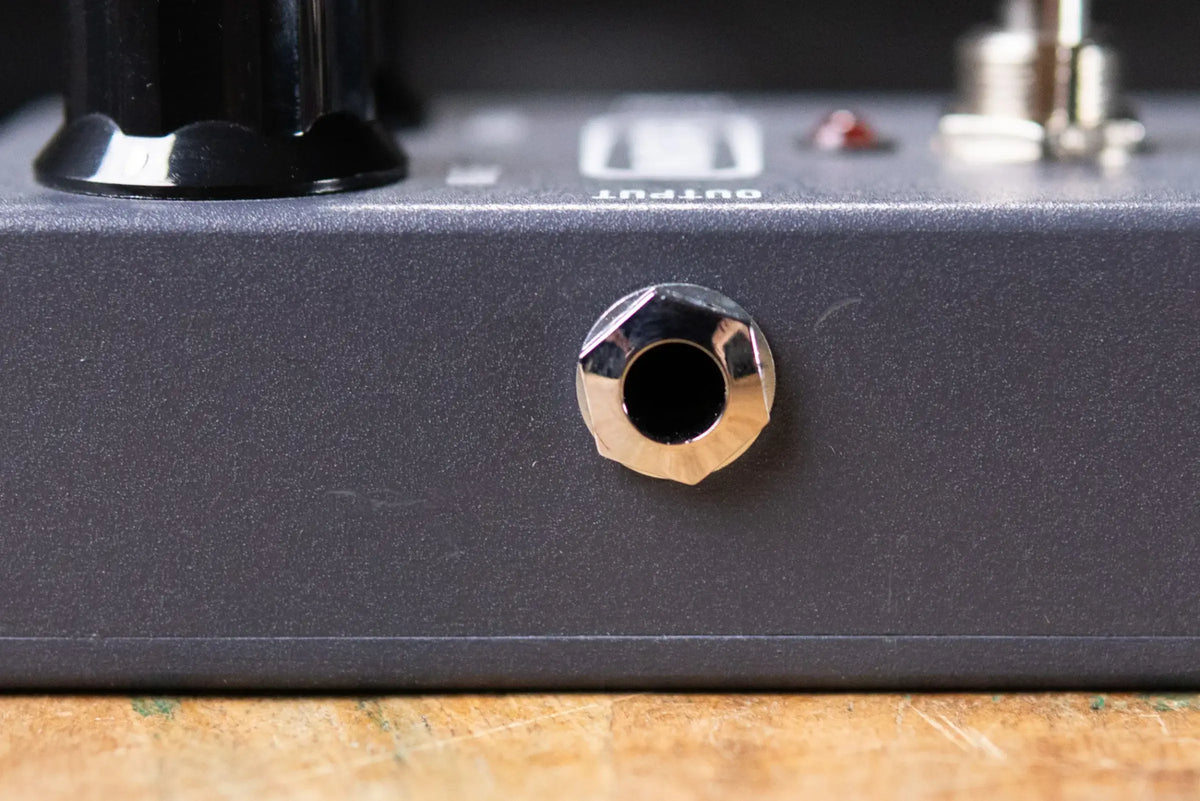

• Output: 1/4" Instrument Output

Power

• Battery Power: 9V Battery
• External Power: 9V DC
• Compatible Power Supplies: Dunlop ECB003 / ECB003E or DC Brick
• Power Adapter Included: No
• Current Draw: 7 mA

Construction

• Enclosure: Compact MXR Pedal Enclosure
• Control Layout: 2-Knob
• Technology: Analog Bucket-Brigade
• Footswitch: True Bypass
