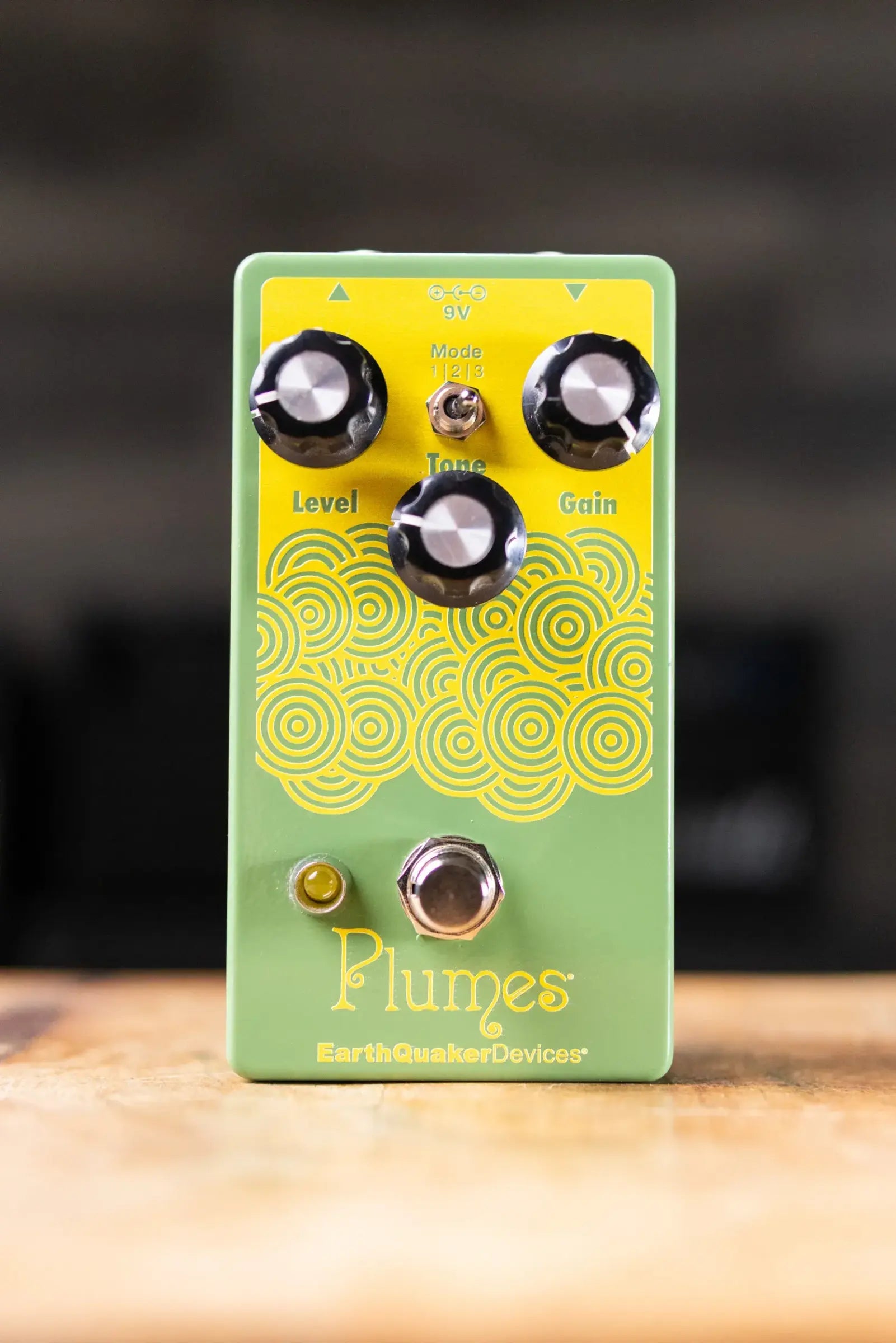

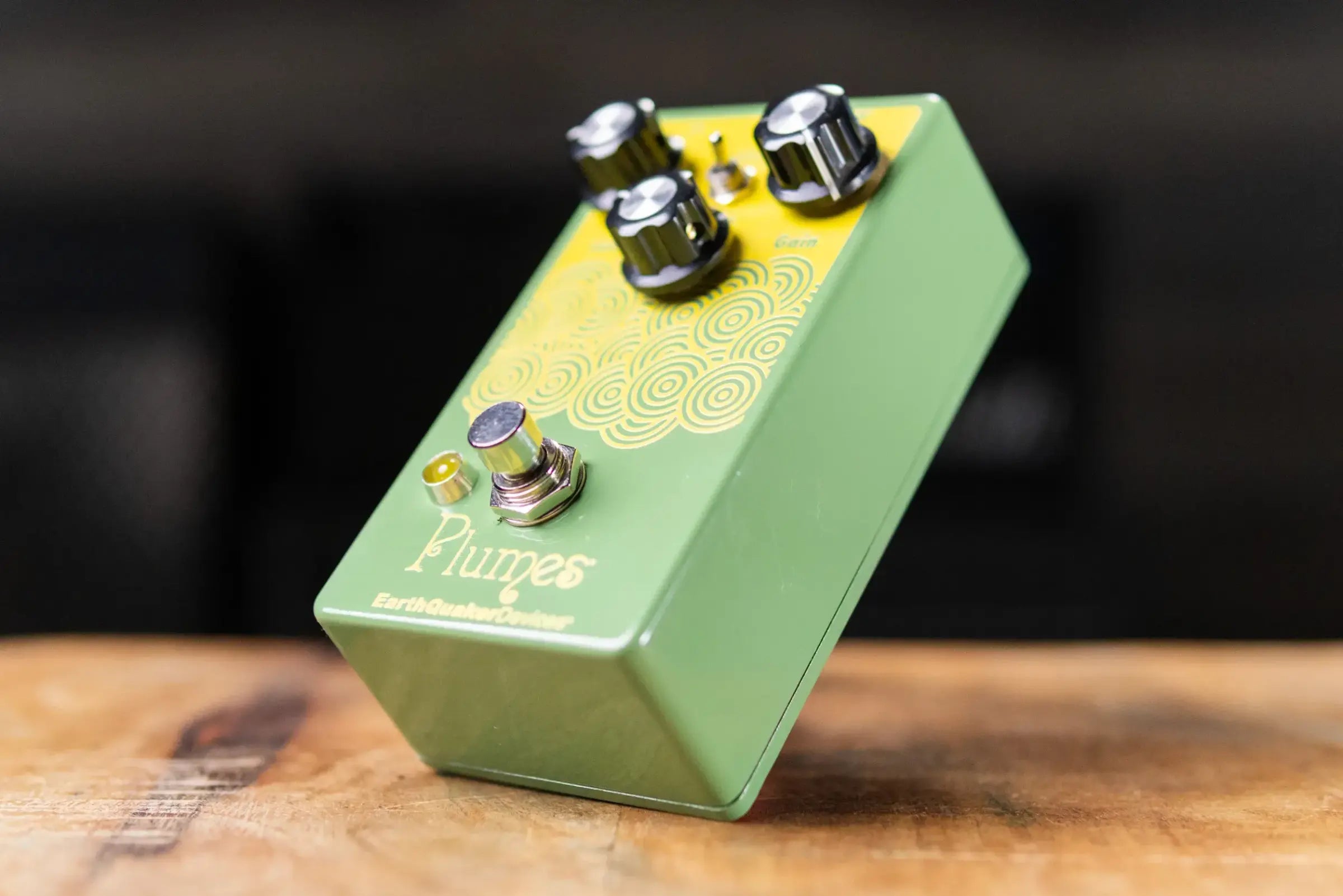

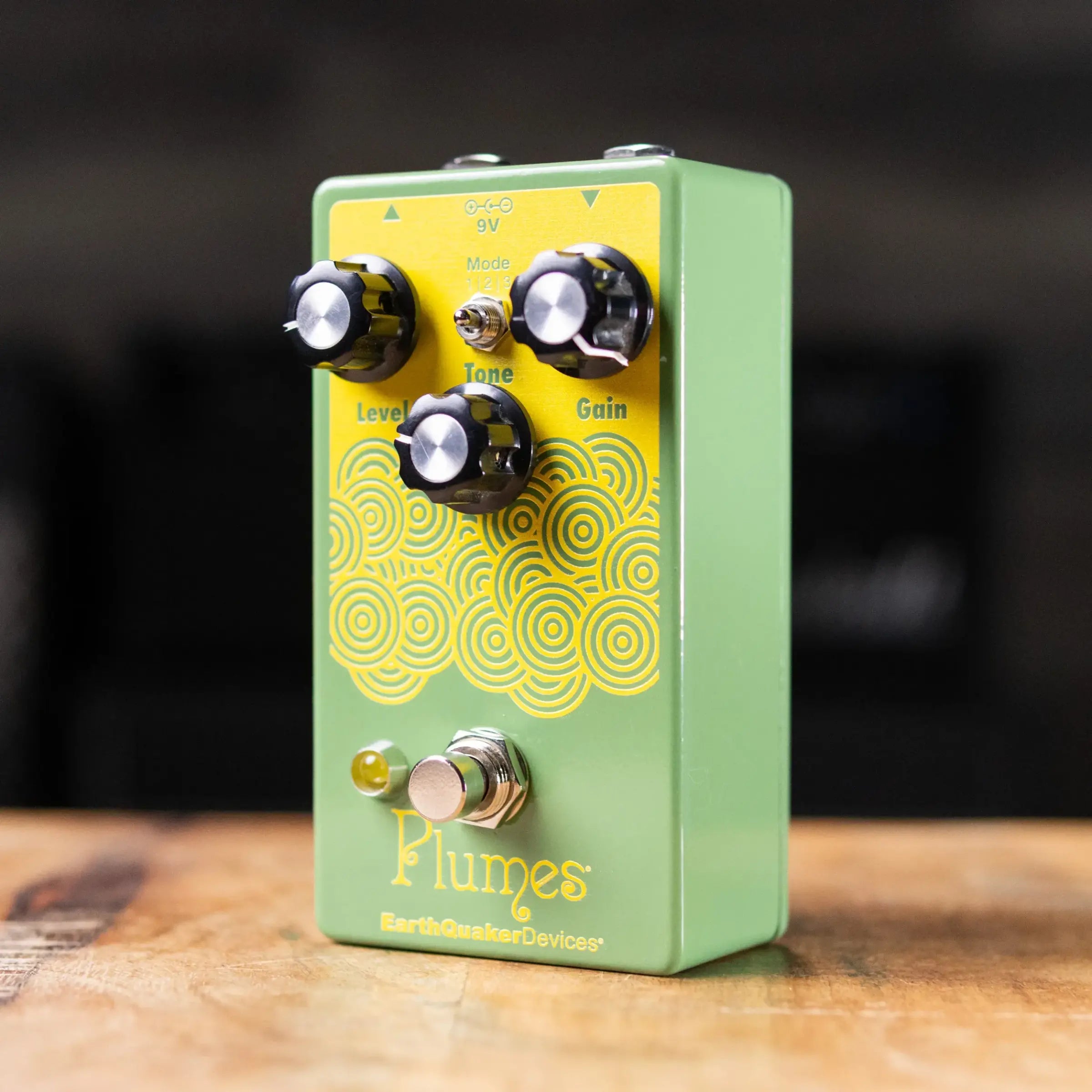

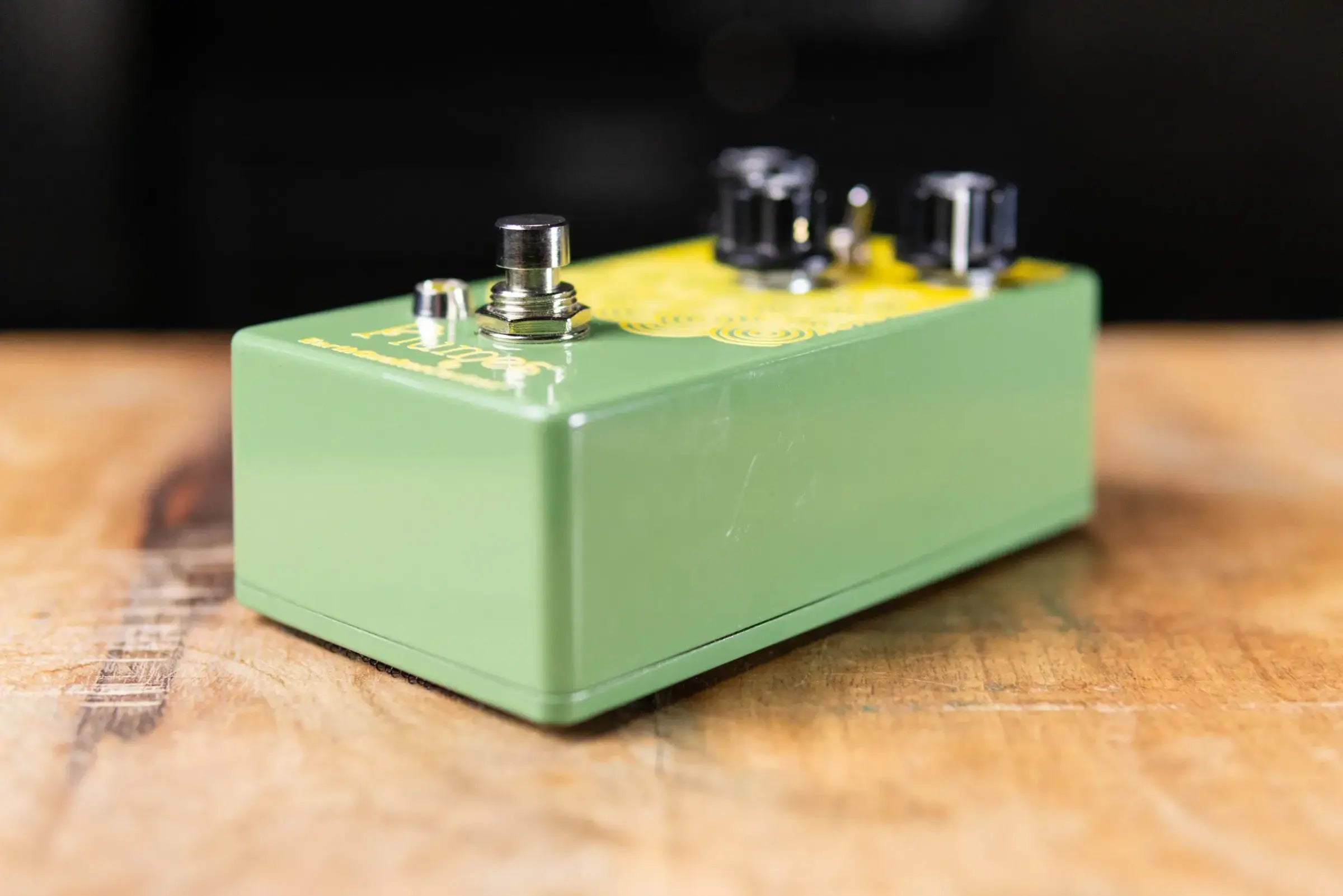

EarthQuaker Devices Plumes Small Signal Shredder Effect Pedal - Used

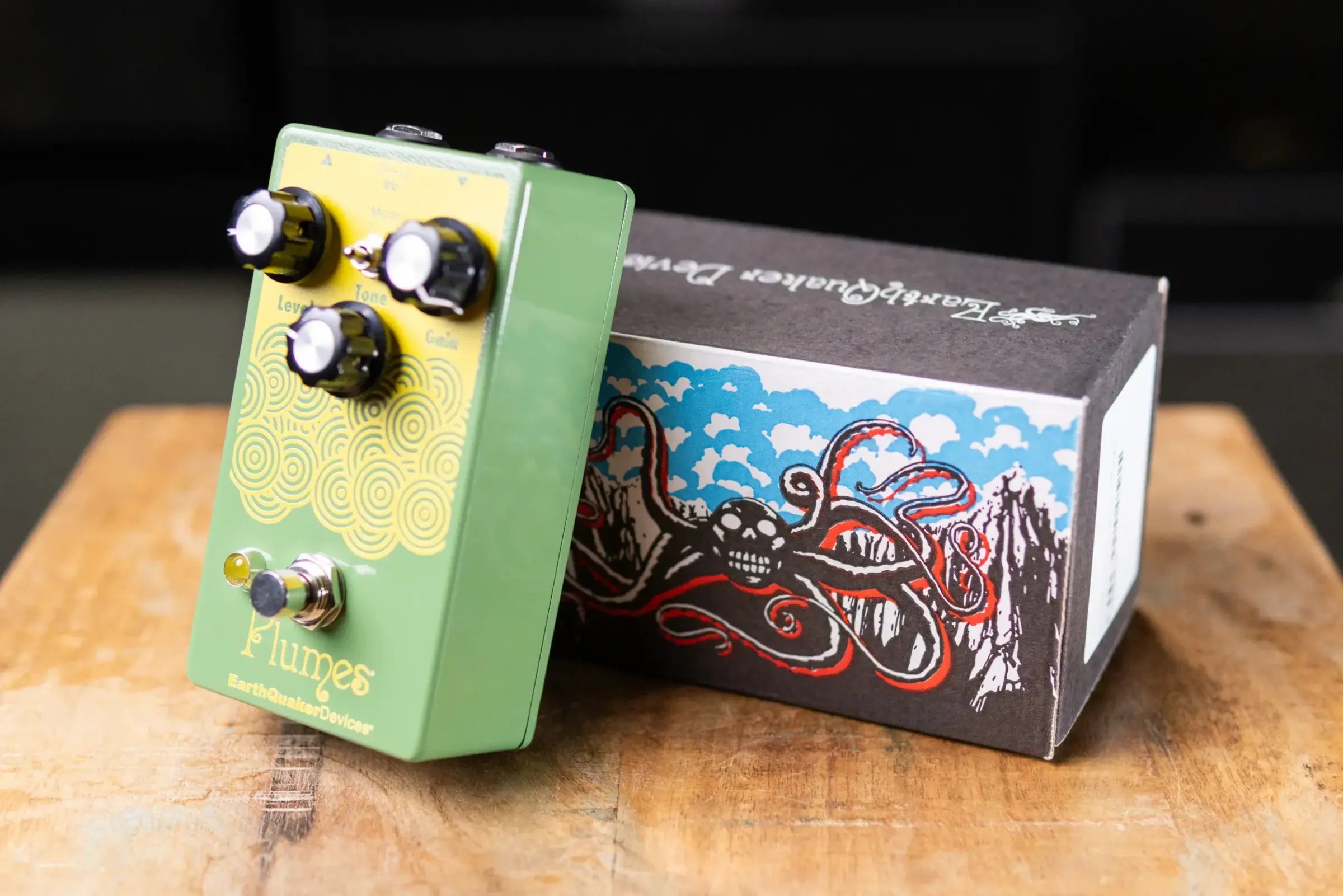

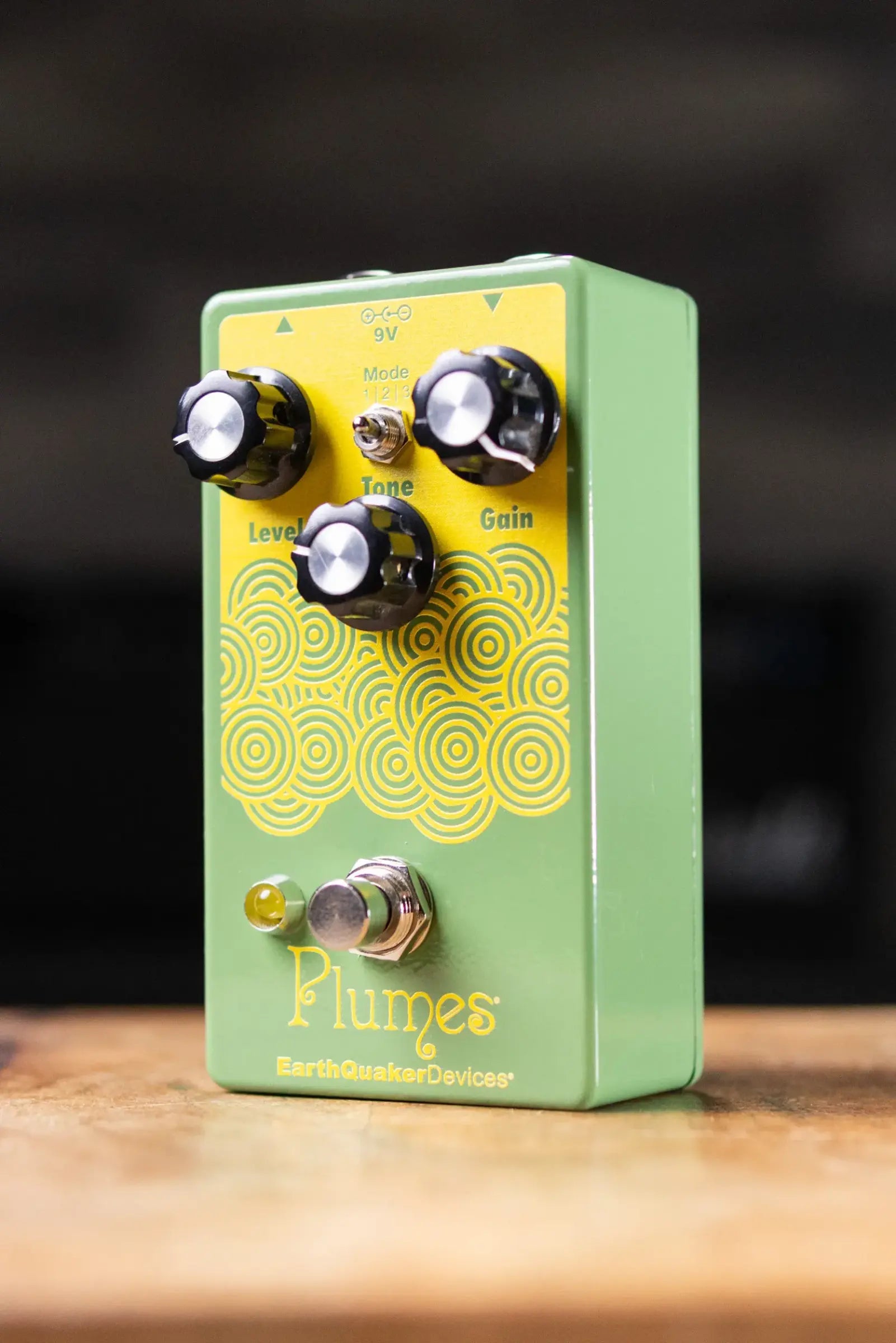

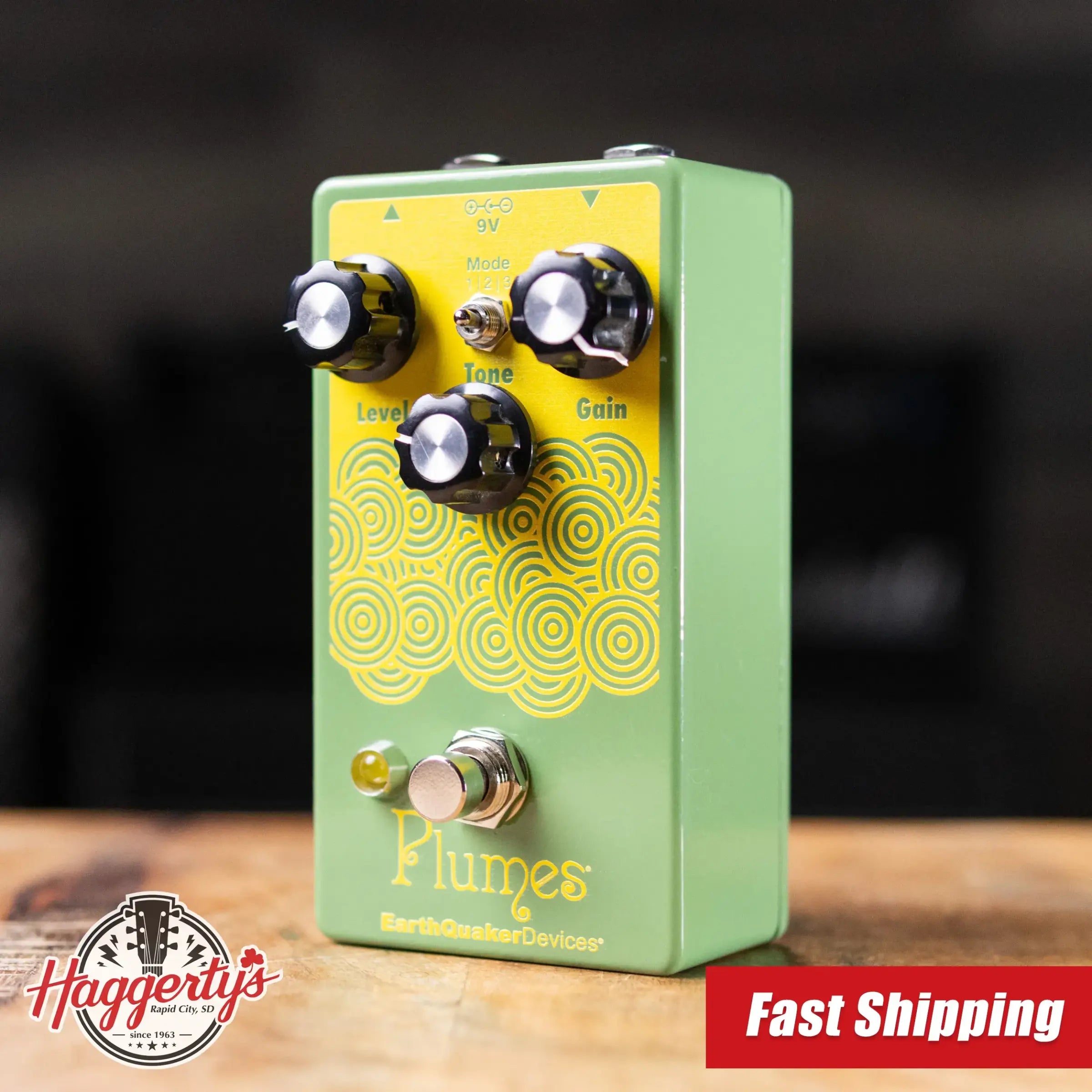

-YOU ARE VIEWING PHOTOS OF THE ACTUAL GUITAR PEDAL BEING SOLD!

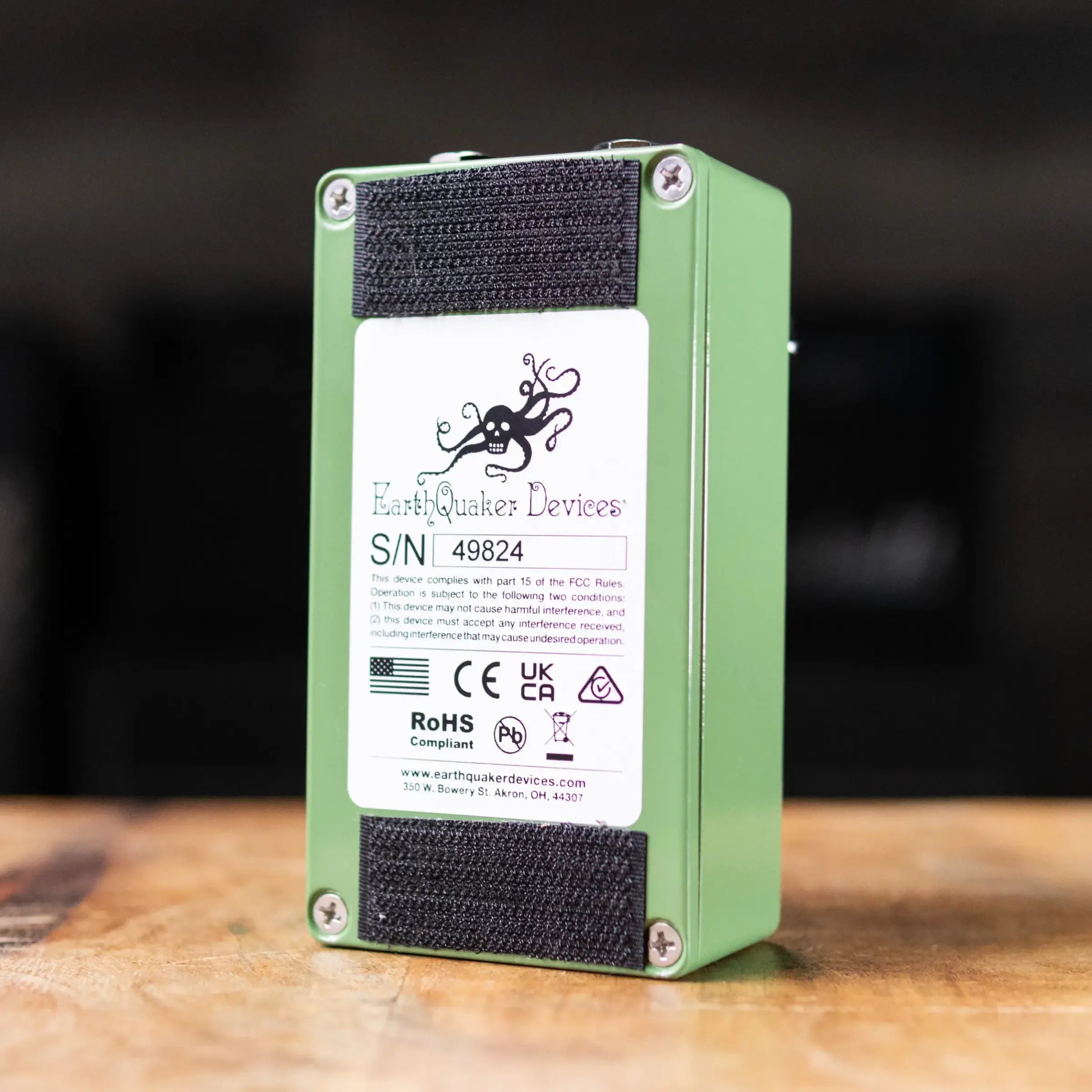

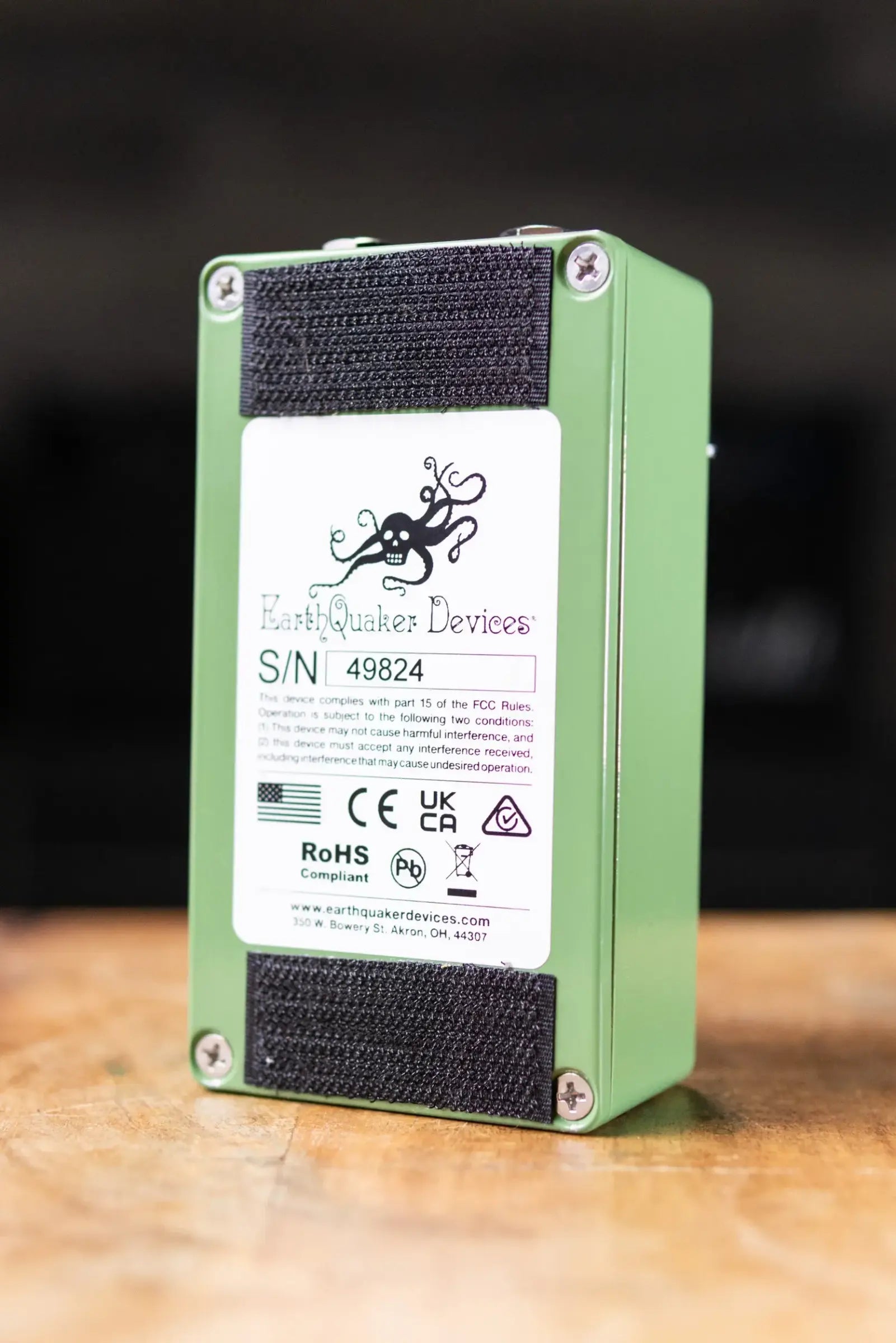

This used EarthQuaker Devices unit will ship insured and inspected from Rapid City, SD. This pedal is in excellent condition with velcro for a pedalboard already attached to the bottom.

Buy risk free with our 14 day - full refund, less shipping, return policy.  Check out our shop policies for more details.

The EarthQuaker Devices Plumes has earned its place as one of the most respected modern overdrive pedals by taking a familiar tube-style circuit and reimagining it from the ground up. Rather than simply recreating a vintage classic, EarthQuaker refined every aspect of the design with increased headroom, lower noise, greater clarity, and three distinct clipping modes that make Plumes equally at home as a transparent boost, articulate overdrive, or punchy distortion. Its ability to complement virtually any amplifier has made it a staple on pedalboards across every genre.

Built entirely with analog circuitry, Plumes replaces the traditional 4558 op-amp architecture with modern JFET operational amplifiers and internally converts the incoming 9V supply to ±9V for dramatically increased headroom and dynamic response. The intuitive three-knob control layout is paired with a three-position clipping switch, allowing players to move seamlessly between compressed vintage-inspired drive, a powerful clean boost, or a more open and transparent overdrive. Complete with EarthQuaker's Flexi-Switch technology for both latching and momentary operation, this used pedal is an incredibly versatile addition to any pedalboard.

Features / Specs

Highlights

• Effect Type: Analog Overdrive / Clean Boost
• Circuitry: All Analog with JFET Operational Amplifiers
• Controls: Level, Gain, Tone, 3-Way Clipping Mode Switch
• Bypass: Relay-Based True Bypass with Flexi-Switch Technology

Controls

• Level: Adjusts overall output volume
• Gain: Controls the amount of overdrive
• Tone: Shapes bass, midrange, and treble response
• Clipping Modes: 3-Position Toggle
• Mode 1: Symmetrical LED Clipping (Higher Compression and Crunch)
• Mode 2: Clean Op-Amp Boost (No Clipping Diodes)
• Mode 3: Asymmetrical Silicon Diode Clipping (Transparent, Open Response)

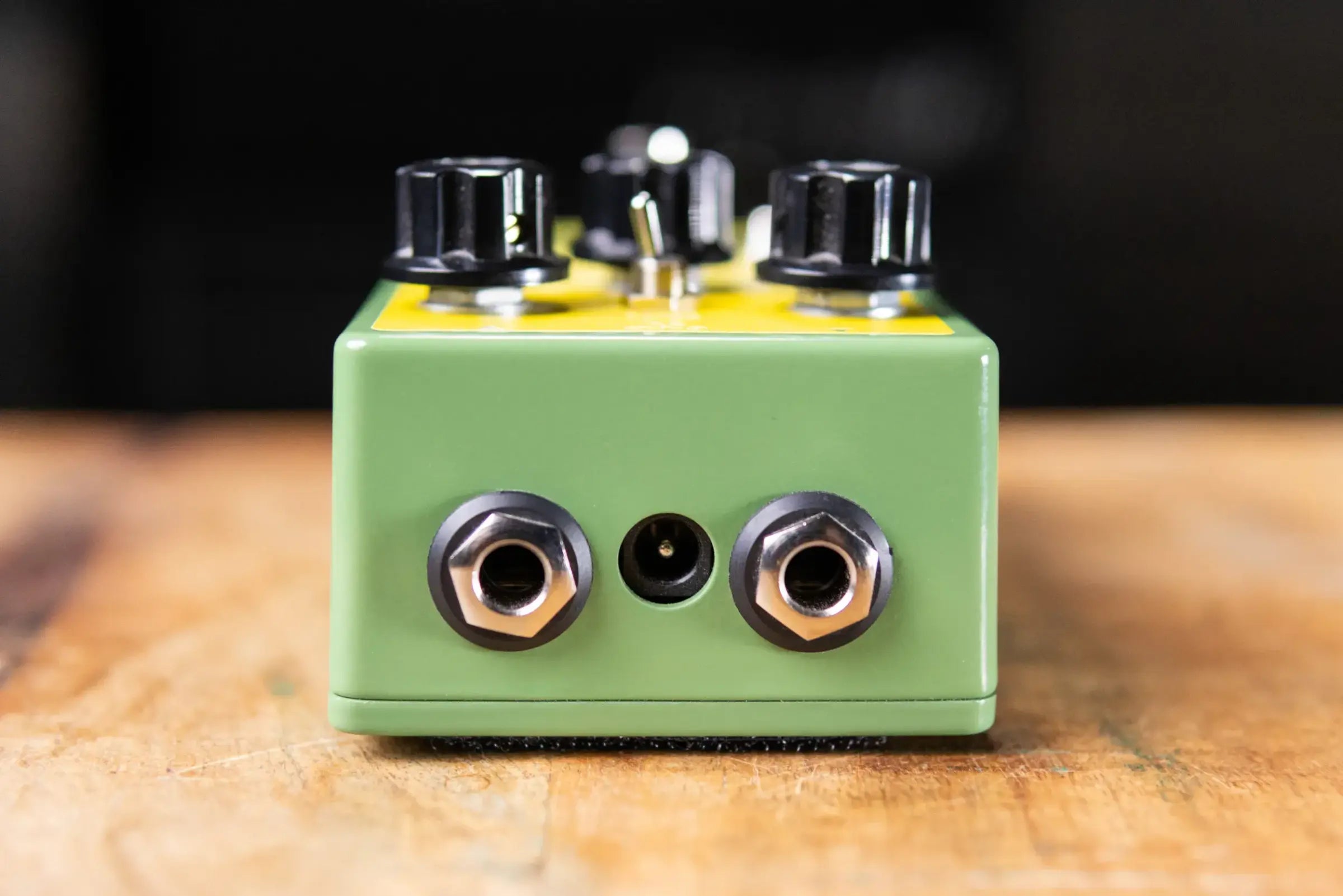

Connections

• Input: 1/4" Mono
• Output: 1/4" Mono
• Power Input: 9V DC, 2.1mm Center-Negative
• Battery Operation: No

Power

• Operating Voltage: 9V DC Center-Negative
• Current Draw: 25mA
• Input Impedance: 10MΩ
• Output Impedance: 100Ω

Construction

• Enclosure: Powder-Coated Metal Chassis
• Artwork: By Artist Jamie Stillman
• Switching: Flexi-Switch Relay-Based True Bypass (Latching and Momentary)
• Status Indicator: LED

Miscellaneous

• Included Accessories: Original Box
• Serial Number: 49824
