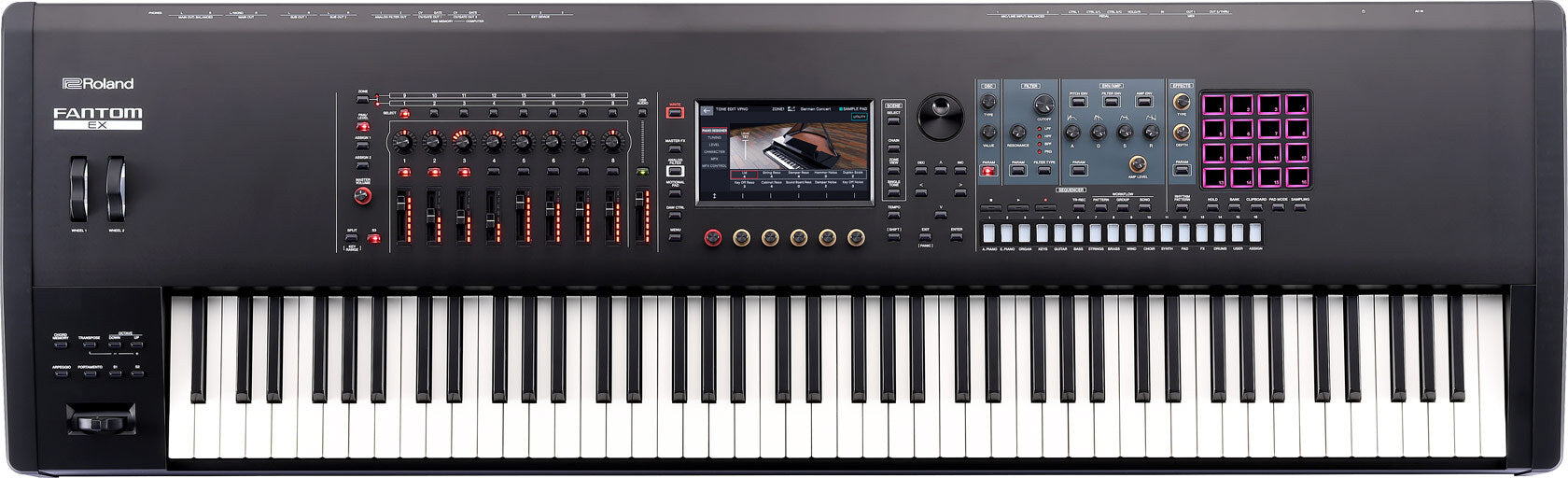

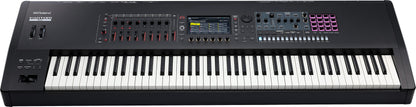

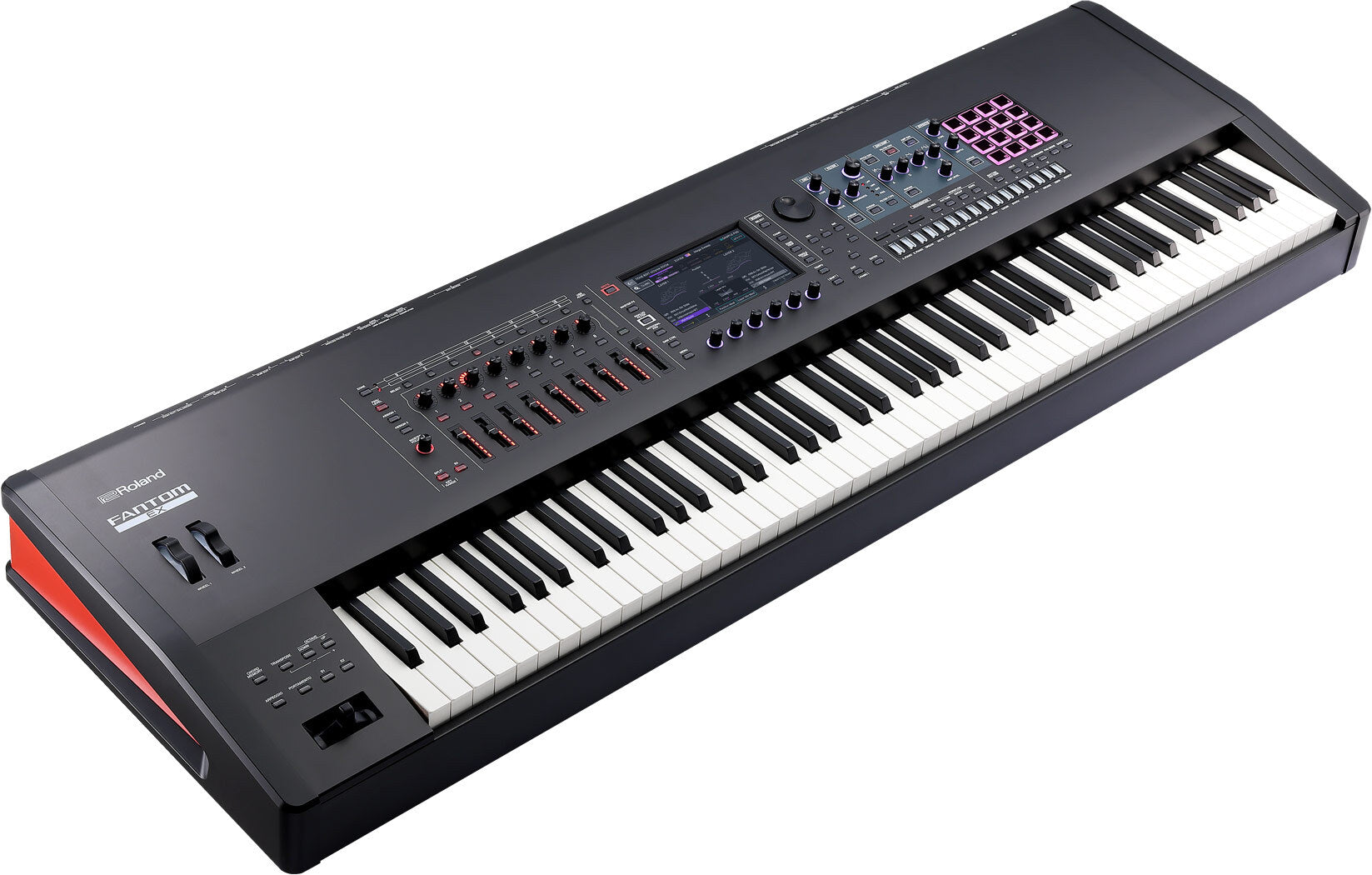

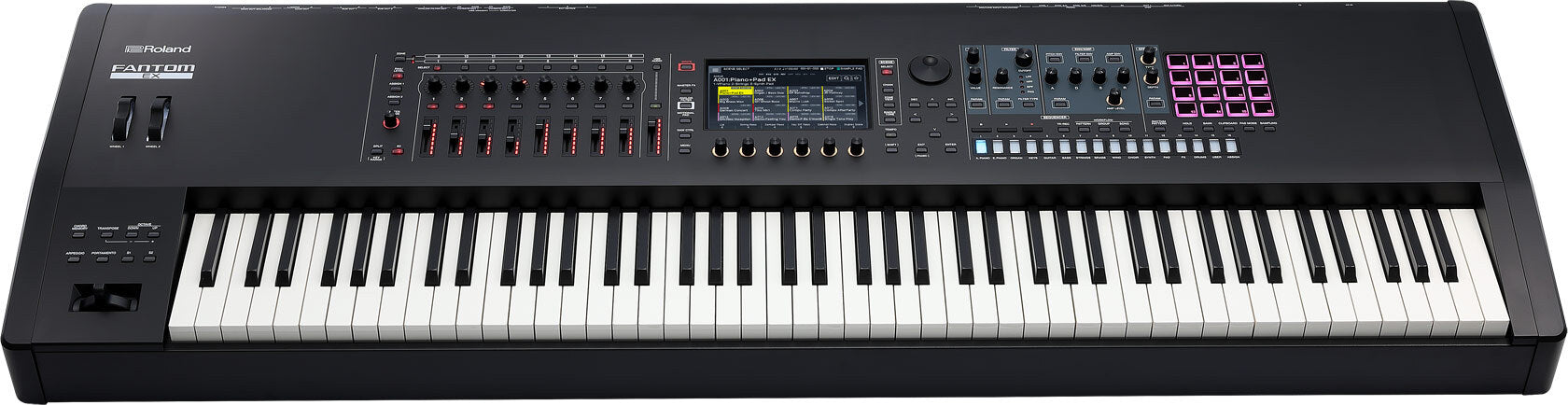

Roland FANTOM 8 EX Synthesizer Workstation

This brand new synthesizer will ship insured, fully set up, and inspected from Rapid City, SD.

Buy risk free with our 14 day - full refund, less shipping, return policy. Check out our shop policies for more details.

Step into a world where inspiration meets precision with the Roland FANTOM 8 EX Synthesizer Workstation. Designed as the centerpiece of any studio or stage setup, this powerhouse instrument invites you to create without limits. From the moment your hands touch its 88-note hammer-action keyboard, you feel the depth and responsiveness that turns every performance into something expressive and alive, whether you’re composing cinematic textures or driving a live set.

Under the hood, the FANTOM 8 EX is a complete creative ecosystem. Multiple advanced sound engines—including ZEN-Core, V-Piano, SuperNATURAL, and ACB—deliver everything from authentic acoustic instruments to iconic vintage synth tones, all drawn from a library of over 7,000 sounds. Its intuitive interface, built around a large color touchscreen, hands-on controls, and 16 RGB pads, keeps your workflow fluid and immediate. With a powerful clip-based sequencer, sampling capabilities, and extensive effects processing, it’s built to handle everything from initial ideas to fully realized productions without ever breaking your creative momentum.

On stage or in the studio, connectivity and control take center stage. With multi-channel USB audio, MIDI integration, CV/gate outputs, and seamless DAW compatibility, the FANTOM 8 EX becomes the command hub for modern music production. Every detail—from its premium build to its expansive sound design tools—reflects a commitment to professional performance and limitless creativity. The Roland FANTOM 8 EX Synthesizer Workstation is available now at Haggerty’s Music, ready to transform how you create, perform, and experience sound.

Features / Specs

Sound Generator

• Sound Generator:
  • ZEN-Core V-Piano Technology (Only ZONE1)
  • ACB (Only ZONE1)
  • VTW Organ (Only ZONE2)
  • SuperNATURAL Acoustic
  • SuperNATURAL Acoustic Piano
  • SuperNATURAL Electric Piano
  • Various MODEL sound generators
• Expansion:
  • EXZ Series
  • EXSN Series
  • EXM Series
  • ACB Series
• Parts: 16 Zones (Internal + External)
• Scenes: 128 Scenes x 4 Bank
• Tones: Over 7,000 Tones, Over 90 Drum Kits
• Tone Remain: 16 Zones
• Favorite: Rating System - 4 Steps (0--3)
• Tone Search / Scene Search: Rating, Character
• Effects:
  • Multi-Effects: 16 Systems, 93 Types
  • Part EQ: 16 Systems
  • Drum Part COMP: 6 Systems
  • Insertion Effect: 2 Systems, 90 Types (Serial, Parallel Connection Selectable)
  • TFX: 1 System, 90 Types
  • Input MFX: 2 Systems (In Parallel), 90 Types
  • Chorus: 9 Types
  • Reverb: 7 Types
  • Master Compressor
  • Master EQ
  • Input Reverb: 7 Types
  • Input EQ: 2 Systems (In Parallel)
• Analog Filter: STEREO, Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass, Drive, Amp
• Vocoder:
  • Band: 13, 20, 32
  • Type: Mono, Stereo
  • Preset Setting: 10
  • User Setting: 20
• Scene Chain:

  • Chain: 16 Scenes x 32 Pages (Total 512 Scenes) Per 1 Chain Set
  • Set: 100
  • Marker: 62 Per 1 Chain Set

Sequencer

• MIDI Tracks: 16
• Group: 16
• Pattern: 8 (Per Each Track)
• Pattern Length: 64 Measures
• Recording Method: Realtime Recording, Step Recording, TR-REC
• Editing Method: Piano Roll Edit (Touch Edit / Automation Support), Microscope
• Song: 1 (Per Scene)
• File Format: Original, SMF Export/Import Supported

Sampler - Keyboard Multisample

• Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF
• Number of Samples: 8,000
• Number of Multisamples: 128
• Sampling Time: Max - 2 Min. 44 Sec. (1 Sample)

Sampler - Pad Sampler

• Format: 16-bit linear, 44.1/48 kHz, WAV/AIFF import supported
• Number of Samples: 16 Pads x 4 Banks
• Maximum Polyphony: 8
• Sampling Time: Max - 60 Minutes

Other

• Rhythm Pattern: Yes
• Arpeggiator: Yes
• Chord Memory: Yes
• Motional Pad: Yes
• PAD Mode: Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play
• AIRA LINK: Yes - when connect to MX-1
• CV/Gate Control: 2 x CV/Gate or 3 x CV/1 x Gate
• Controllers:
  • Pitch Bend/Modulation Lever *1
  • Assignable Switch x 2 (S1/S2)
  • Control knob x 8
  • Slider x 8
  • USB Audio slider
  • Wheel x 2 *1
  • Function knob x 6
  • Sound Modified knob x 11 *1
  • 4 x 4 Pad
• Display: Graphic Type, 7", Wide VGA (800 x 480 dots), backlite LCD (Color/Touch screen, Wallpaper support)

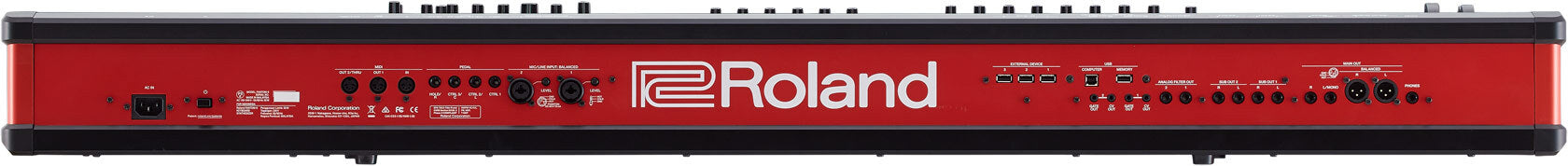

• Connectors:
  • Headphones Jack: Stereo 1/4-inch phone type
  • MAIN OUT Jacks (L/MONO, R) (1/4-inch phone type)
  • MAIN OUT Jacks (L, R) (XLR type)
  • SUB OUT1 Jacks (L, R) (1/4-inch phone type)
  • SUB OUT2 Jacks (L, R) (1/4-inch phone type)
  • ANALOG FILTER OUT Jacks (1,2) (1/4-inch phone type)
  • Mic/Line Input Jacks: (1,2) (1/4 inch phone type/XLR type)
  • 2 x CV OUT, 2 x GATE OUT
  • FOOT PEDAL Jacks (HOLD, CTRL1, CTRL2, CTRL3)
  • MIDI Connectors (IN, OUT1, OUT2/THRU)
  • USB MEMORY Port (USB A)
  • USB COMPUTER Port (AUDIO/MIDI)(USB B)
  • 3 x External Device Port(USB A):Roland A-49 or an A-PRO series MIDI Controller
• Audio Interface:
  • Max 24 Bit/96 KHz
  • Record 16 Stereo Channel
  • Playback 3 Stereo Channel
• External Memory: USB Flash drive (Sold Separately)
• Power Supply: AC 117-240 V 50/60 Hz
• Power Consumption: 50 W
• Accessories: Owner's Manual & Power Cord

Size and Weight

• Width: 56-7/16"
• Depth: 17-5/16"
• Height: 6-1/16"
• Weight: 61 lbs 2 oz
• Serial Number: FANTOM-8EX
