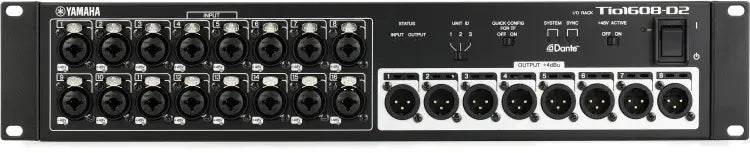

Yamaha Tio1608-D2 Digital Stage Box with Dante
TIO1608-D2
The Yamaha Tio1608-D2 is a top-quality I/O rack for the company's digital consoles. This digital stage box boasts 16 analog inputs with Yamaha's outstanding D-Pre microphone preamps, plus eight analog outputs. The Dante network protocol equips the Tio1608-D2 with incredible scalability and flexibility. This I/O box supports Quick Config Mode with DM3- and TF-series mixers, along with automatic digital-stage compensation for analog gain changes on CL- and QL-series units. Here at Haggerty’s, we're also impressed with the Tio1608-D2's convenient recallable preamps. Outstanding 96kHz converters, low-latency operation, and a time-saving Auto Setup feature round out the Tio1608-D2. Want a streamlined digital I/O rack with zero sacrifices or compromises? If so, the solution is a no-brainer: the Yamaha Tio1608-D2.
SPECIFICATIONS
- Type: Digital Stage Box
- Compatibility: Yamaha TF Mixers with Dante Cards
- Channels: 16 x 8
- Inputs - Mic Preamps: 16 x XLR-1/4" combo (mic/line)
- Outputs - Main: 8 x XLR
- Data I/O: 2 x EtherCon (primary, secondary)
- Computer Connectivity: Ethernet (Dante)
- Rackmountable: Yes
- Power Source: Standard IEC AC cable
- Height: 3.5"
- Depth: 14.37"
- Width: 18.87"
- Weight: 12.6 lbs.
- Manufacturer Part Number: TIO1608-D2
