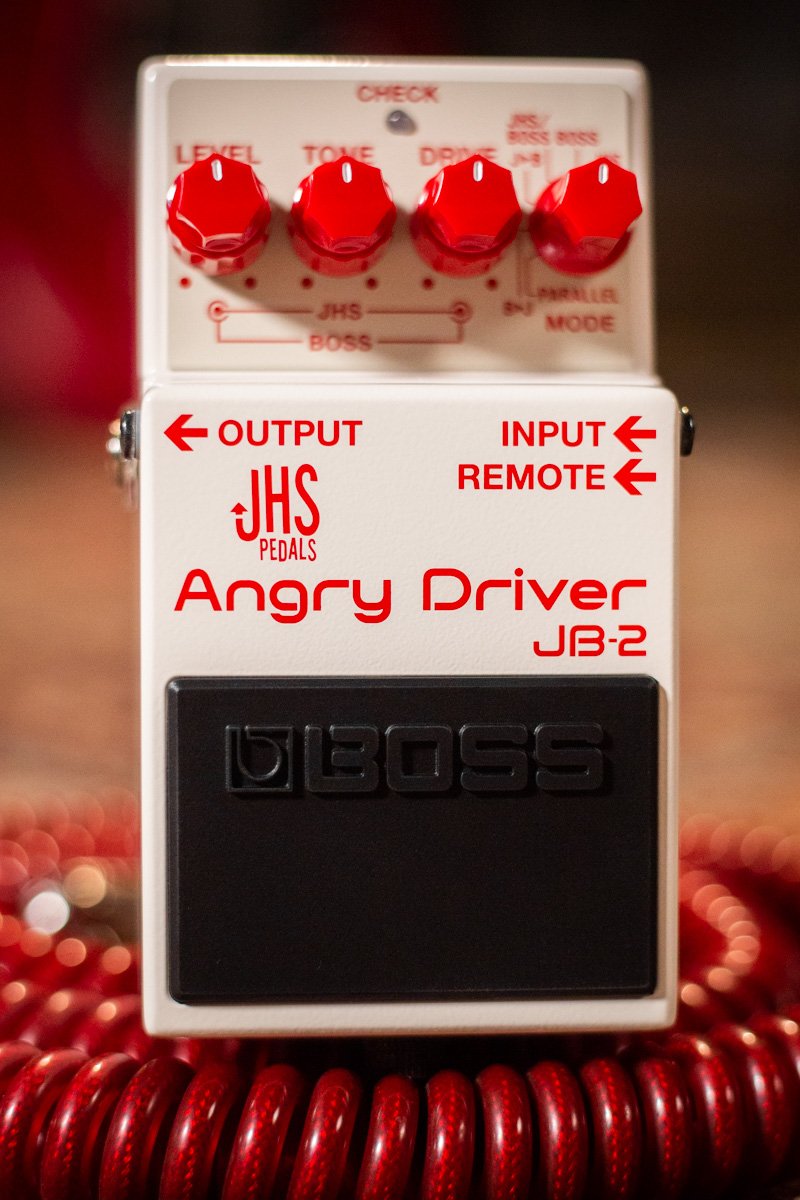

Boss JB-2 Angry Driver Guitar Effects Pedal

BOSS AND JHS PEDALS JOIN FORCES TO CREATE A NEW DRIVE PEDAL WITH MASSIVE TONAL RANGE

Boss JB-2 Angry Driver Pedal

To celebrate the 40th anniversary of BOSS compact pedals, BOSS and JHS Pedals have come together in a historic creative collaboration between the two industry leaders. Housed in the classic BOSS compact design, the JB-2 Angry Driver pairs the tones of the iconic BOSS BD-2 Blues Driver with JHS Pedals’ popular Angry Charlie. Working closely together, the two pedal innovators have developed an all-new combined circuit with refined sound and performance perfectly tuned for dual-mode drive operation.

The JB-2 Angry Driver features three dual-concentric knobs that provide independent drive, tone, and level control for each overdrive type. Via a six-position mode selector, you can use each overdrive independently, or combine them together in series and parallel configurations. With the ability to blend the Blues Driver’s famously expressive low-to-mid gain tones with the Angry Charlie’s aggressive rock voice in any combination, the JB-2 Angry Driver delivers unmatched range and versatility from a single overdrive pedal.

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass

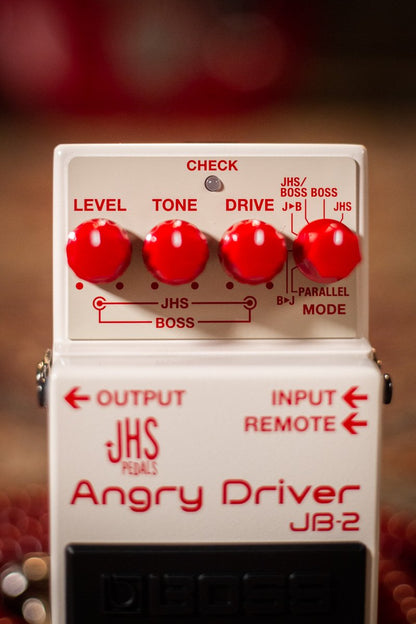

• Controls: Pedal switch, MODE knob, DRIVE knob, TONE knob, LEVEL knob
• Indicator: CHECK indicator (Serves also as battery check indicator)

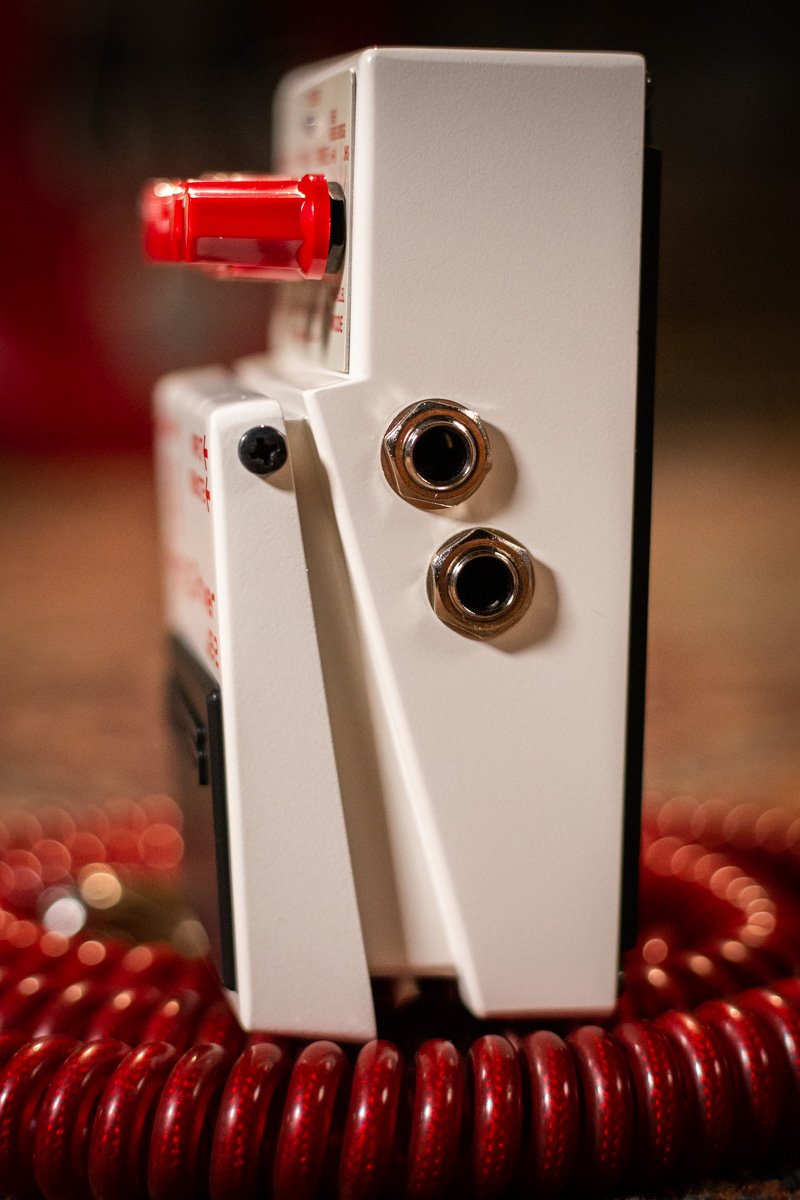

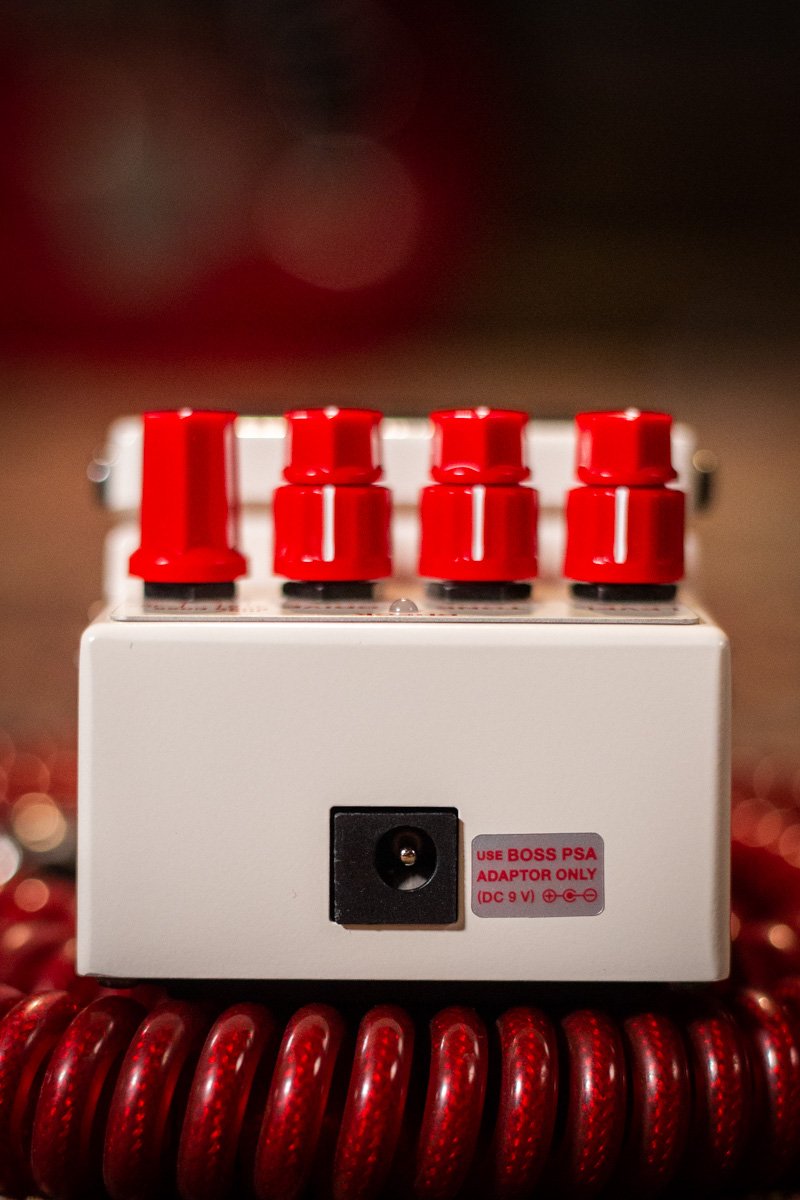

• Connectors: INPUT jack, OUTPUT jack, REMOTE jack, AC adaptor jack (DC 9 V)
• Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22) AC  adaptor (sold separately)
• Current Draw: 55 mA

Expected battery life under continuous use: Alkaline: Approx. 7 hours
Carbon: Approx. 2.5 hours
*These figures will vary depending on the actual conditions of use.

Accessories: Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
