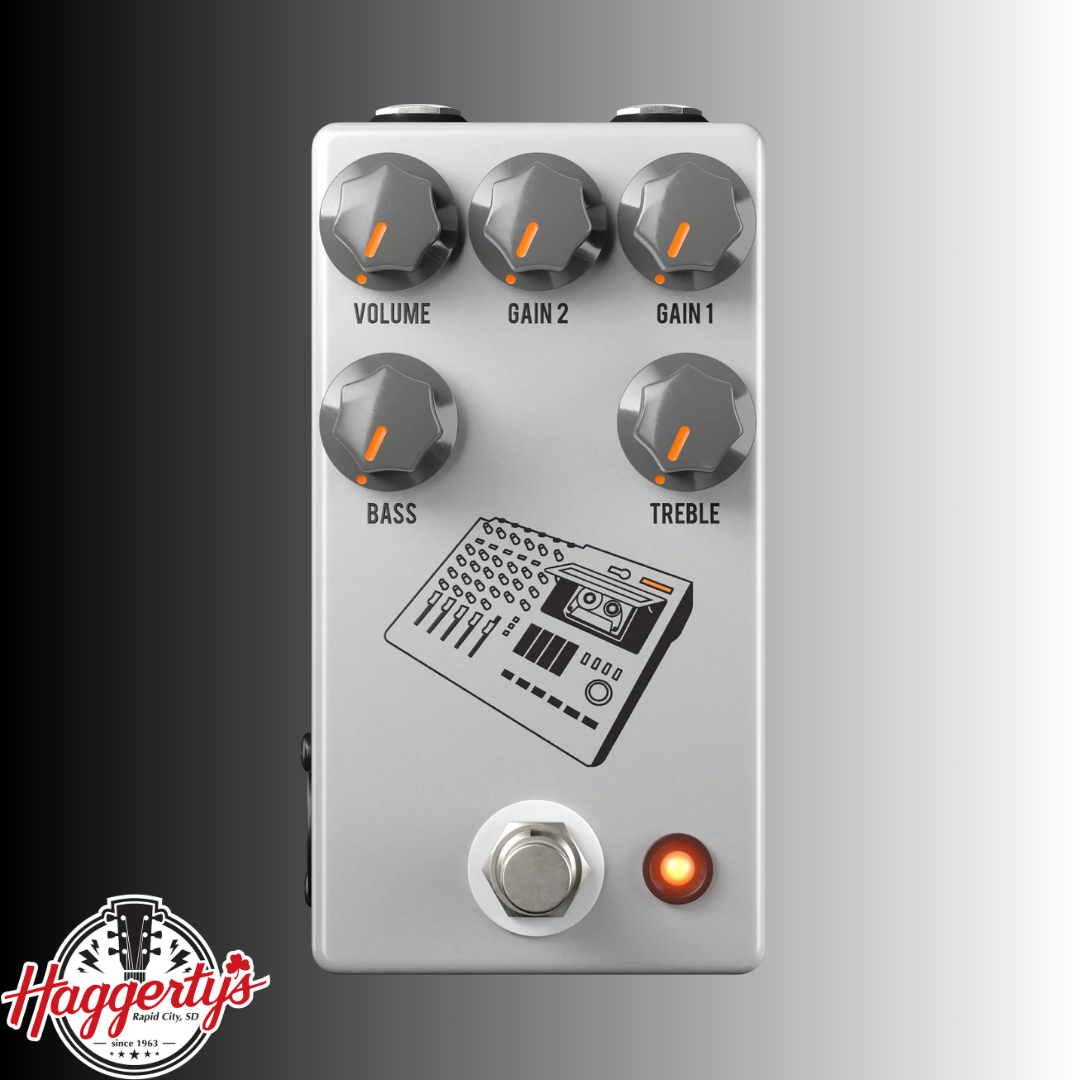

JHS 424 Gain Stage Pedal

This brand new JHS pedal will ship insured and inspected from Rapid City, SD.

Buy risk free with our 14 day - full refund, less shipping, return policy.  Check out our shop policies for more details.

The JHS 424 Gain Stage captures the unmistakable character of plugging directly into a TASCAM Portastudio 424, now in an easy-to-use pedal format. Perfect for players chasing the elastic cleans, lo-fi textures, or fully saturated fuzz you’d hear form artists such as Radiohead, Spoon, and Mac Demarco, the 424 Gain Stage offers the same tone-shaping flexibility as the original recording unit, thanks to faithfully recreated circuits with original UPC4570 and NJM4565 op-amps. Two gain stages, master volume, and dedicated bass and treble EQ let you sculpt everything from subtle boost to blown-out fuzz. The pedal includes both a 1/4” output and a balanced XLR DI output, making it equally at home on a pedalboard, in the studio, or on a recording desk. Whether you’re channeling modern bedroom pop tones or vintage lo-fi recordings, the 424 Gain Stage delivers authentic, colorful saturation and dynamic feel, and it’s available right now at Haggerty’s Music.

Features/Specs

General

• Circuit: Faithful Recreation Of Original Portastudio 424 MKI Circuit
• Op-Amps: UPC4570 / NJM4565
• Bypass: Buffered Bypass (Silent Soft Touch Switching)
• Power: 9VDC Center Negative (50mA Consumption)
• Dimensions: 2.6" x 4.8" x 1.6"

Controls

• Volume (Master): Sets Overall Output Level
• Gain 1 (Trim): Adjusts Preamplification Of Input Signal
• Gain 2 (Channel): Sets Volume Level Of Second Gain Stage
• Bass: Cuts Or Boosts Low Frequencies
• Treble: Cuts Or Boosts High Frequencies

Inputs/Outputs

• Input: 1/4" (Top Right)
• Output: 1/4" (Top Left)

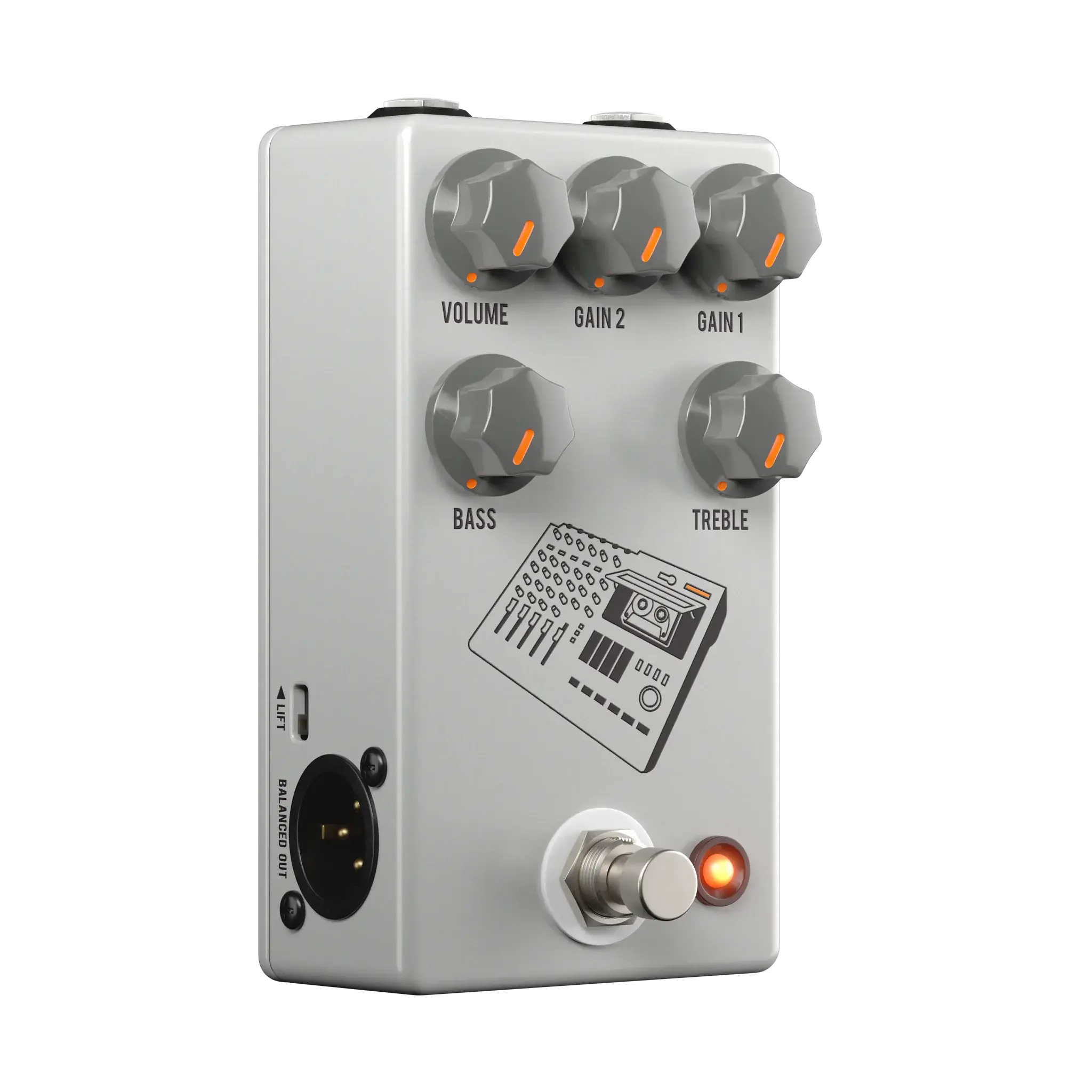

• XLR Output: Balanced DI Output (Can Be Used Simultaneously With 1/4" Output)
• Ground Lift: Dip Switch For Reducing Hum/Buzz When Using XLR Output

Applications

• Direct Recording: Produces Identical Texture To Original Portastudio Input
• Amp Integration: Functions As Gain Stage, Overdrive, Or Saturated Fuzz
•  Dual Output Capability: Use A/B/Y Switching To Send Signal To Amp And Mixer Simultaneously
