Vox AC30HWR2X Handwired Combo Amp
4959112237599

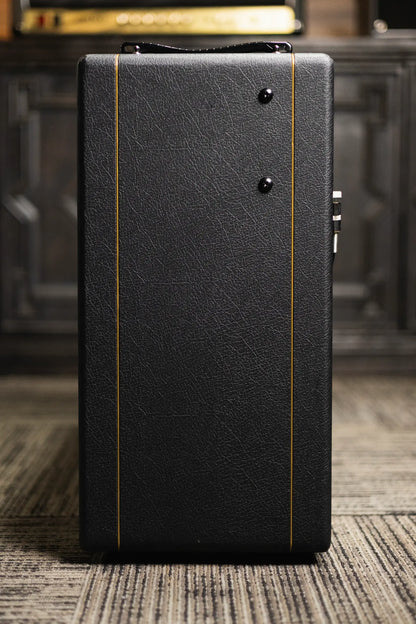

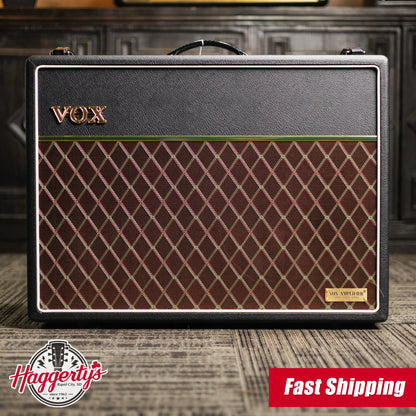

-YOU ARE VIEWING PHOTOS OF THE ACTUAL AMP BEING SOLD!
This brand new Vox will ship insured and inspected from Rapid City, SD.
Buy risk free with our 14 day - full refund, less shipping, return policy. Check out our shop policies for more details.
The Vox AC30HWR2X is a handwired reissue that brings the legendary AC30 tone of the 1960s into the modern age with painstaking detail. Every part of this amplifier, from the power supply and output transformer to the cabinet thickness and speaker choice, was carefully studied and replicated to capture the unmistakable compression, sag, and harmonic richness of vintage Vox amps. The result is an amplifier that delivers the warmth, shimmer, and dynamic response that made the original AC30 a cornerstone of rock history.

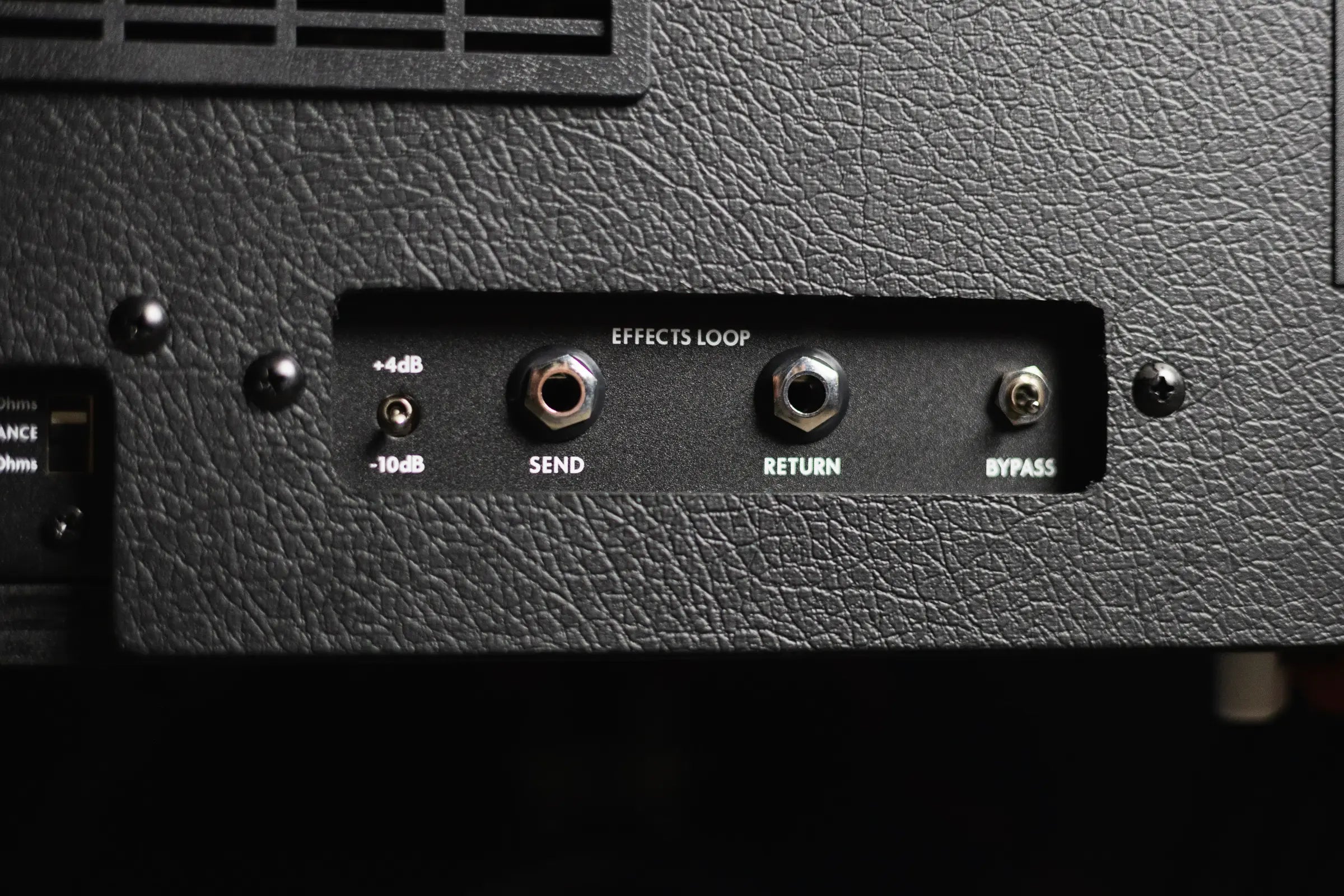

Equipped with four EL84 power tubes, a GZ34 rectifier, and dual Celestion Alnico Blue 12” speakers, the AC30HWR2X offers 30 watts of iconic chime and roar. The Normal and Top Boost channels each provide their own tonal palette, with the Top Boost adding sparkling highs and tonal control via treble and bass. A newly designed spring reverb unit, buffered FX loop, and external speaker outs give players modern flexibility while retaining pure vintage character.
Handwired craftsmanship ensures unmatched reliability and tone purity, while practical additions like the included VFS1 footswitch for reverb make it stage-ready. For guitarists chasing the ultimate in vintage-inspired sound with uncompromising build quality, the AC30HWR2X is a true flagship amplifier, and it’s available right now at Haggerty’s Music.
Features / Specs
Highlights

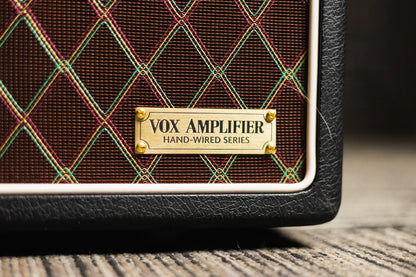

- Series: Handwired
- Orientation: Right-Handed
- Color: Vintage Vox Black with Brown Grill Cloth
Electronics / Amp Section
- Output Power: 30W RMS into 8/16Ω
- Power Tubes: 4 × EL84
- Preamp Tubes: 4 × ECC83/12AX7, 1 × ECC81/12AT7
- Rectifier Tube: 1 × GZ34
- Channels: Normal, Top Boost

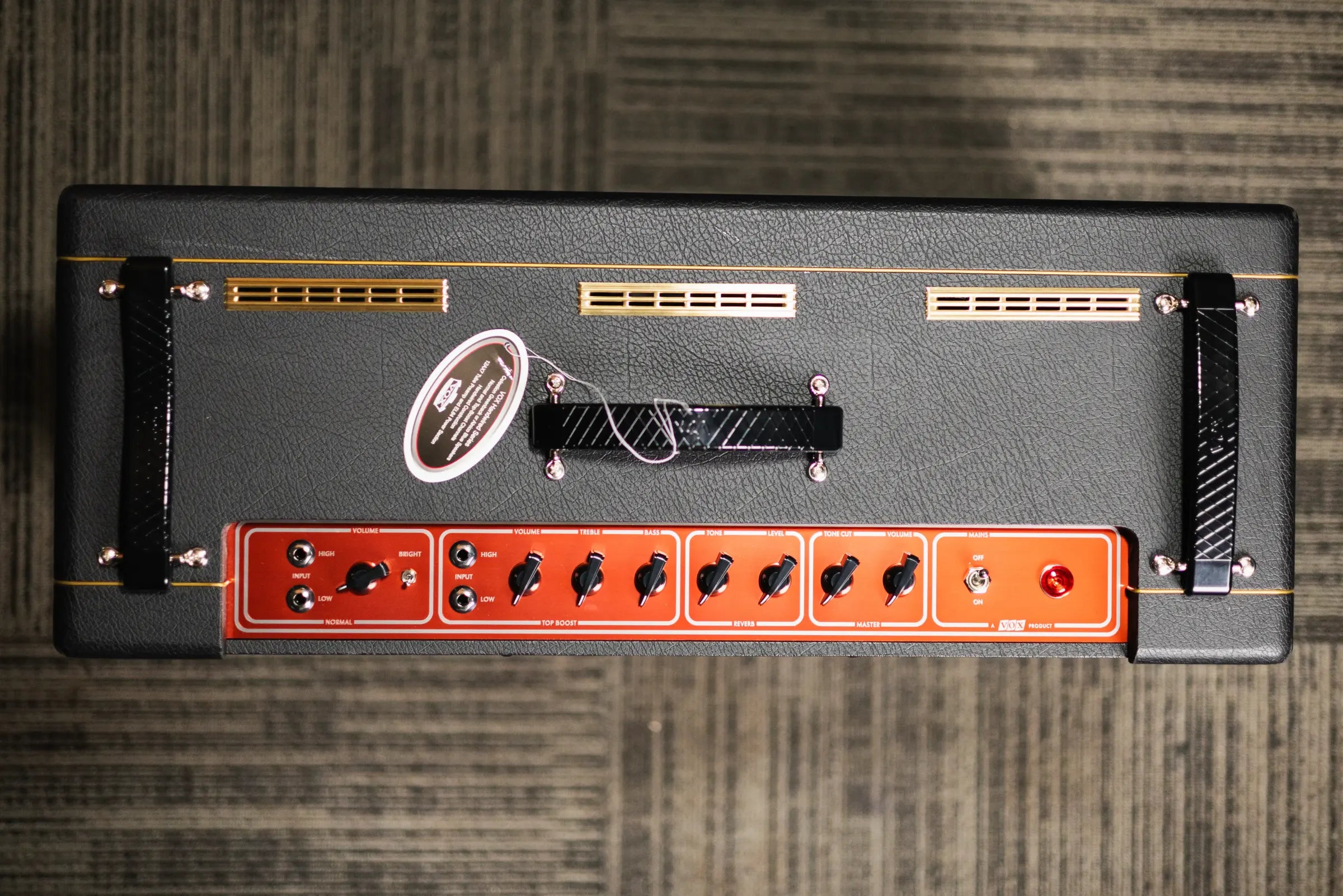

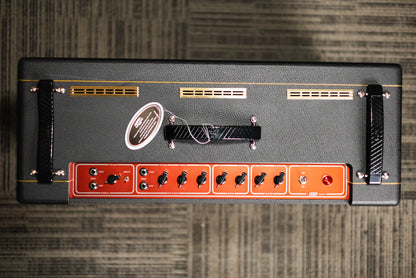

- Channel Controls:
- Normal: Volume, Bright Switch
- Top Boost: Volume, Treble, Bass
- Reverb: Spring Reverb with Tone and Level controls (Footswitchable)
- Master Section: Volume, Tone Cut
- Inputs: Normal (High/Low), Top Boost (High/Low), Footswitch, Return

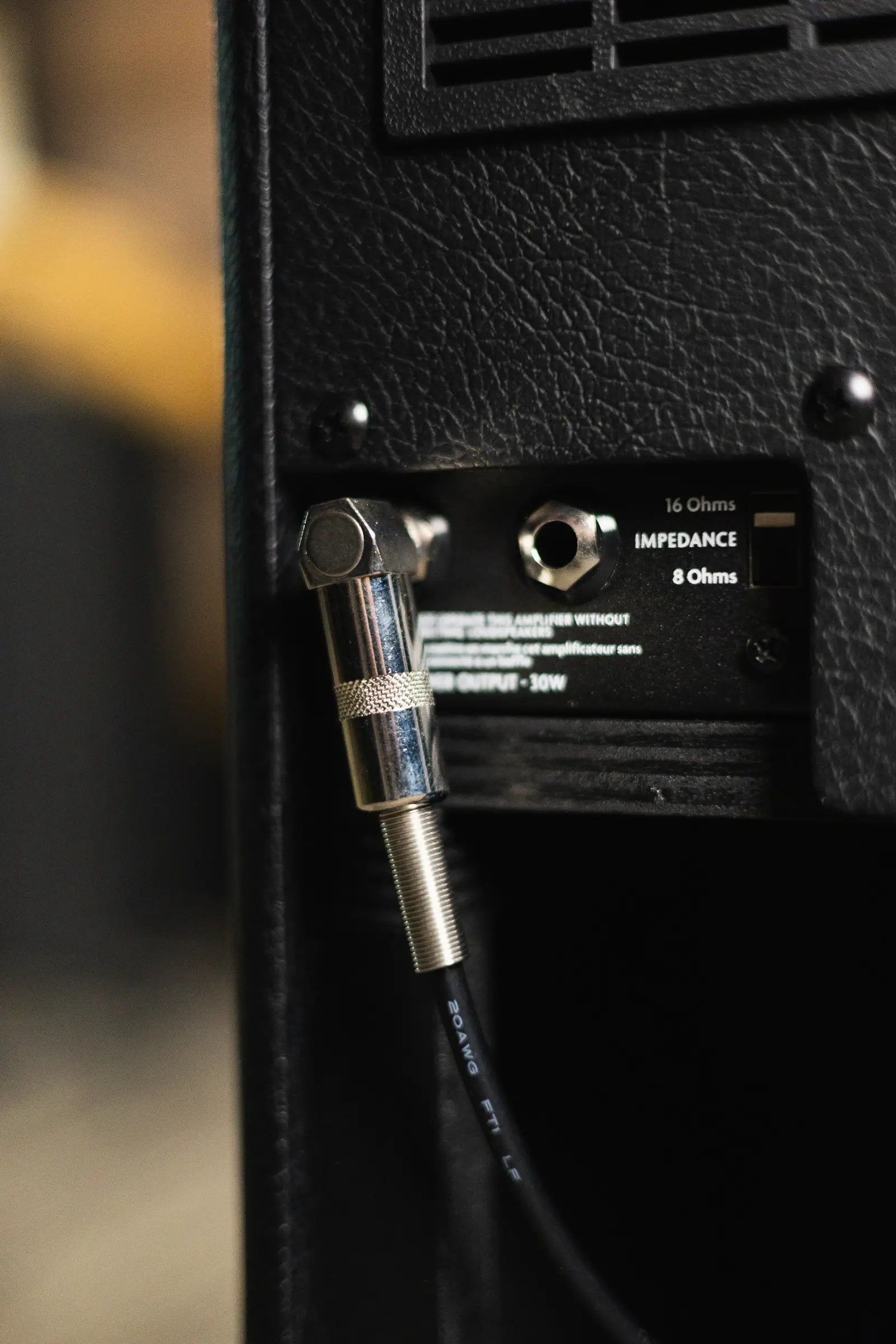

- Outputs: Power Output (x2), Send
Speaker

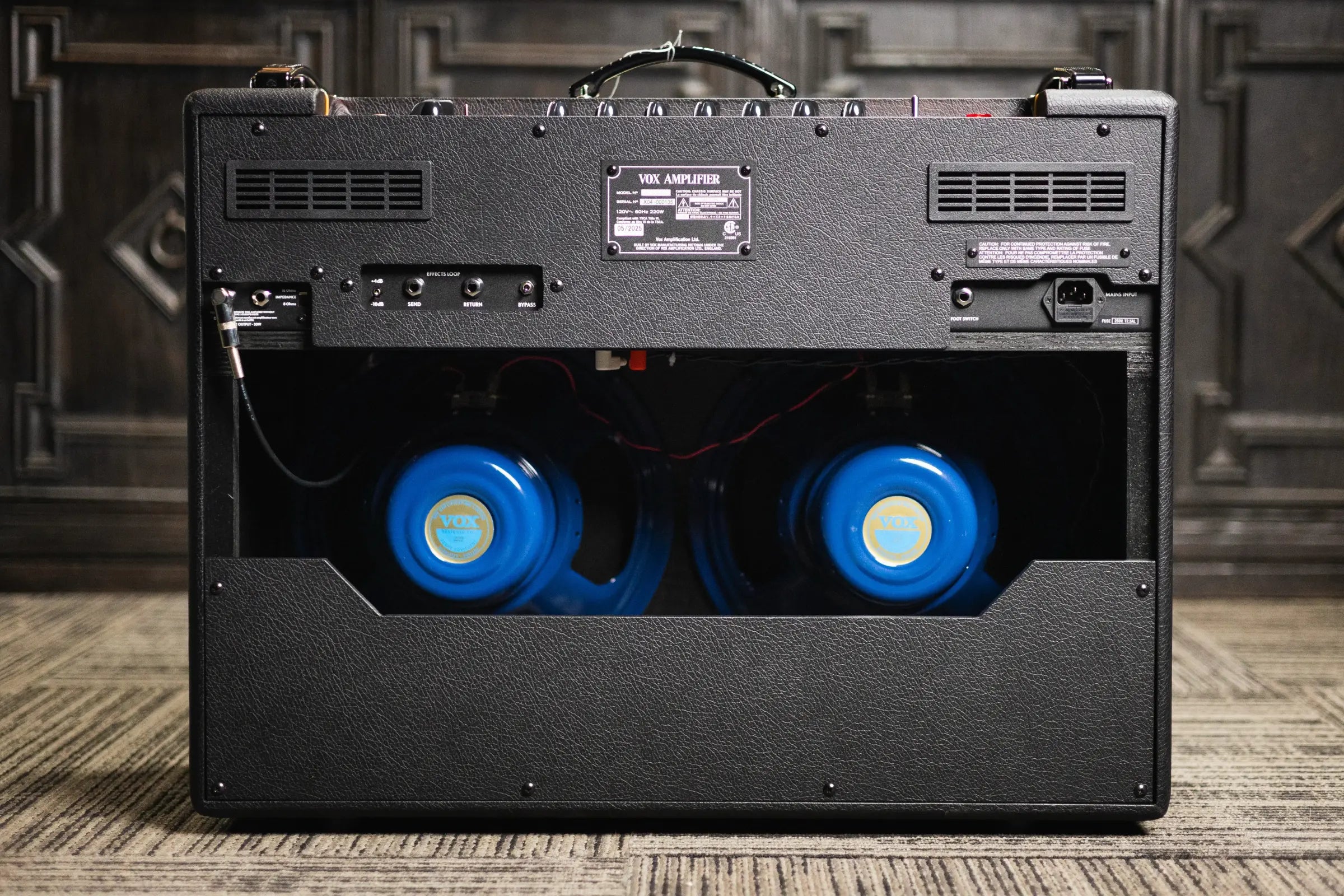

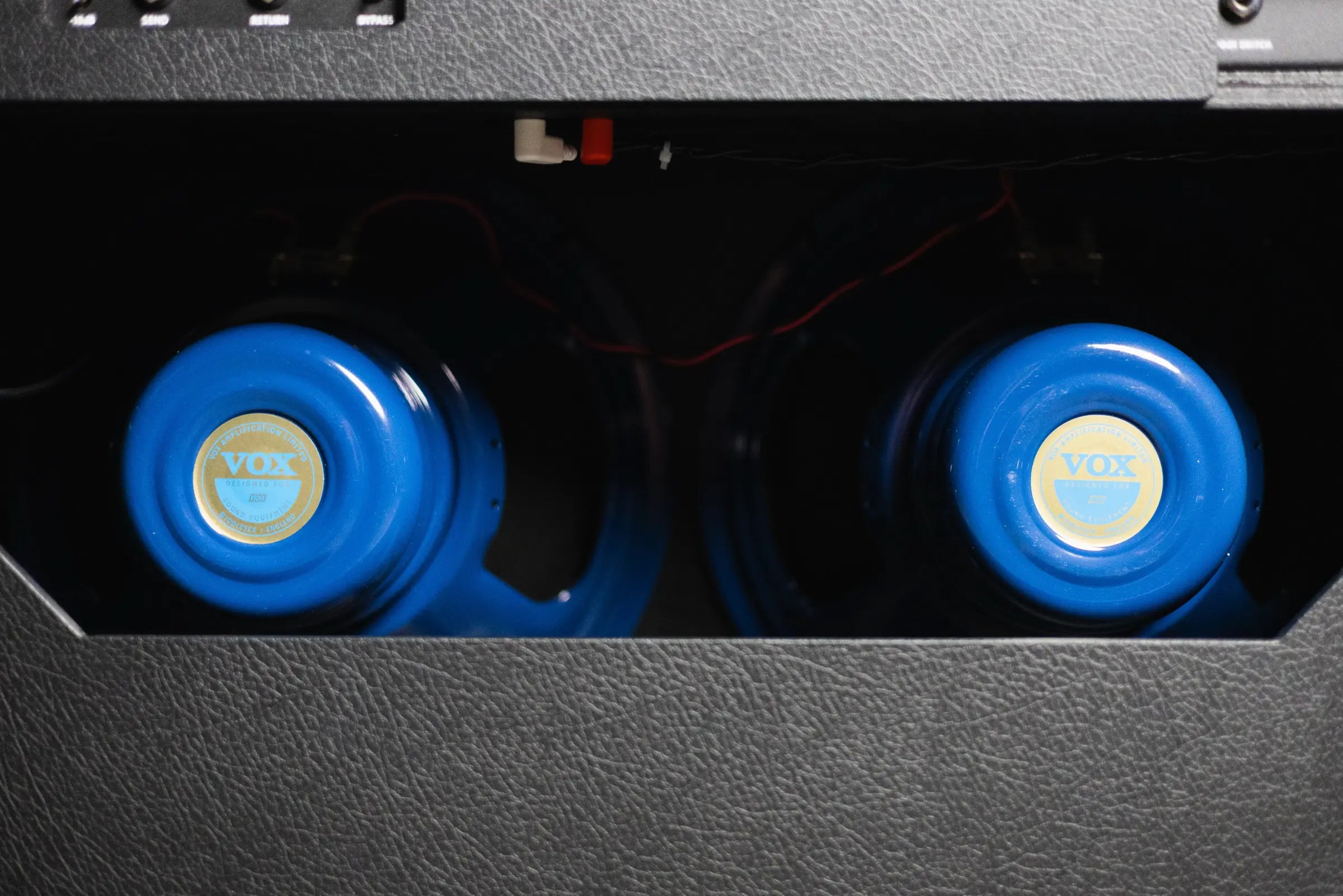

- Configuration: 2 × 12" Celestion Alnico Blue
- Impedance: 8Ω each
Cabinet
- Material: Vintage-style birch ply (Modeled after original AC30s)
- Dimensions (W x D x H): 27.76" × 10.35" × 22.32"
Hardware / Accessories
- Handle: Leather Strap Handle

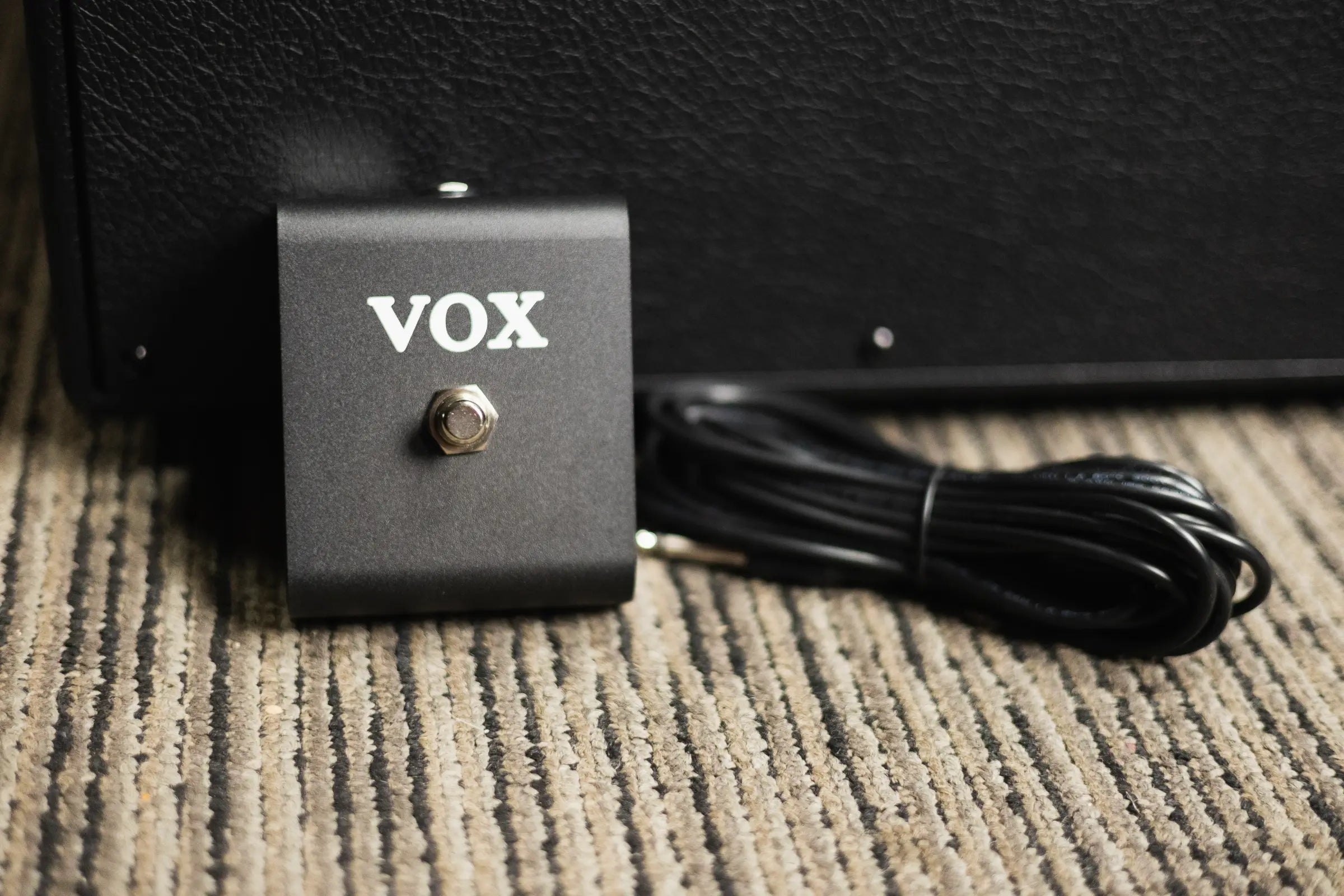

- Footswitch: VFS1 Included (Reverb On/Off)
- Accessories: Power Cable, Owner’s Manual
Miscellaneous
- Case/Cover: Not Included

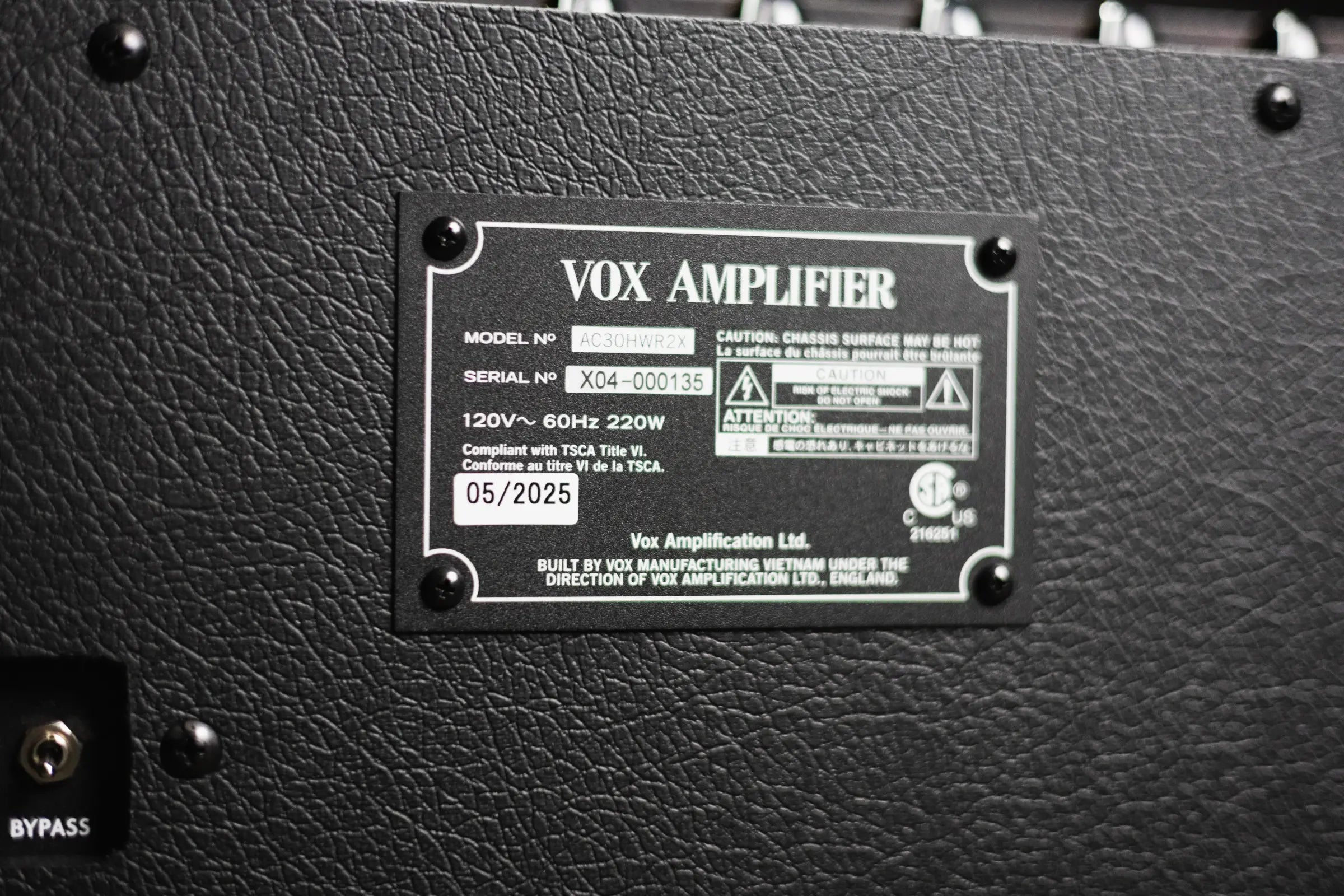

- Serial Number: X04-000135
- Manufacture Date: 2025
