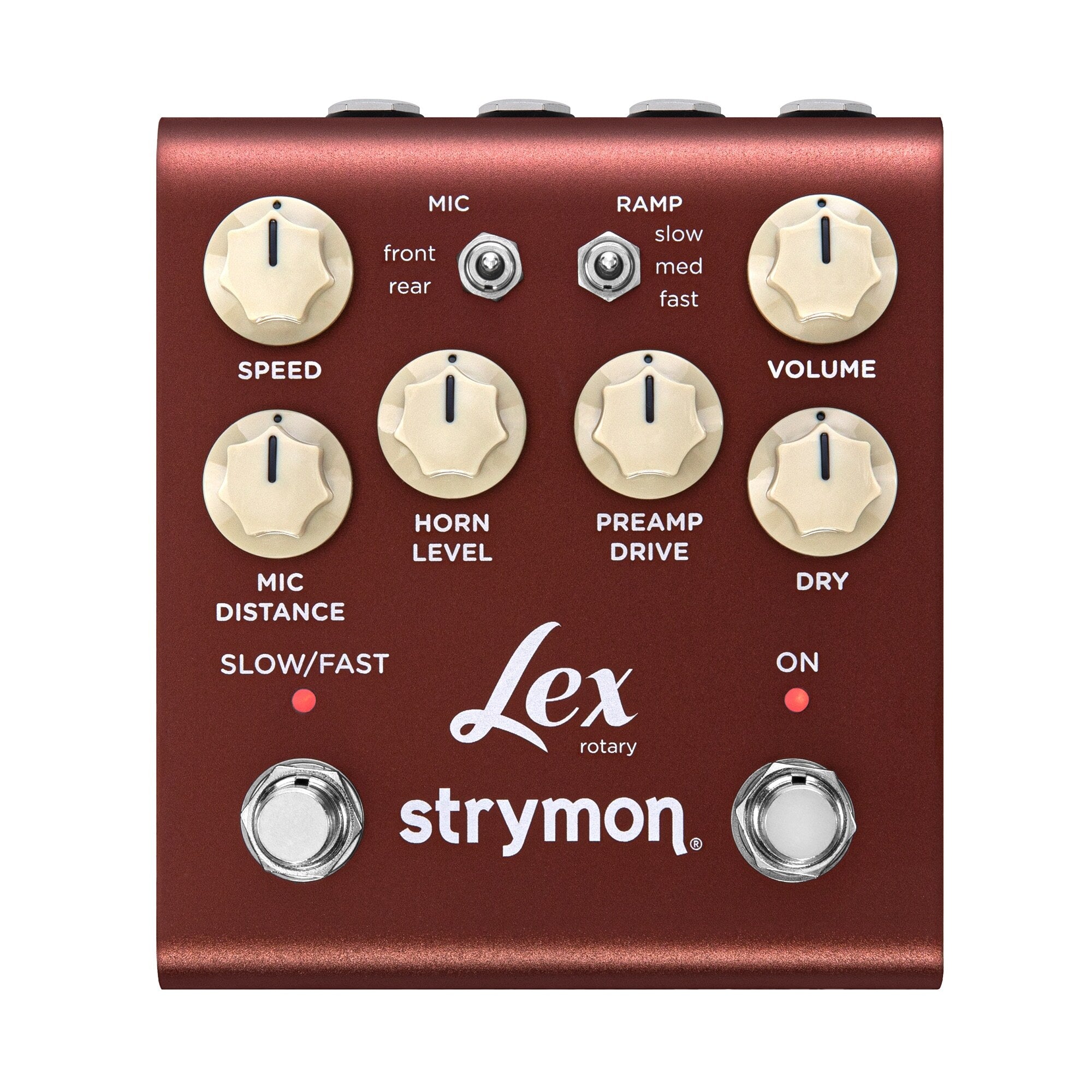

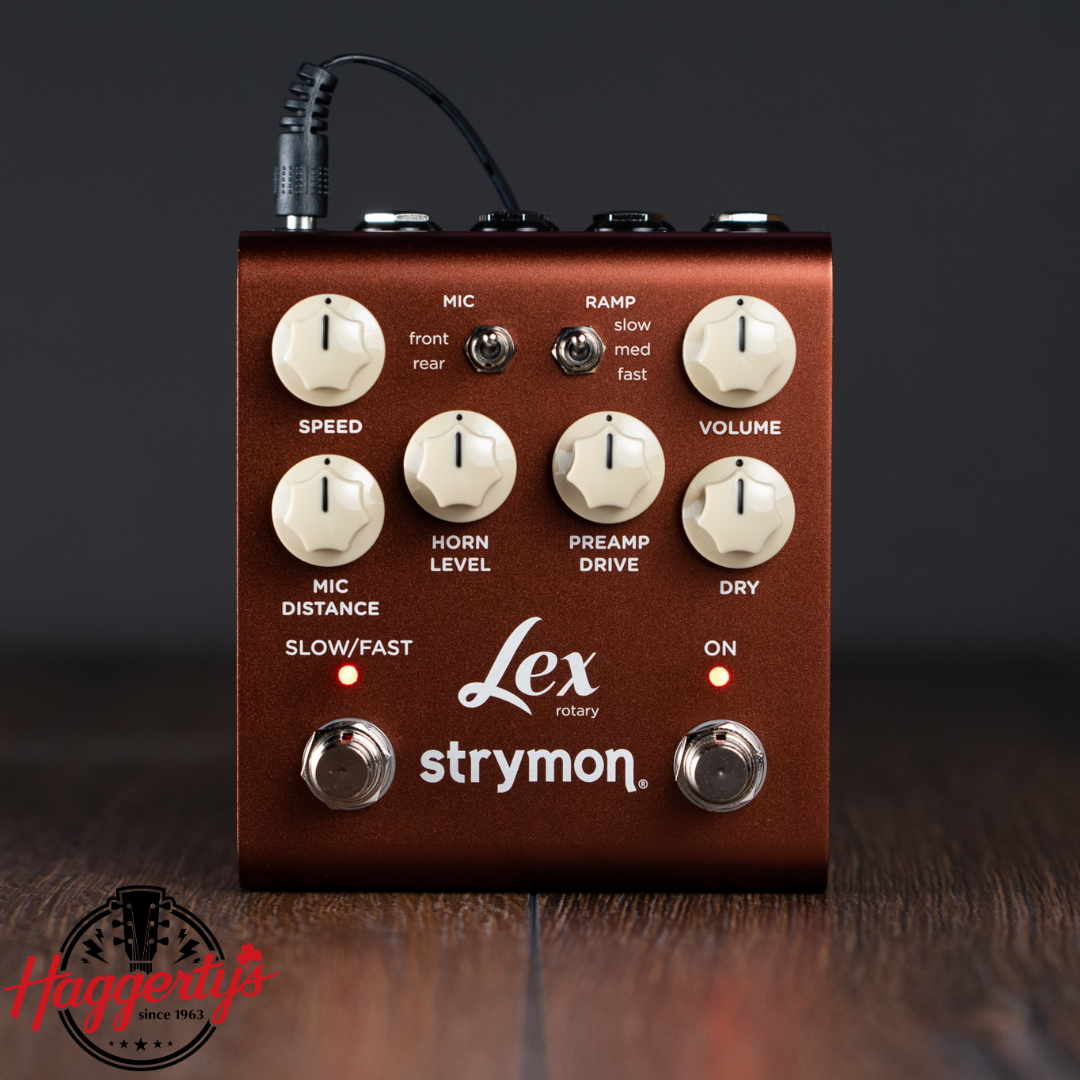

Strymon Lex Next Gen Rotary Pedal
Z12A-LEX2-1
This new Strymon will ship insured and inspected from our Rapid City, SD location.
Buy risk free with our 14 day - full refund, less shipping, return policy. Check out our shop policies for more details.
Take your tone to the next level with the Strymon Lex Next Gen Rotary Pedal, designed to give musicians total control over their sound with the authentic swirl and harmonics of a vintage rotary speaker — now available at Haggerty’s Music. This compact powerhouse delivers astonishing realism, recreating the complex motion and warmth of a dual-rotor speaker system with unmatched depth. Built for the modern player, Lex goes far beyond classic rotary tones with full MIDI implementation, stereo I/O, and an ultra-responsive Class A JFET analog front end. Whether you're syncing rotary speed to your tracks or dialing in studio-quality modulation on your synth, guitar, or keyboard rig, Lex adapts effortlessly to any setup. The pedal also includes a dedicated Slow/Fast footswitch, stereo operation in a compact chassis, selectable true or buffered bypass, and USB-C connectivity for firmware updates and DAW integration. A 9V DC power supply is included, ensuring you're ready to plug in and swirl away right out of the box.
Features / Specs

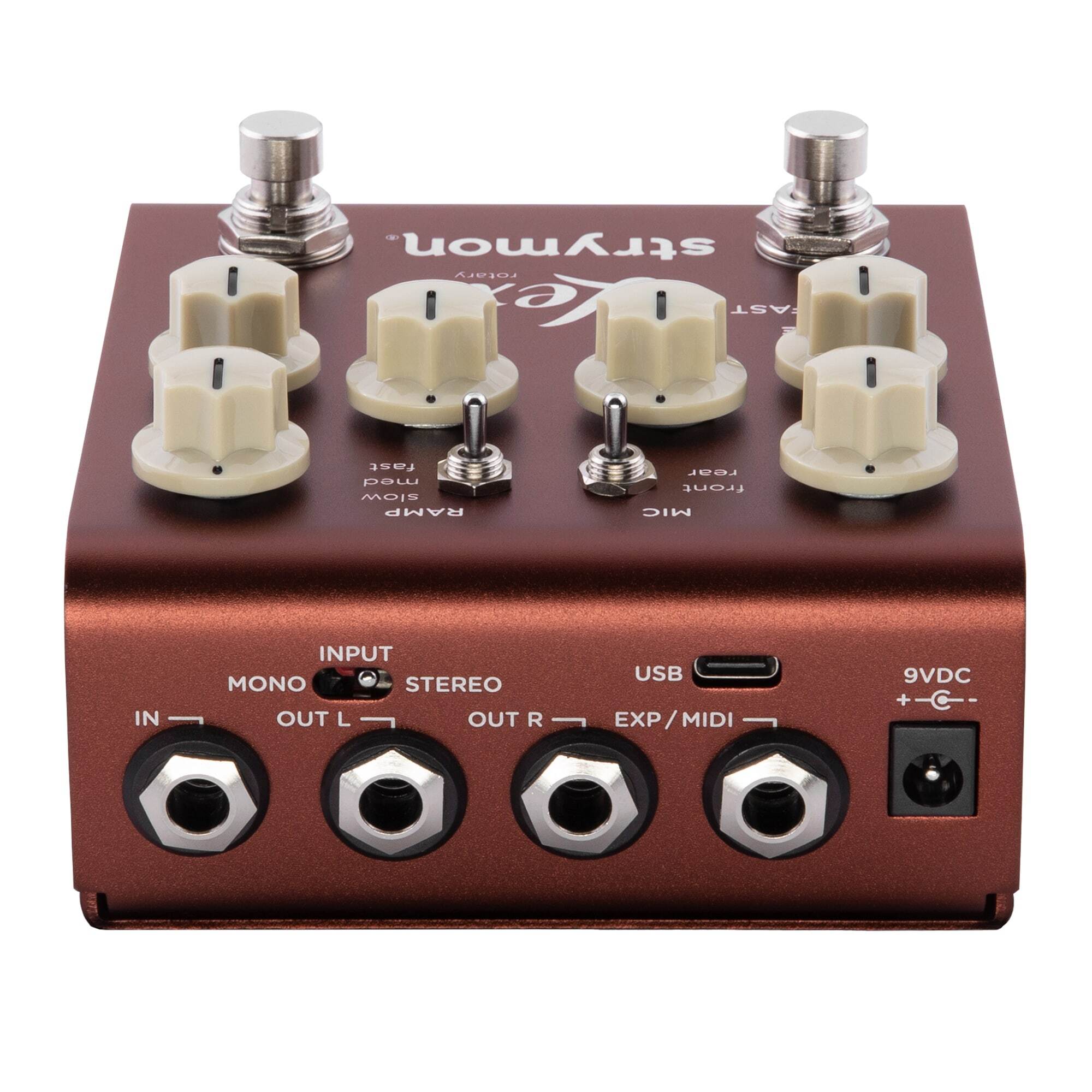

Ins, Outs, and Switches
- Stereo Input: TRS stereo input jack with rear-panel mono/stereo switch
- Stereo Outputs: Dual low-impedance TS output jacks for full stereo operation
- Expression/MIDI Control: TRS input supports expression pedals, MiniSwitch, MultiSwitch Plus, or TRS MIDI control
- USB-C Port: Enables MIDI control from a computer and firmware updates
- Footswitches: Dedicated Slow/Fast rotary speed switch and On/Off bypass switch
- Bypass Modes: Selectable true bypass (default) or high-quality buffered bypass
Audio Quality
- Analog Front End: Premium JFET Class A input with ultra-low noise
- Converters: High-performance 24-bit / 96kHz A/D and D/A conversion
- Processor: 520MHz ARM Superscalar processor with 32-bit floating point processing
- Frequency Response: Full-range 20Hz – 20kHz output
- Input Impedance: 1M Ohm
- Output Impedance: 100 Ohm
- Dynamic Response: Exceptional touch sensitivity and analog-like feel
Miscellaneous
- Presets: Store and recall up to 300 MIDI presets
- Sync Capabilities: Supports MIDI Clock Sync for rotary speed
- Signal Level Options: Switchable instrument or line level for use with guitars, synths, keyboards, effects loops, and more
- Chassis: Durable and lightweight anodized aluminum in a compact format
- Dimensions: 4.5” (D) x 4” (W) x 2.4” (H) / 11.43 cm x 10.16 cm x 6.1 cm
- Power Requirements: 9V DC center-negative, 300mA minimum
- Made In: Designed and built in the USA
- Included Accessories: 9V DC power supply
