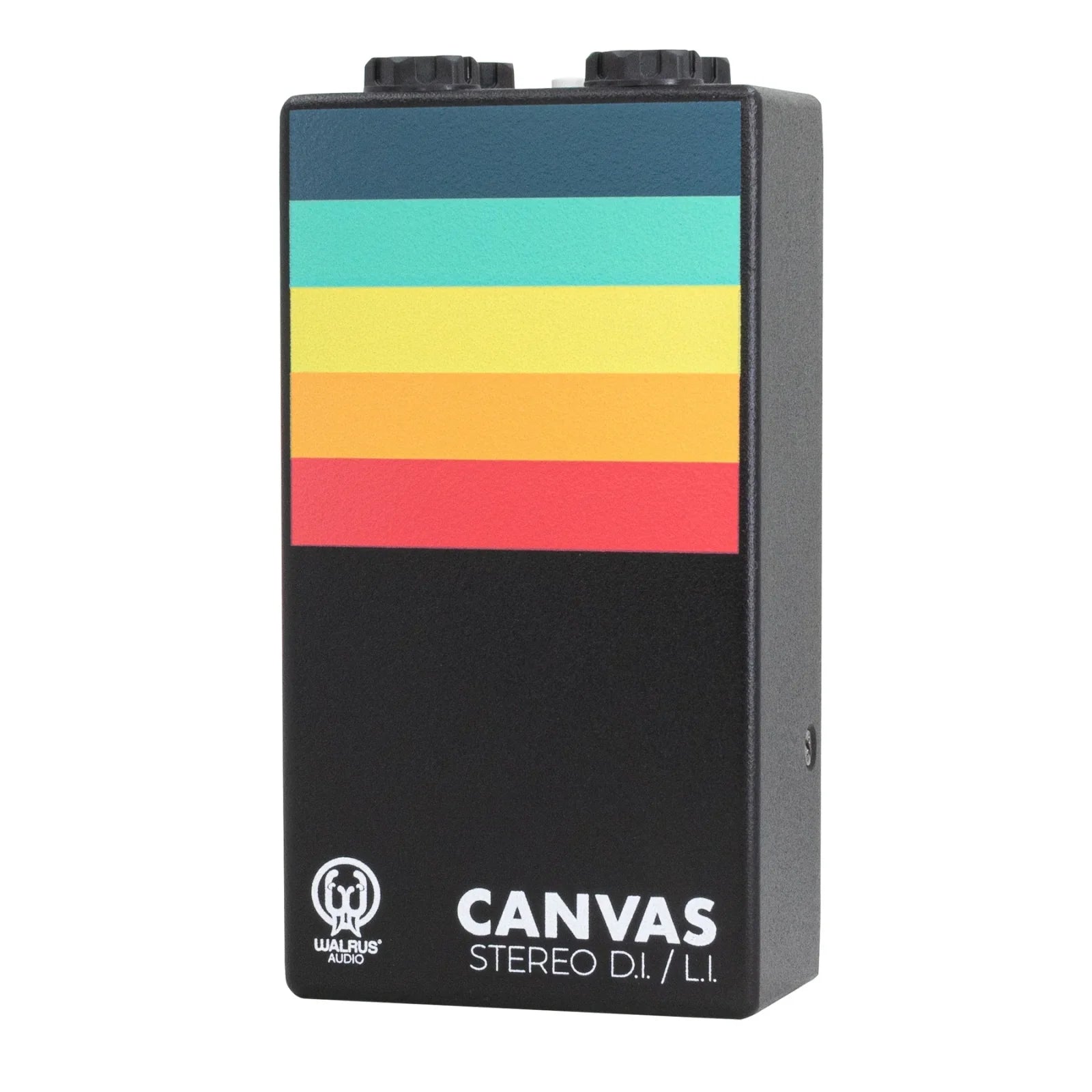

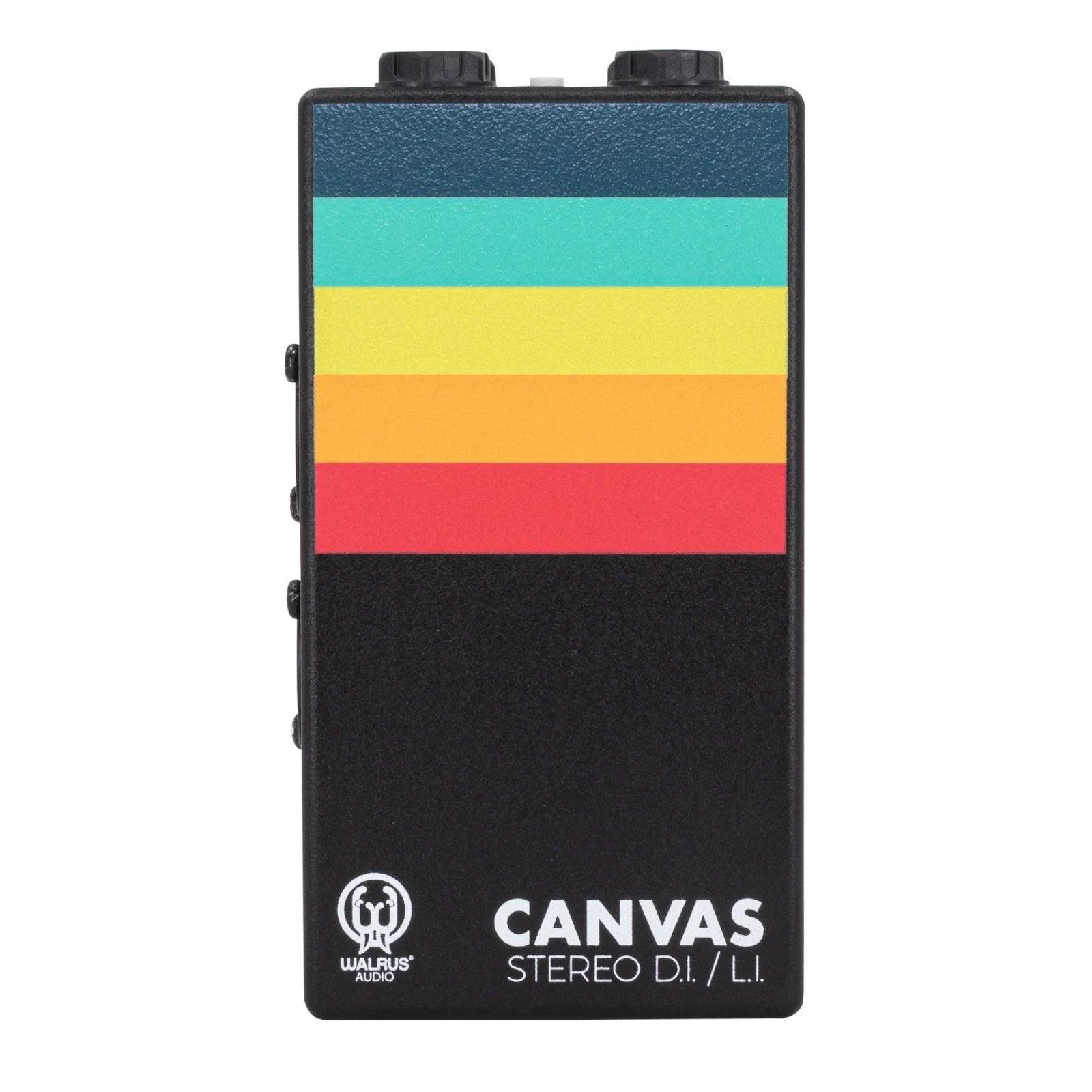

Walrus Audio Canvas Stereo Dual Line Isolator/D.I
Canvas
This new Walrus Stereo Dual Line Isolator/D.I will ship insured and inspected from our Rapid City, SD location.
Buy risk free with our 14 day - full refund, less shipping, return policy. Check out our shop policies for more details.
Canvas Stereo is a Passive Line Isolator (LI) and Direct Injection (DI) device that converts your unbalanced signals into balanced signals for interfacing properly with your recording interface or mixer at front-of-house. If you’re using an amp-in-a-box (DSP Guitar Rig), like our ACS1, keyboards, or any other instrument utilizing both left and right outputs, then the Canvas Stereo is your new bridge to the front-of-house. The Canvas Series DIs pack everything you need from a DI/LI into a standard pedal-sized enclosure designed to look great right on top of your board.
Canvas Stereo Features:
- Flat frequency response from 20Hz-20kHz

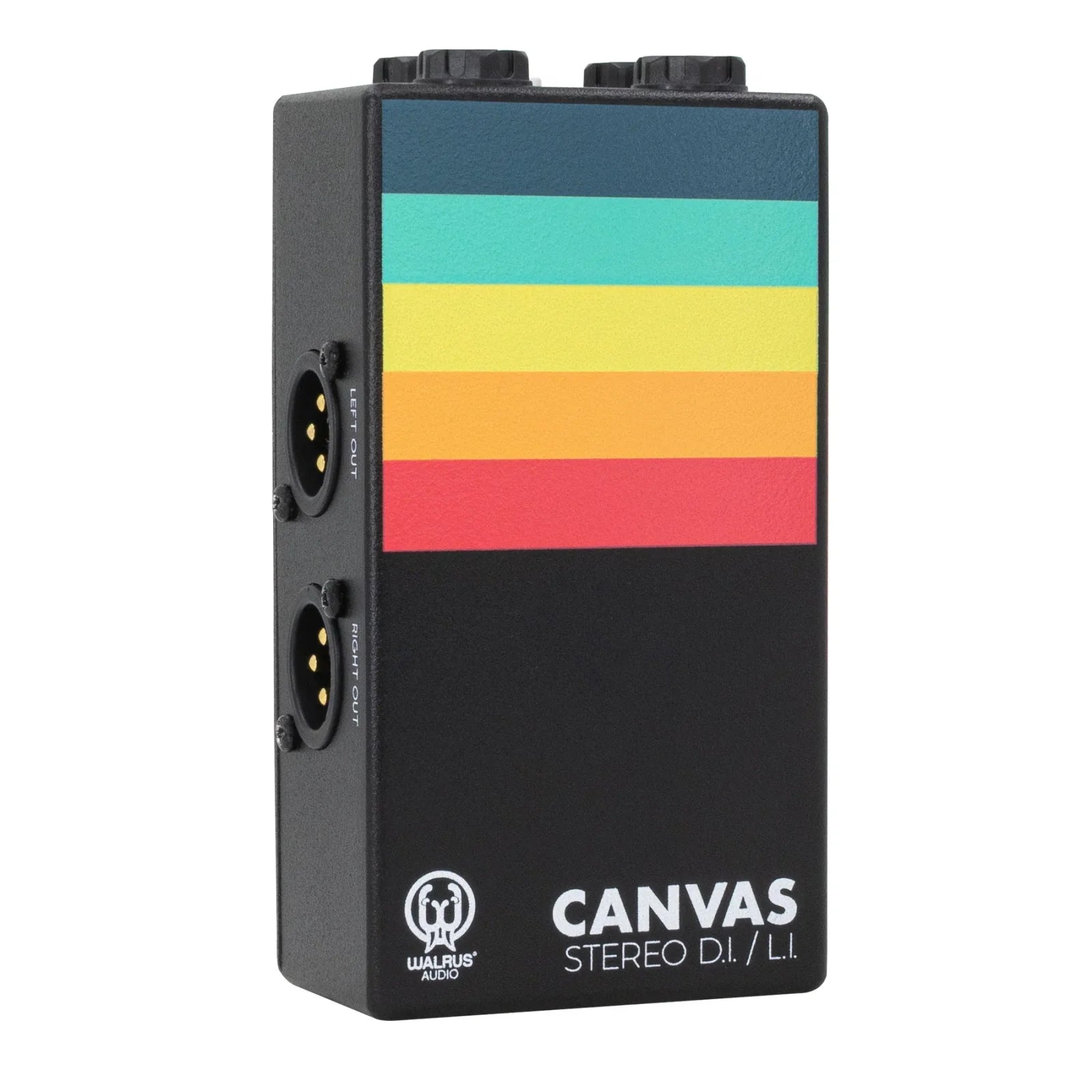

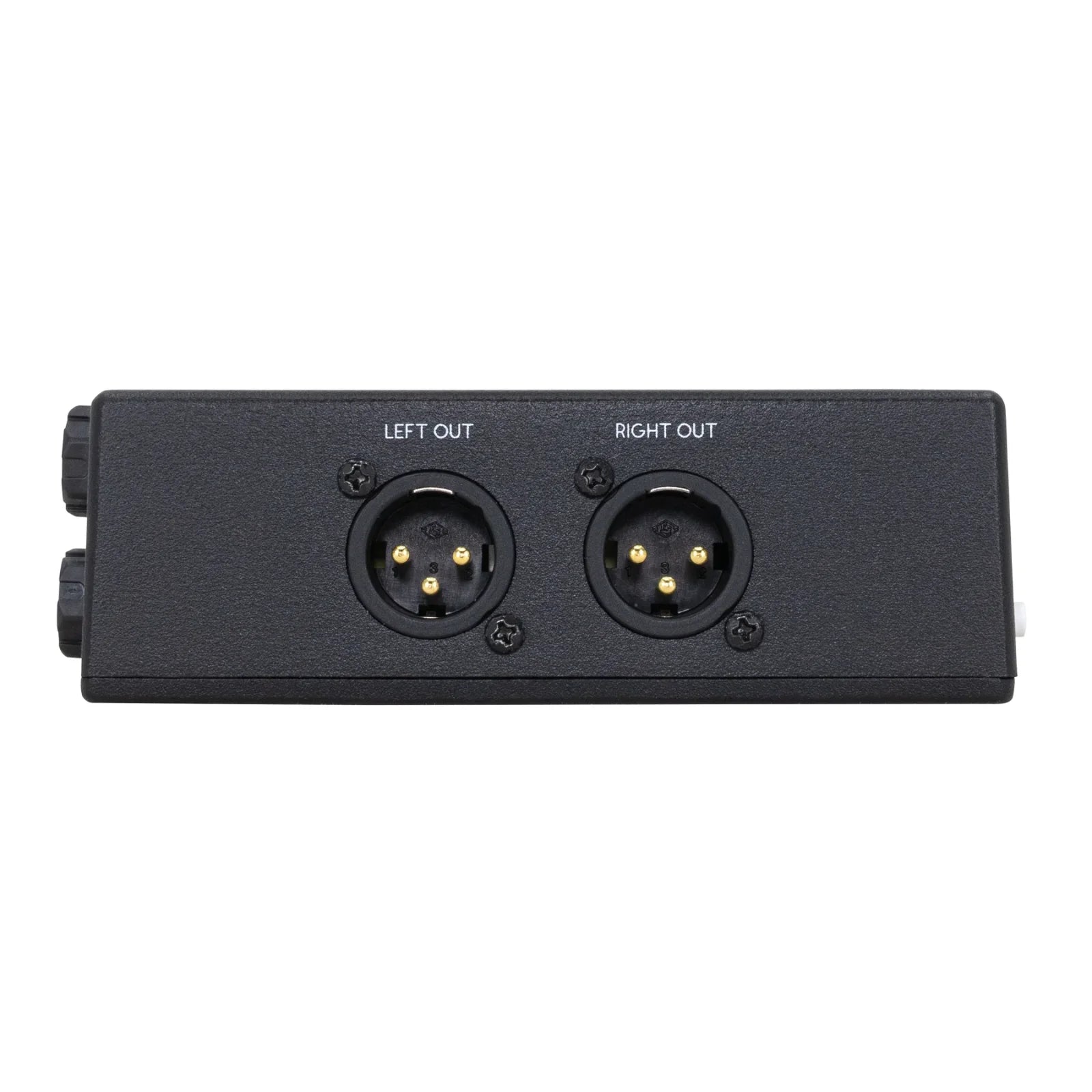

- Converts ¼” unbalanced input to XLR balanced output.

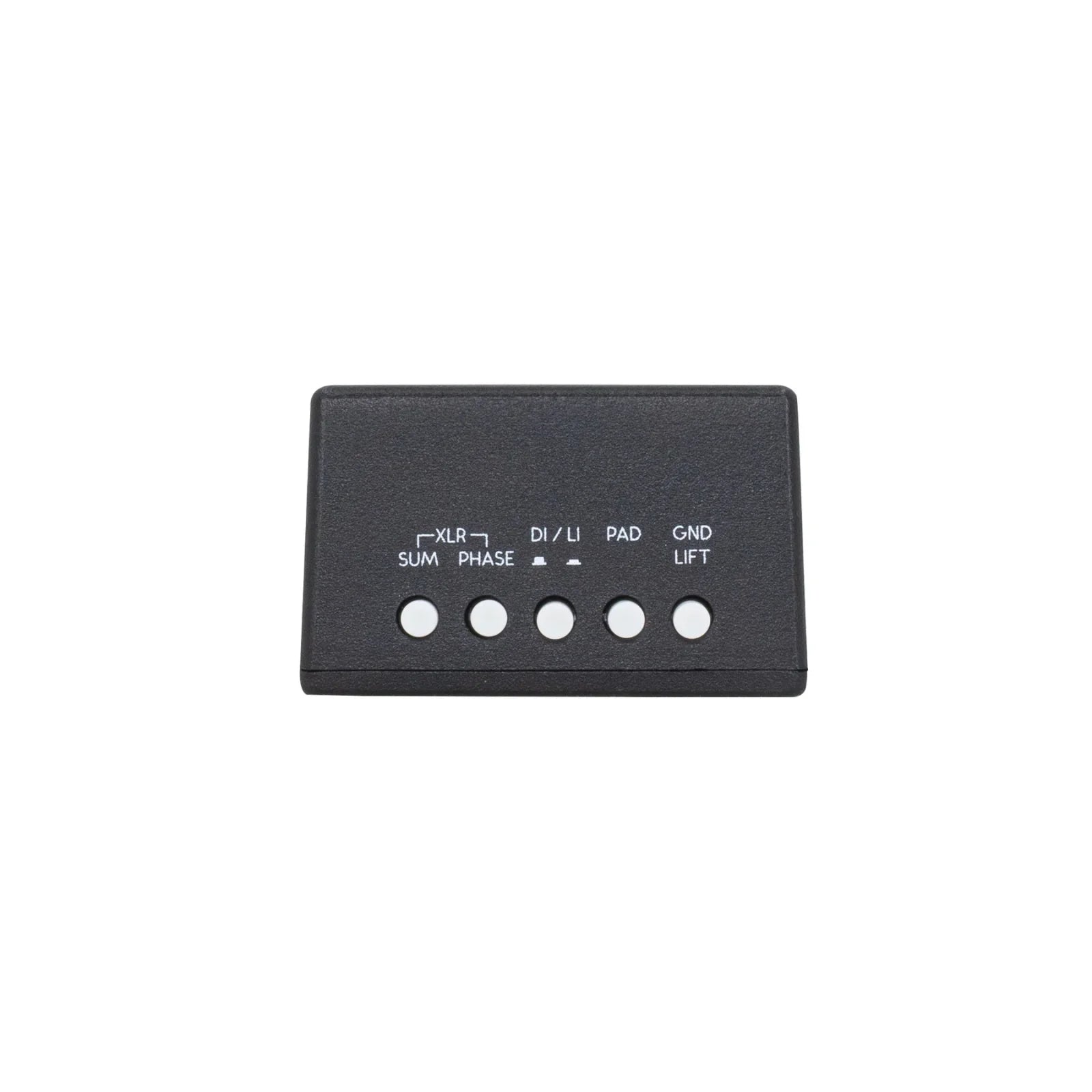

Transformer isolated output. - Sum XLR - Sums the Left and Right XLR outputs together, combining them to form a mono balanced signal if only one XLR input is available at the mixer/interface. The Right XLR out will be disabled, and the combined signal will be on the Left XLR out.

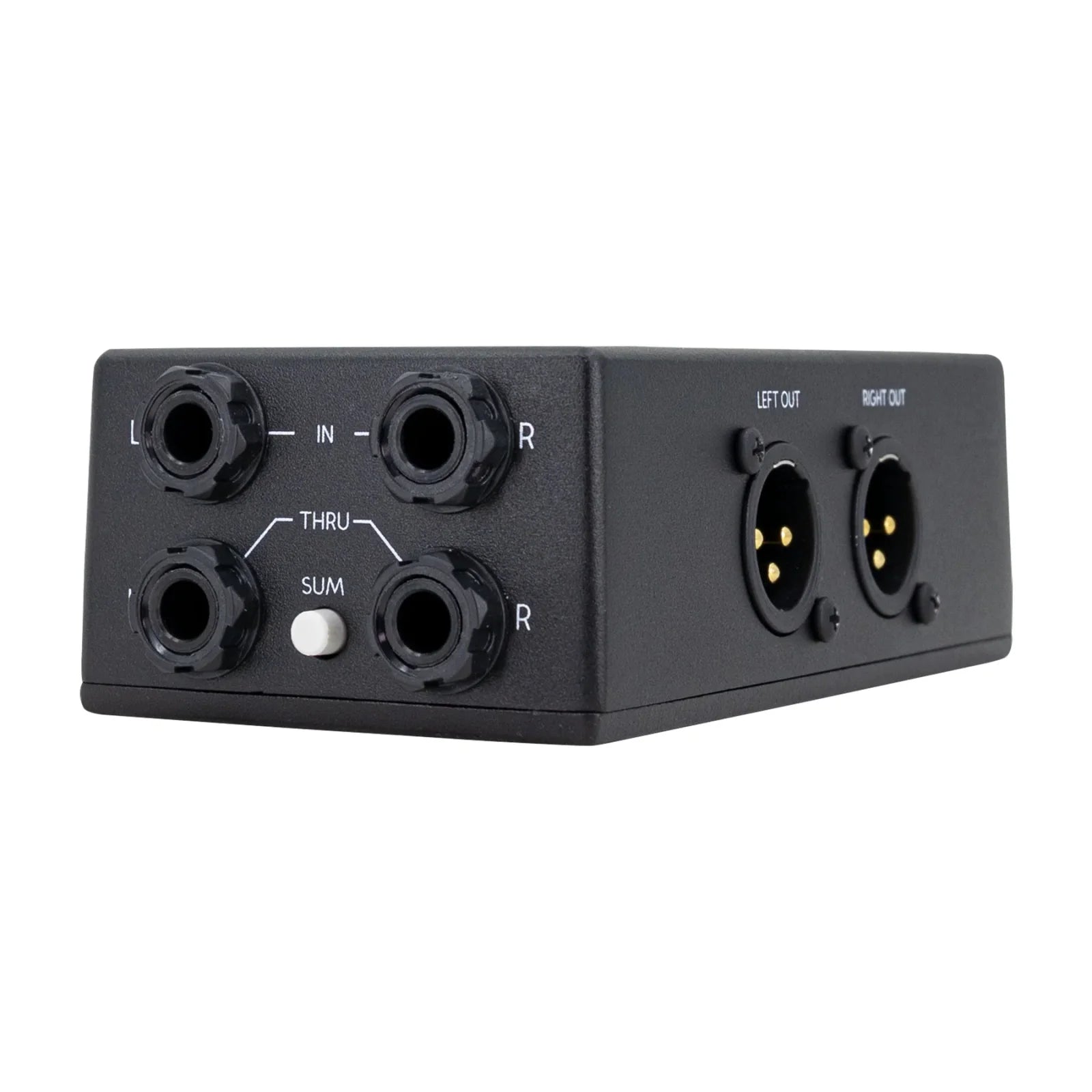

- Sum Thru switch - When engaged (in), Sum connects the left and right thru jacks together to combine the signals for running into a single amplifier (use either thru jack).
- XLR Phase flip - Flips the phase of the Right XLR output relative to the Left, fixing out-of-phase issues in stereo setups.
- Pad: Enables a -15dB input pad (Only in D.I. mode) for reducing hot signals in order to minimize distortion.
- D.I./L.I.: Choose between Direct Injection or Line Isolator modes (Out for DI, In for LI)
- GND Lift: Isolates the GND pin on XLR to help reduce hum if present. Leave out for normal operation.
- Custom wound transformers for low THD (Total Harmonic Distortion) and full frequency response.
Direct Injection:
Line Isolator:
DI or LI?
High Impedance = anything above 1k = Use DI
Low Impedance = less than 1k = Use LI
Troubleshooting:
