RockBoard FlaX Plug MIDI Cable - 30 cm / 11-13/16"

Note: This item is considered a consumable and is not covered under warranty.
Cables and Connectors are eligible for return within 30 days of purchase if dead on arrival (e.g., signal not passing through one leg). Faulty solder joint or internal conductor under normal handling, connector not fitting properly (manufacturing defect).

As the next step of the RockBoard® Flat MIDI Cables, the RockBoard® FlaX Plug MIDI Cables allow maximum freedom in setting the plug orientation, thanks to their compact omnidirectional construction. Almost every angle is easily adjustable. The direction of the connector is fixed by two screws securely. Everything is possible, straight, angled, and everything between; this makes it very easy to adapt to the corresponding equipment. The flat, rectangular conductor cable effectively reduces twisting and prevents damage to the cable core. The 5-pin assignment guarantees the implementation of almost any MIDI application.

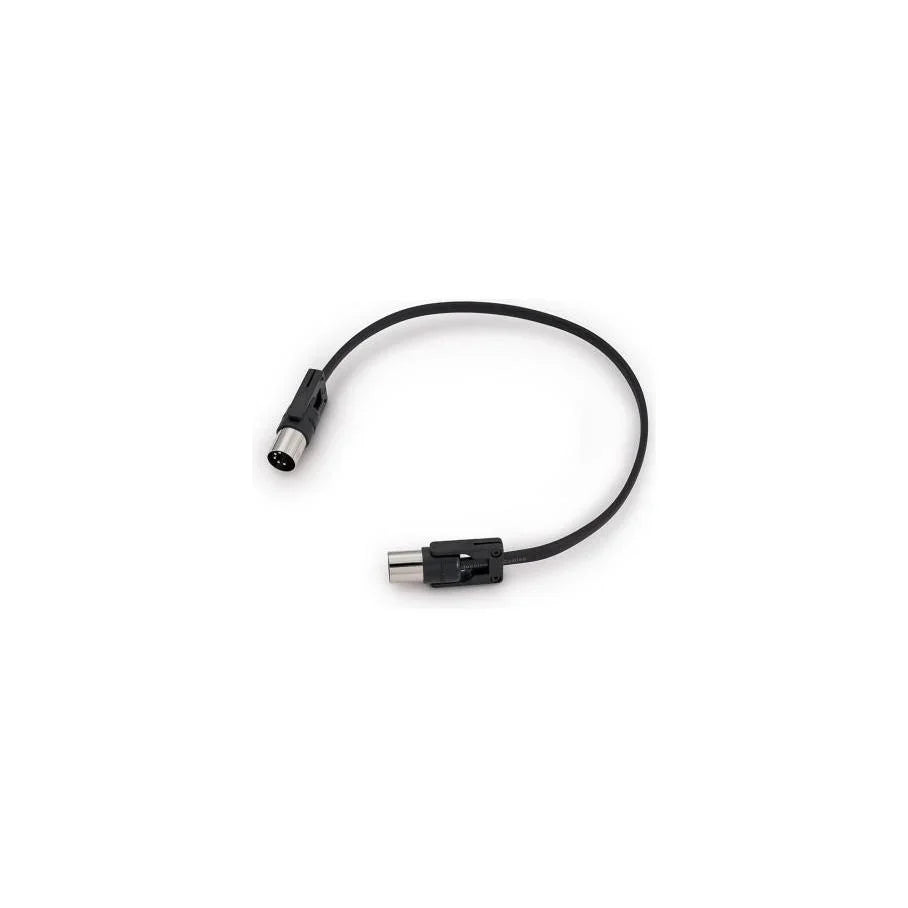

RockBoard FlaX Plug MIDI Cable

• Flat MIDI cable with omni-directional, lockable compact plugs
• Plug orientation alterable from straight to angled to the left or right
• Orientation lockable via 1.5 mm hex key wrench (not included)
• Flat rectangular cable, prevents cable breakage and cable jams
• Compact DIN 5-pin plugs
• 5 x flexible oxygen-free copper conductors 5 x 7 x 0.12 mm
• Suitable for Clock/SYNC Capabilities & Phantom Power
• Max. rated current 1A
• Outer insulation: PVC (Polyvinylchloride)
• Operating temperature: -20° C to +60° C (-4° F to 140° F)
• Dimensions plug (L x W x H): 33 x 20 x 15 mm (1 19/64" x 25/32" x 19/32")
• Dimensions cable (W x H): 6.5 x 3.5 mm (1/4” x 9/64”)
• Black
