Sencore PR570 Powerite II Variable Isolation Transformer & Safety Analyzer - Used

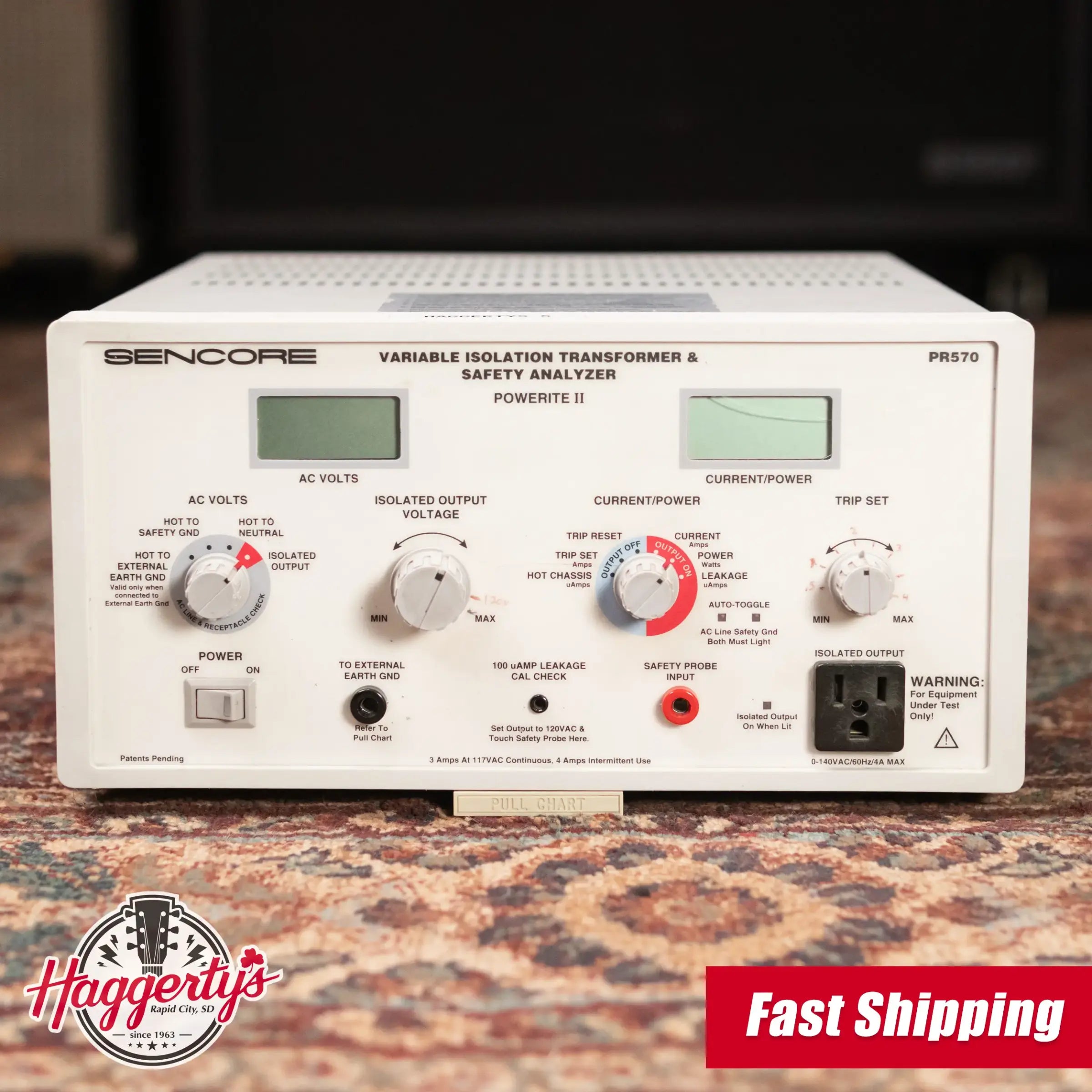

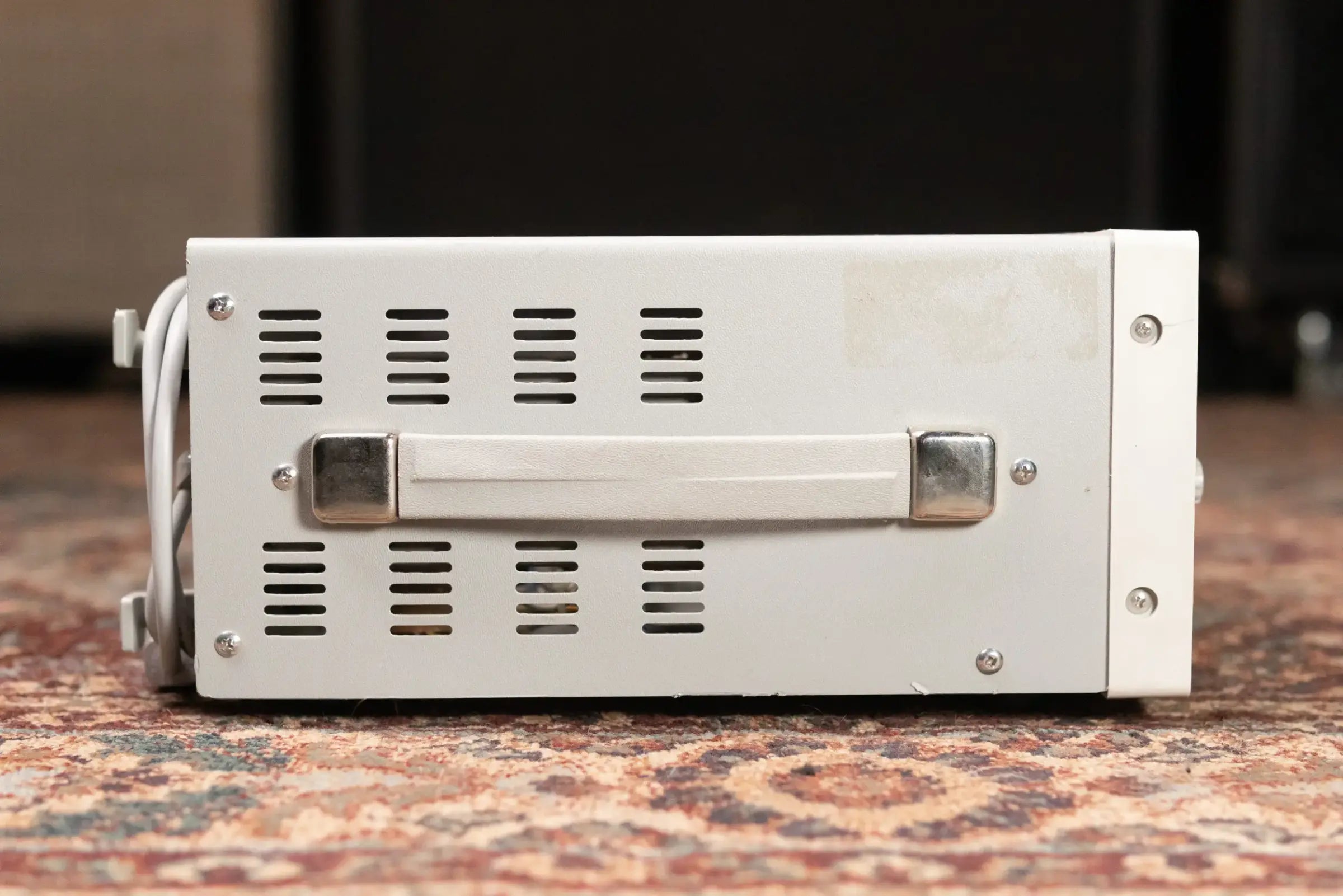

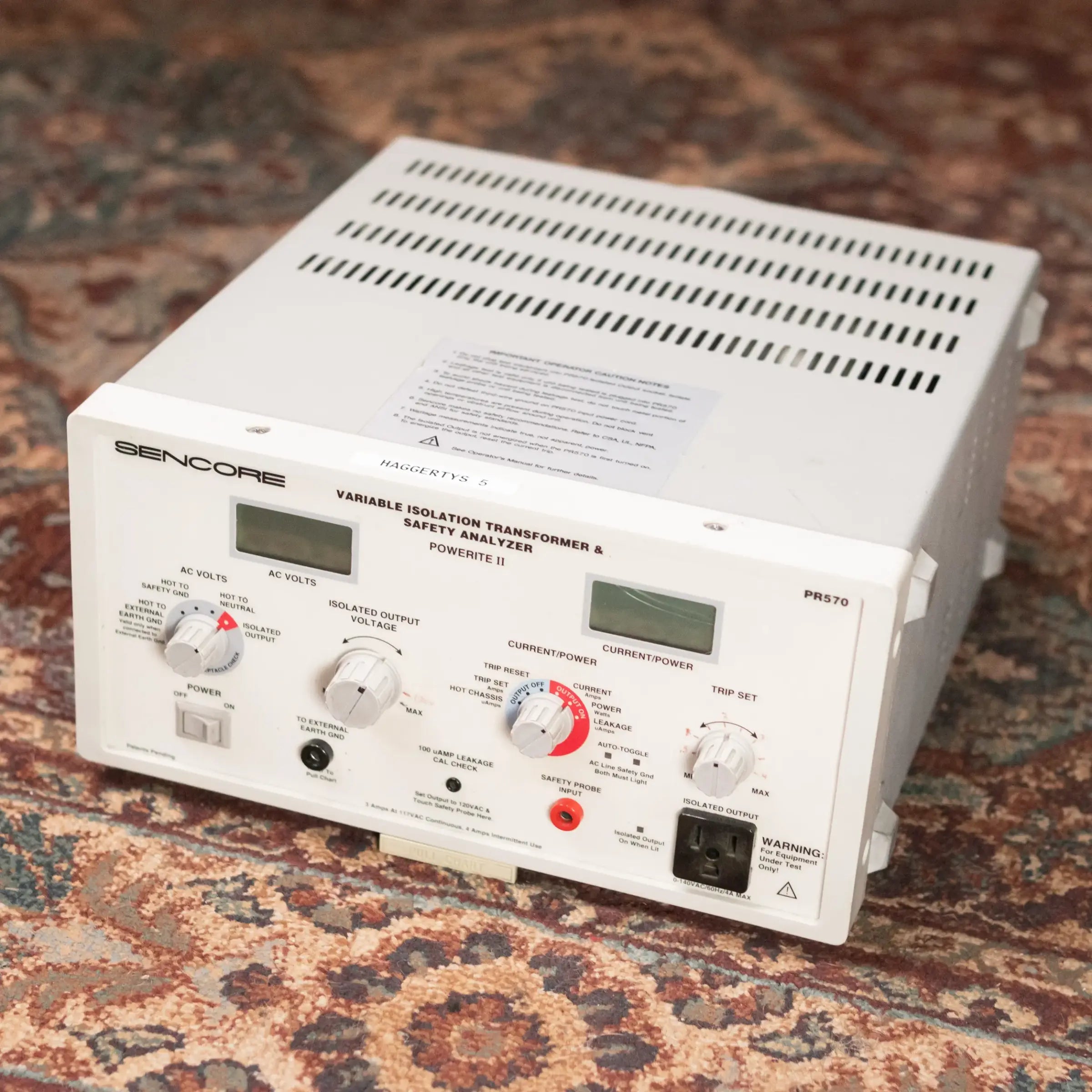

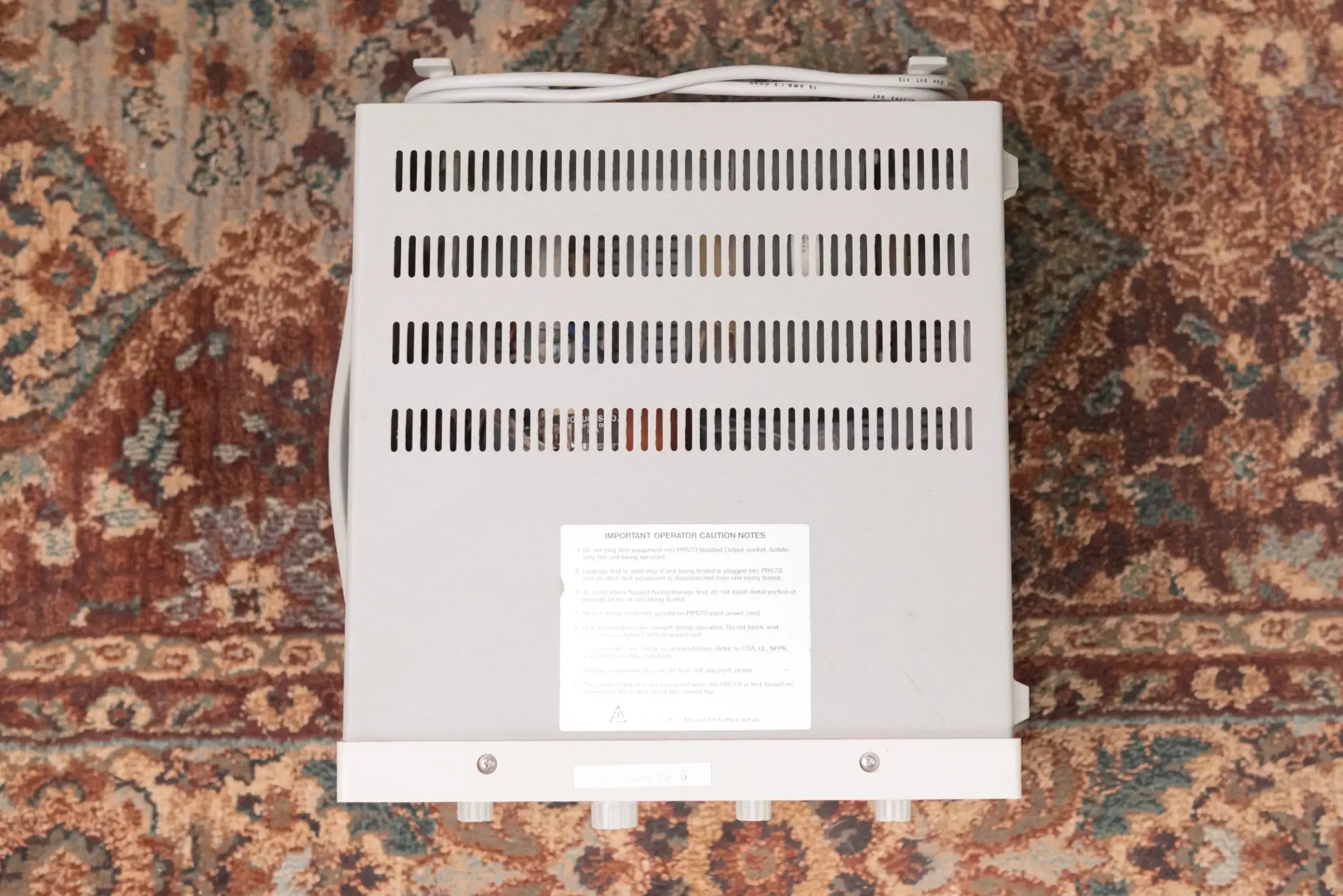

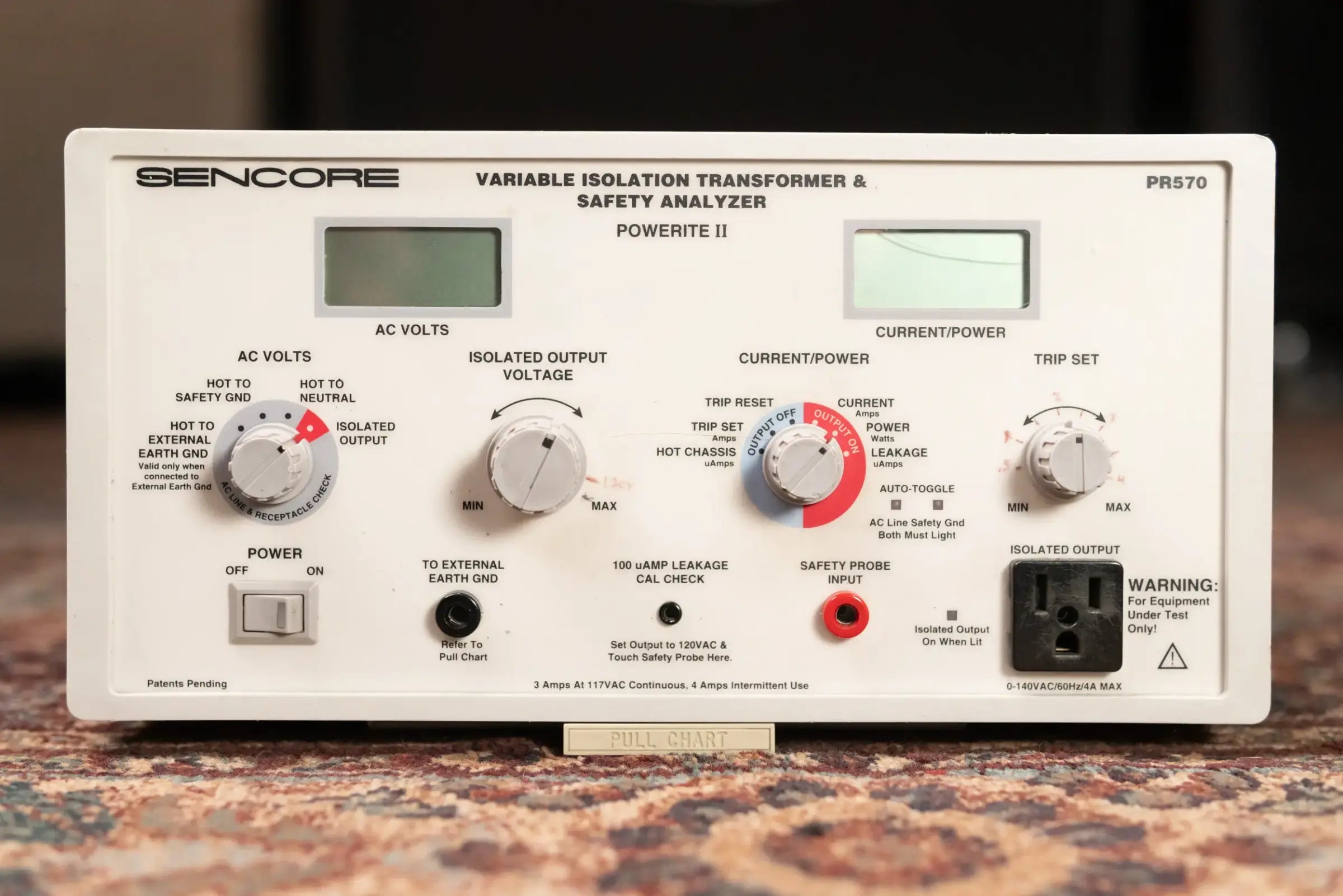

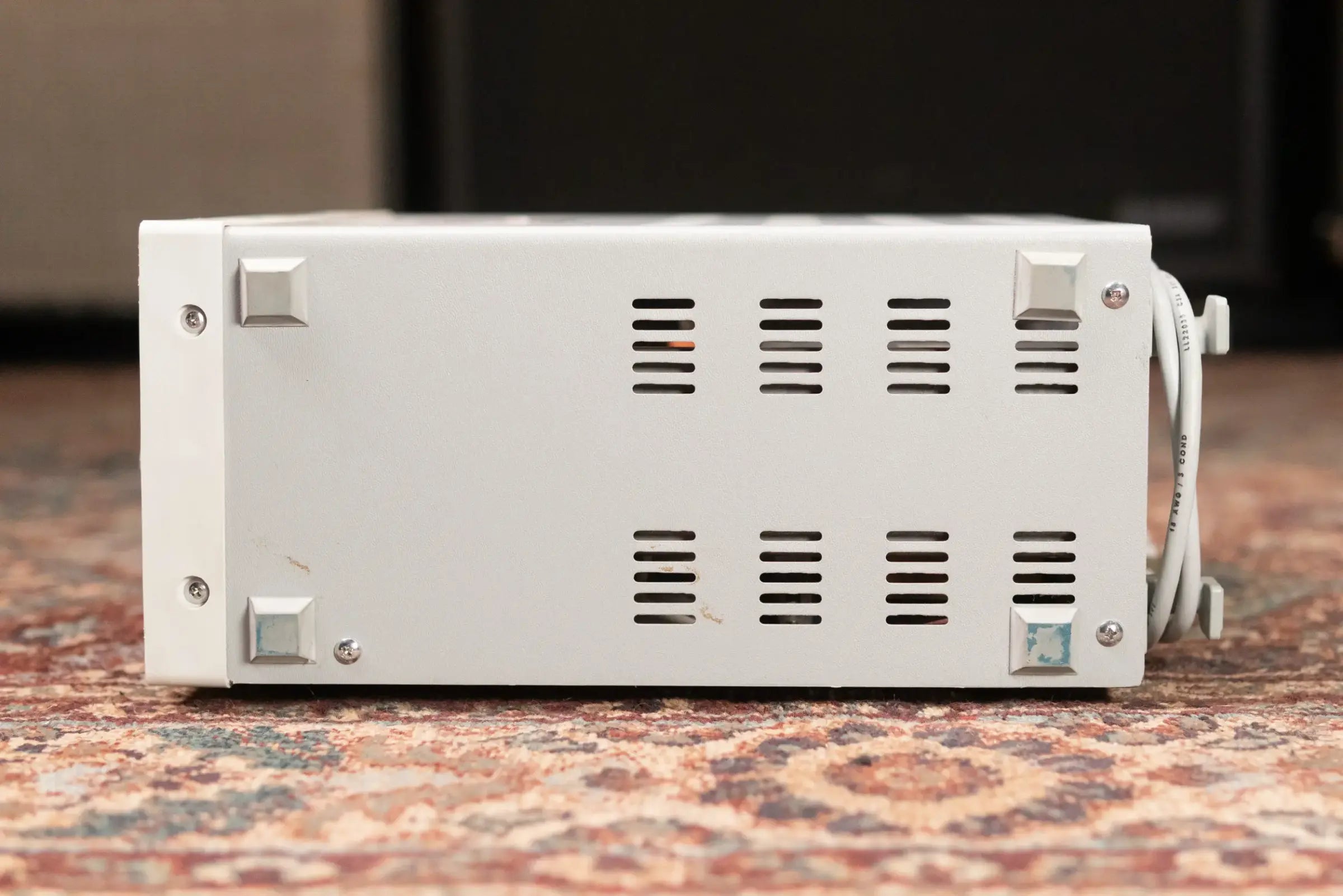

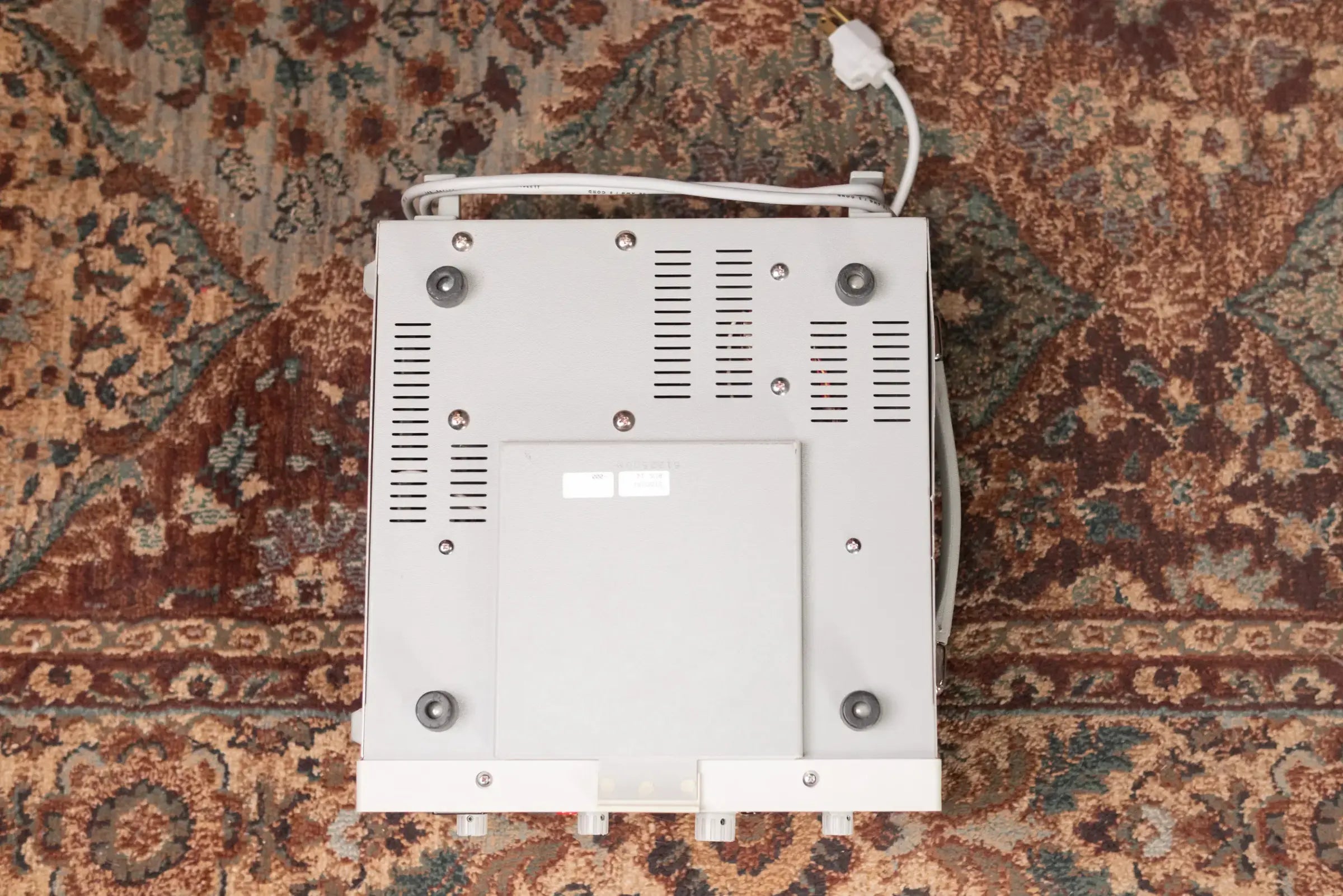

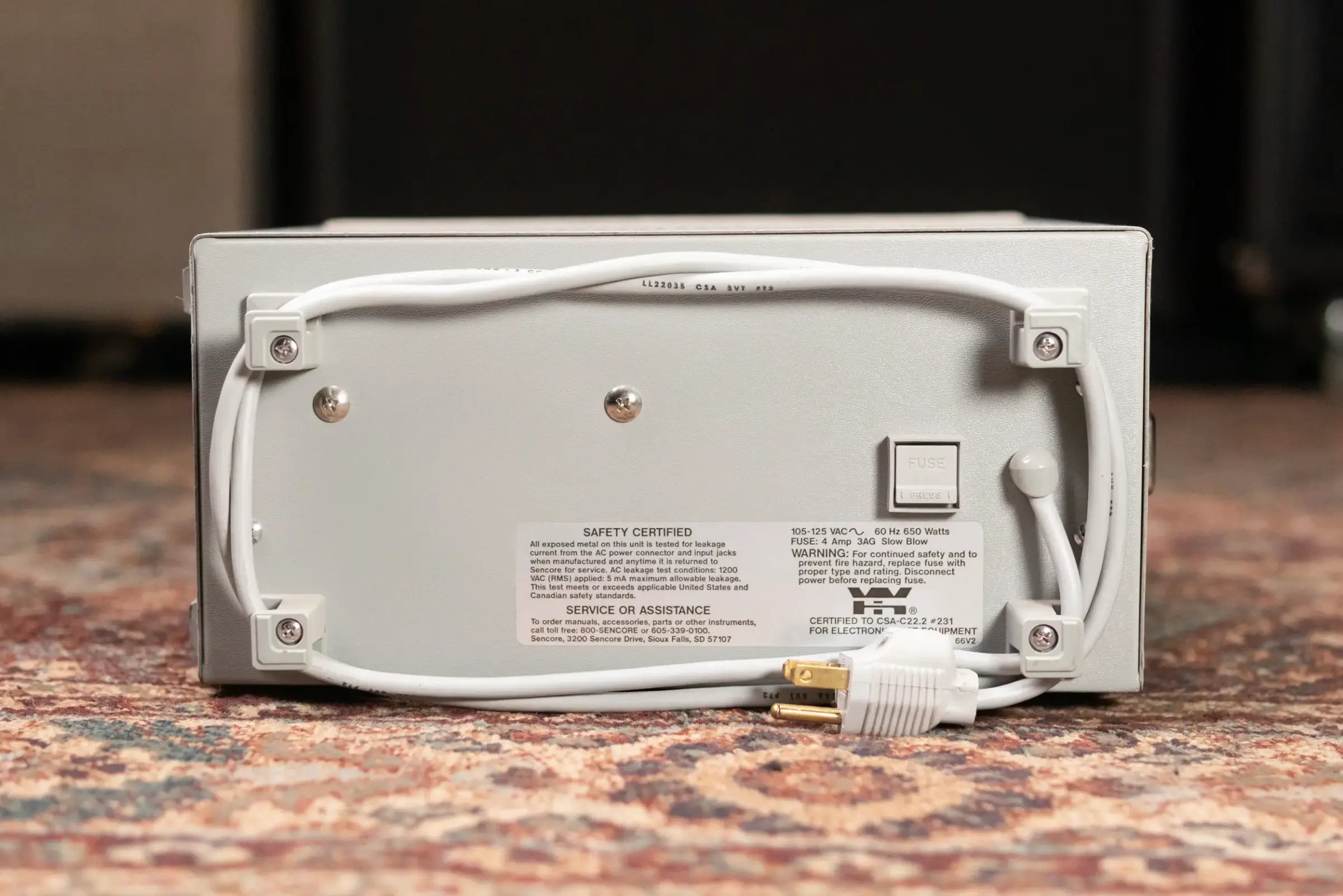

-YOU ARE VIEWING PHOTOS OF THE ACTUAL UNIT BEING SOLD!

This used analyzer will ship insured and inspected from Rapid City, SD. In very good condition, the unit has written numbers on the front panel and some scratches and residue on the sides.

Buy risk free with our 14 day - full refund, less shipping, return policy. Check out our shop policies for more details.

The Sencore PR570 Powerite II is a compact AC safety supply designed to simplify servicing electronic equipment while ensuring maximum safety. It combines six essential functions in one unit, starting with an isolation transformer that protects both technicians and devices by removing shock hazards from AC potential tied to earth ground. It also includes AC line and receptacle checks, ensuring that devices under test are powered by properly wired connections with the correct voltage, preventing hidden issues caused by faulty mains wiring or incorrect line voltage.

In addition, the PR570 features an adjustable AC transformer that allows isolated output voltage variation from 0 to 140 volts for regulator and shutdown circuit testing, as well as troubleshooting intermittent faults. Safety is further enhanced with hot chassis and leakage current tests, plus an adjustable output current trip that limits current available to connected devices. Finally, the PR570 makes it simple to monitor both current and power consumption of the connected equipment, providing an invaluable tool for identifying abnormal power usage and preventing long-term failures. This makes it an all-in-one, must-have instrument for technicians who demand reliable and safe power management in their workflow.

Features / Specs

• Voltage: 0-140 VAC typical at 117 VAC input
• Current: 3 amps continuous, 3-4 amps, 470 watts maximum intermittent use
• Output Loading: Less than 12 volt drop in output with 3 amp load at 120 VAC
• Range: 0-150 VAC
• Accuracy: 3% reading 2 counts, calibrated at 117 VAC
• Resolution: 1 volt
• Protection: 240 VAC
• Weight: 22.8 lbs
• Power Supply: Connected
• Manual included
