Allen and Heath QU-16 Chrome Edition 16-Channel Digital Mixer - Used

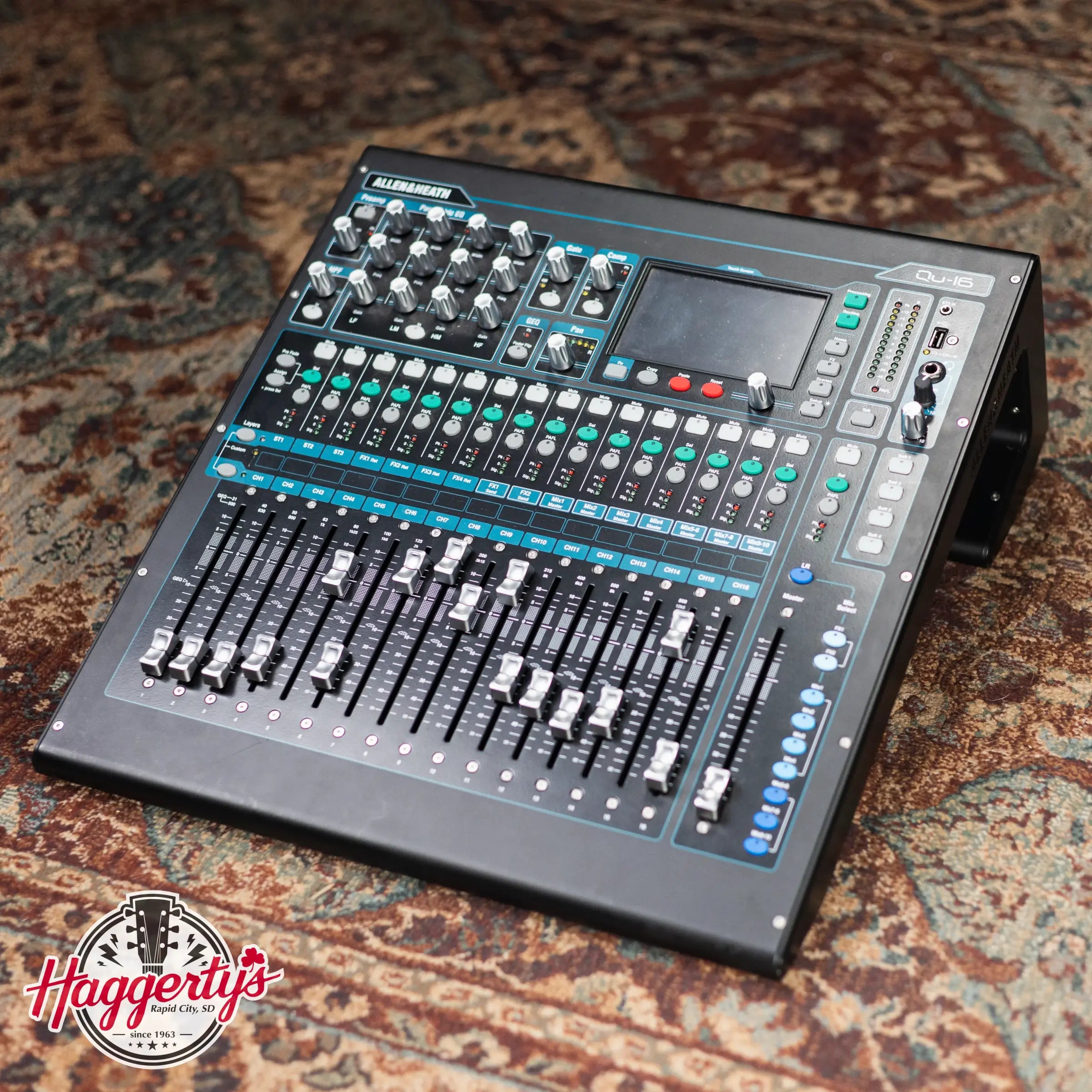

-YOU ARE VIEWING PHOTOS OF THE ACTUAL MIXER BEING SOLD!

This used Allen and Heath will ship insured and inspected from our Rapid City, SD location. This mixer is in excellent condition, with some light scratches and scuffing near the bottom and on the back of the unit; all knobs and sliders are in perfect working order.

Buy risk free with our 14 day - full refund, less shipping, return policy.  Check out our shop policies for more details.

Whether you're transitioning from analog or expanding your digital mixing workflow, the Allen & Heath QU-16 Chrome Edition offers intuitive control, powerful processing, and versatile connectivity — all in a road-ready rack-mountable frame. Designed with the performing musician, engineer, and studio professional in mind, the QU-16 boasts 16 AnalogiQ™ digitally controlled mic preamps and a 5" True Colour Touchscreen that anchors the mixer’s responsive, menu-driven interface. Physical control is enhanced by the SuperStrip, giving quick access to channel functions such as EQ, dynamics, and pan without navigating layers.

This mixer provides high-resolution 24×22 USB audio streaming for recording or integration with your DAW, plus 4 stereo RackFX engines with dedicated returns, so you're never short on effects. Built from robust 18-gauge Zintec steel and completely fanless for silent operation, this used unit has been tested and is fully functional — ready to elevate your live sound, studio sessions, or installed audio setup. This used unit is in excellent condition and available now at Haggerty’s Music.

Features/Specs

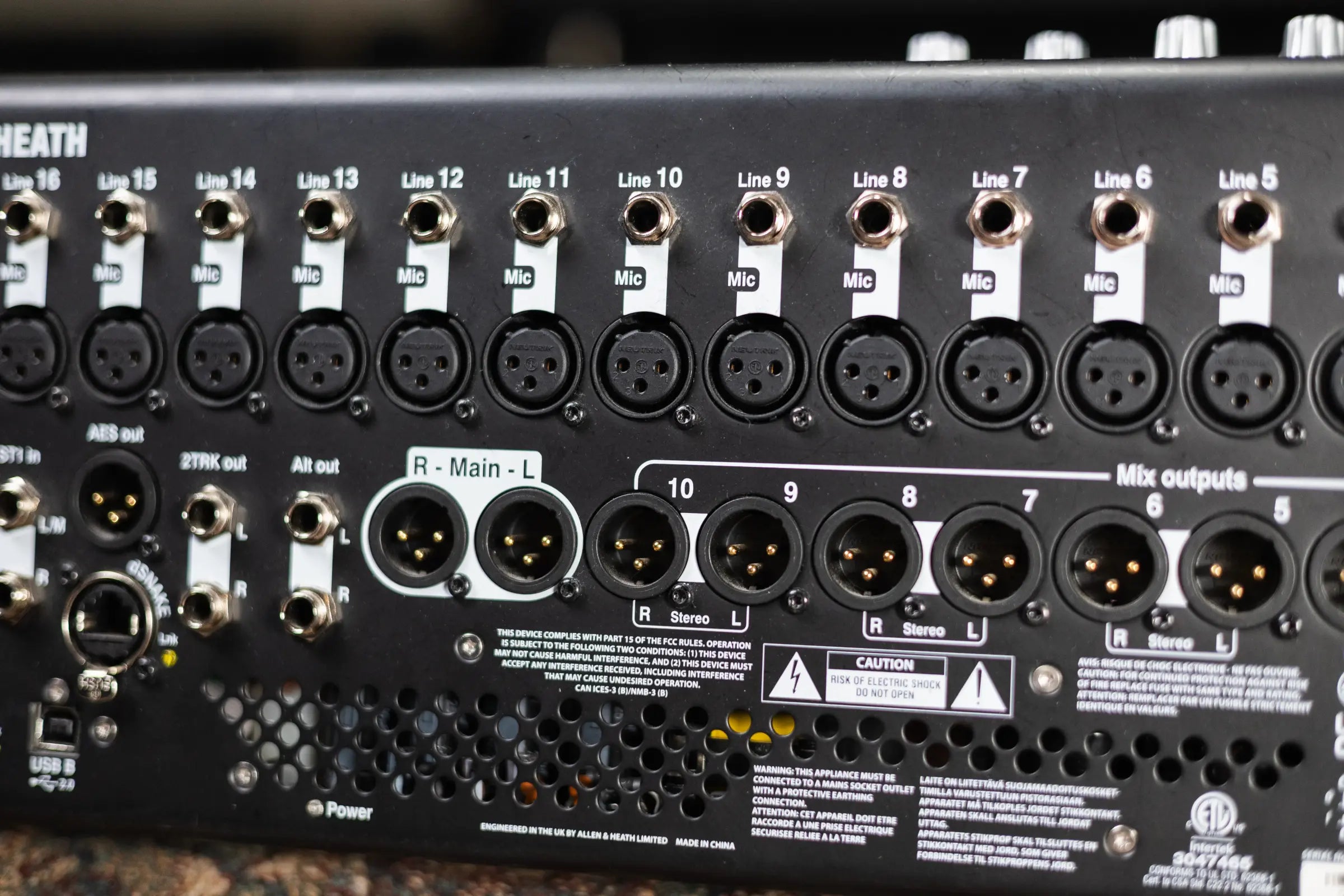

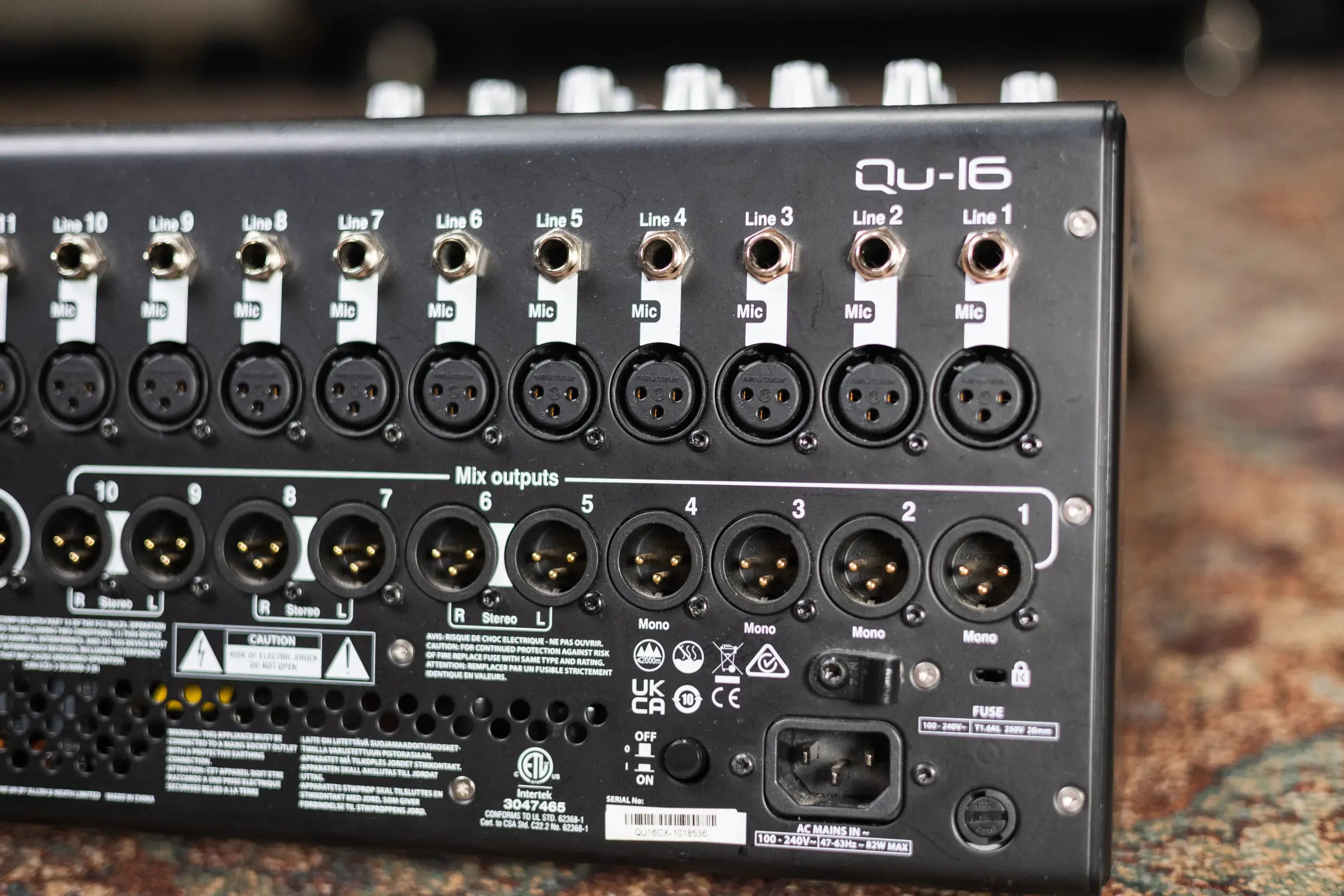

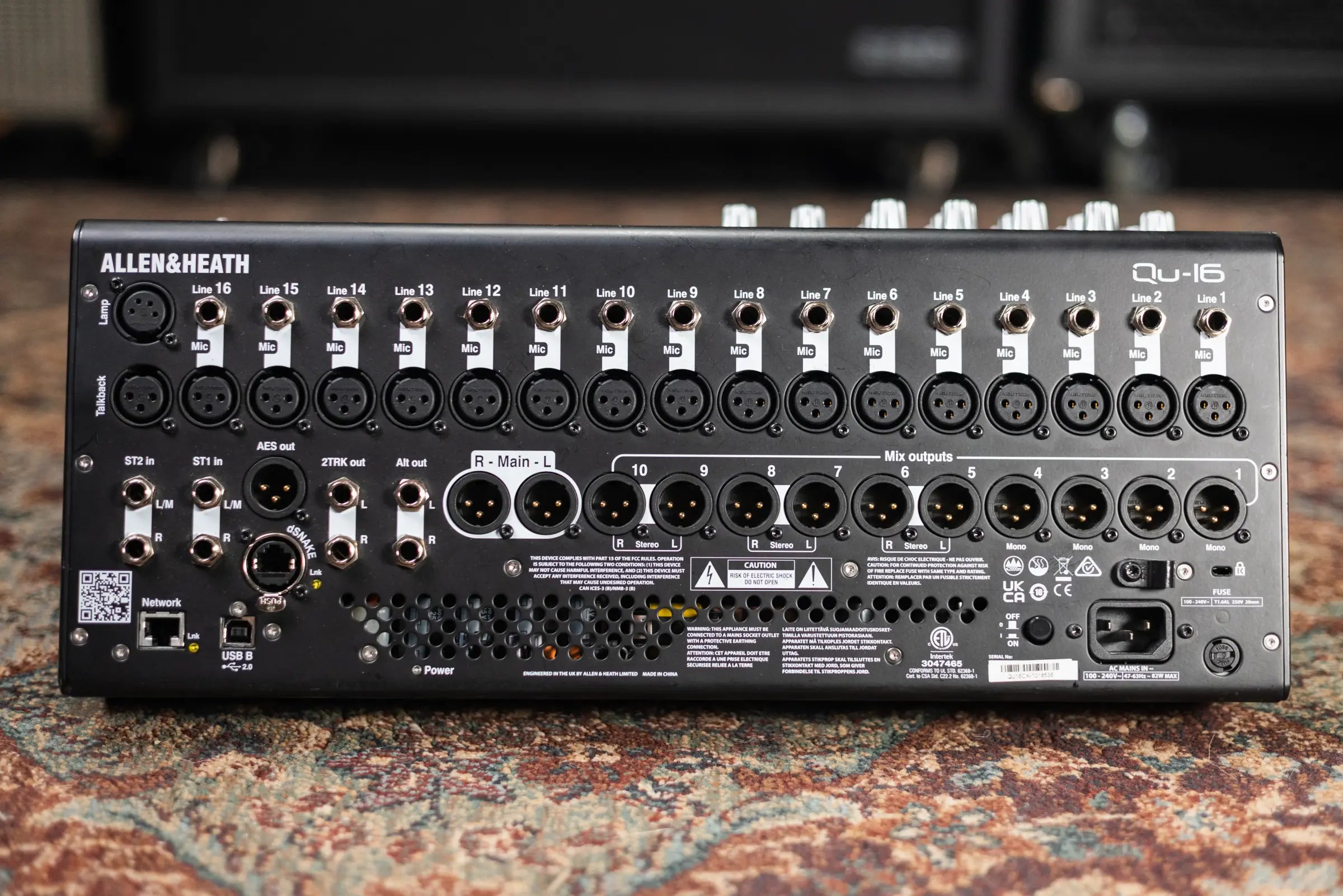

Inputs & Outputs

• Mono Inputs: 16 (TRS + XLR)
• Stereo Inputs: 3 (TRS)

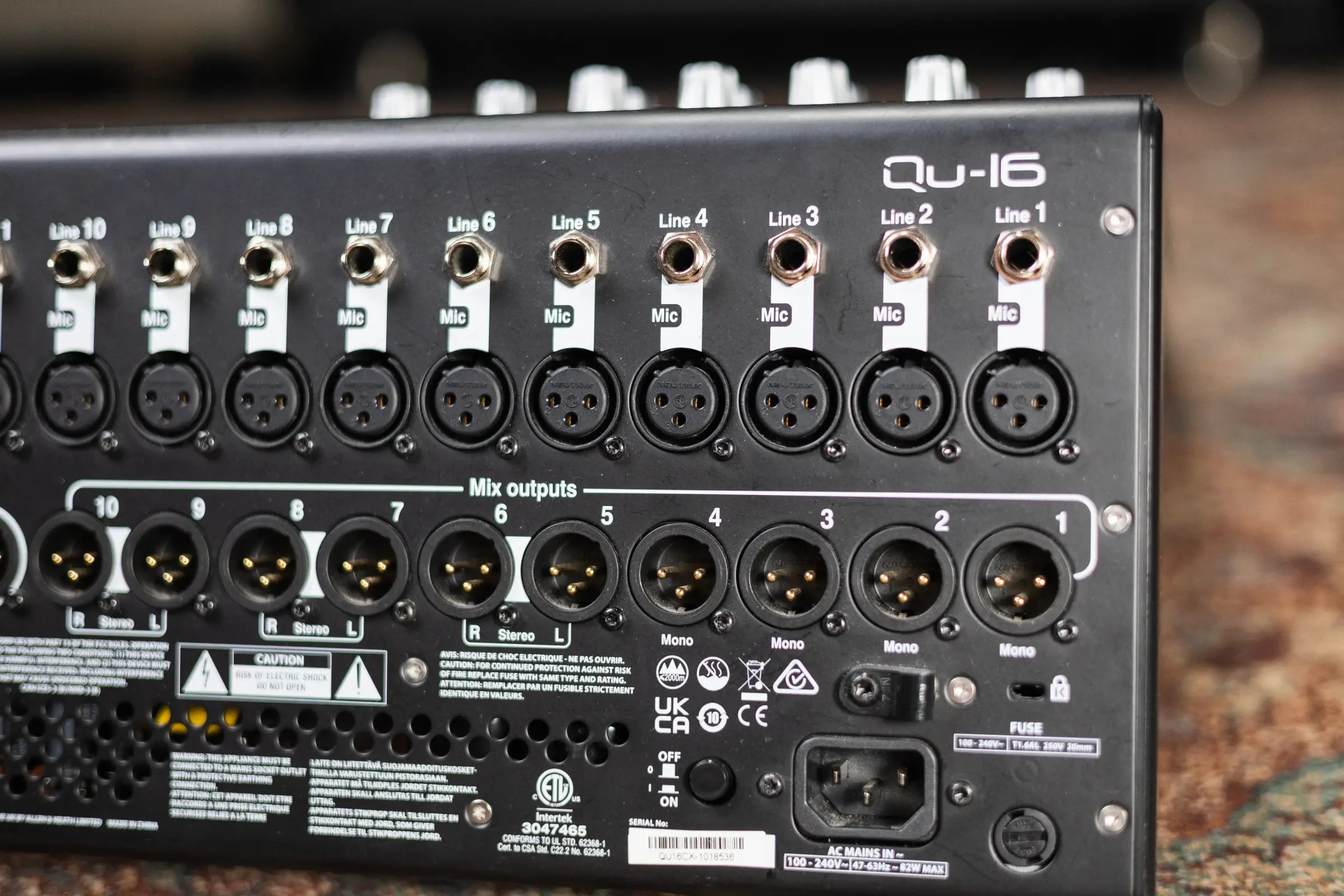

• Mix Outputs: 12 (XLR – LR, Mono Mix 1–4, Stereo Mix 1–3)
• FX Returns: 4 Stereo with 4-band PEQ

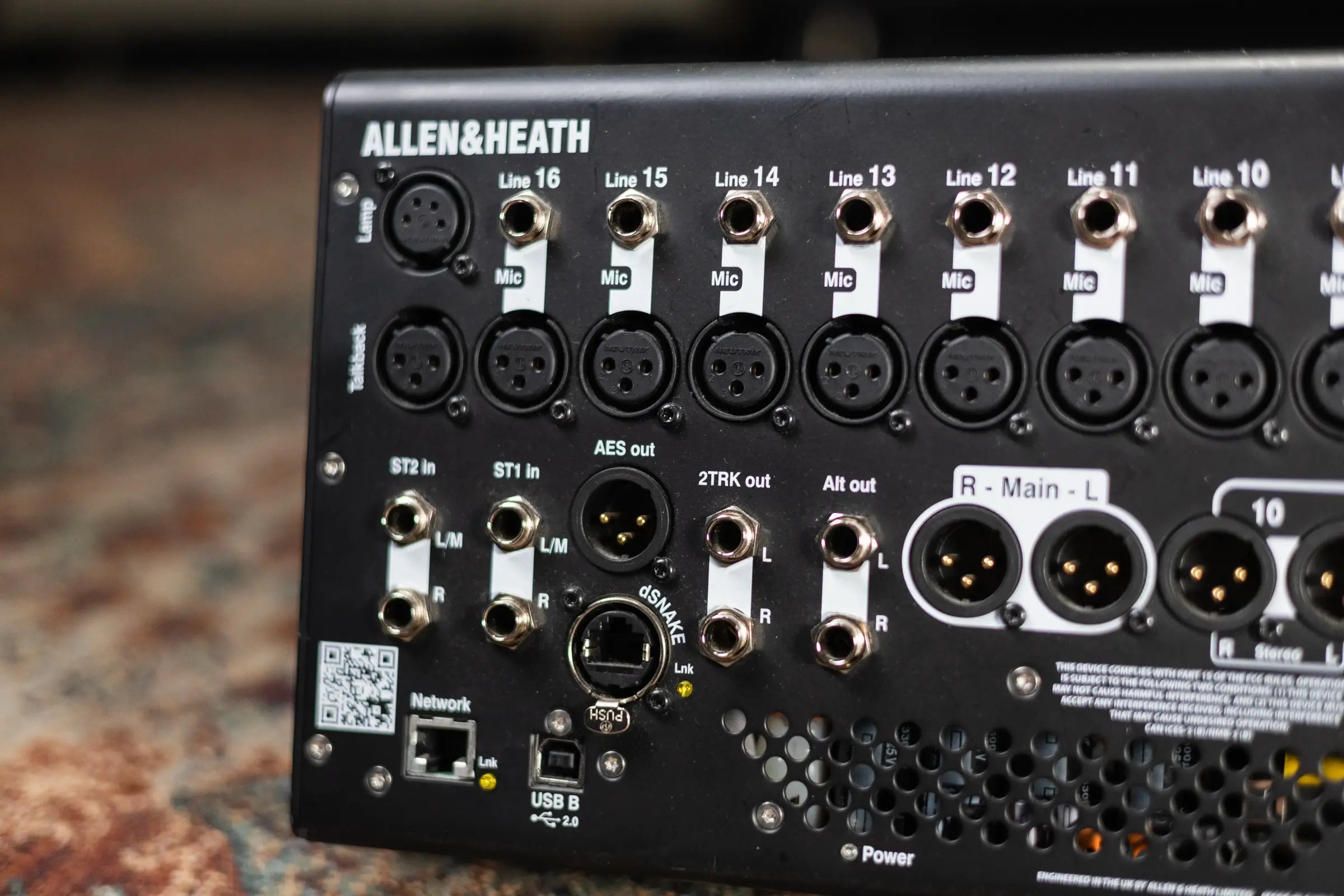

• Additional Outputs: AES Digital, Alt Out, 2TRK Out
• USB Interface: 24×22 for multitrack recording and playback
• Talkback Input: Dedicated Mic Input
• Remote Expansion: Compatible with AR2412, AR84, AB168 via dSNAKE Cat5

Mixing Features

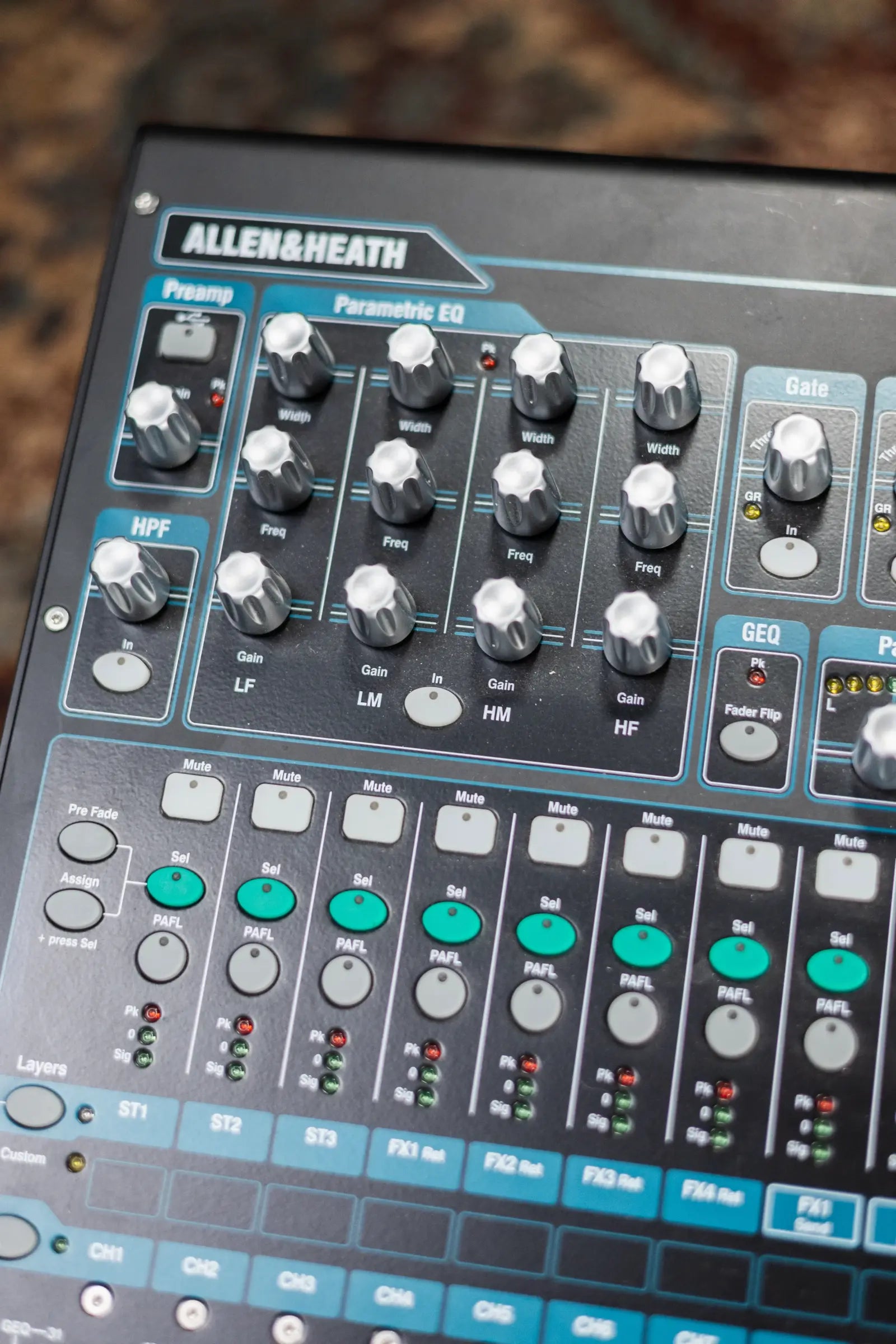

• Processing: Preamp, HPF, Gate, 4-band PEQ, Compressor, Delay (per channel)
• Output Processing: PEQ, Graphic EQ, Compressor, Delay
• Mute Groups: 4
• DCA Groups: 4
• Scene Memories: 100 with Global and Per-Scene Recall Filters
• Libraries: User FX, Channel, and Processing Presets

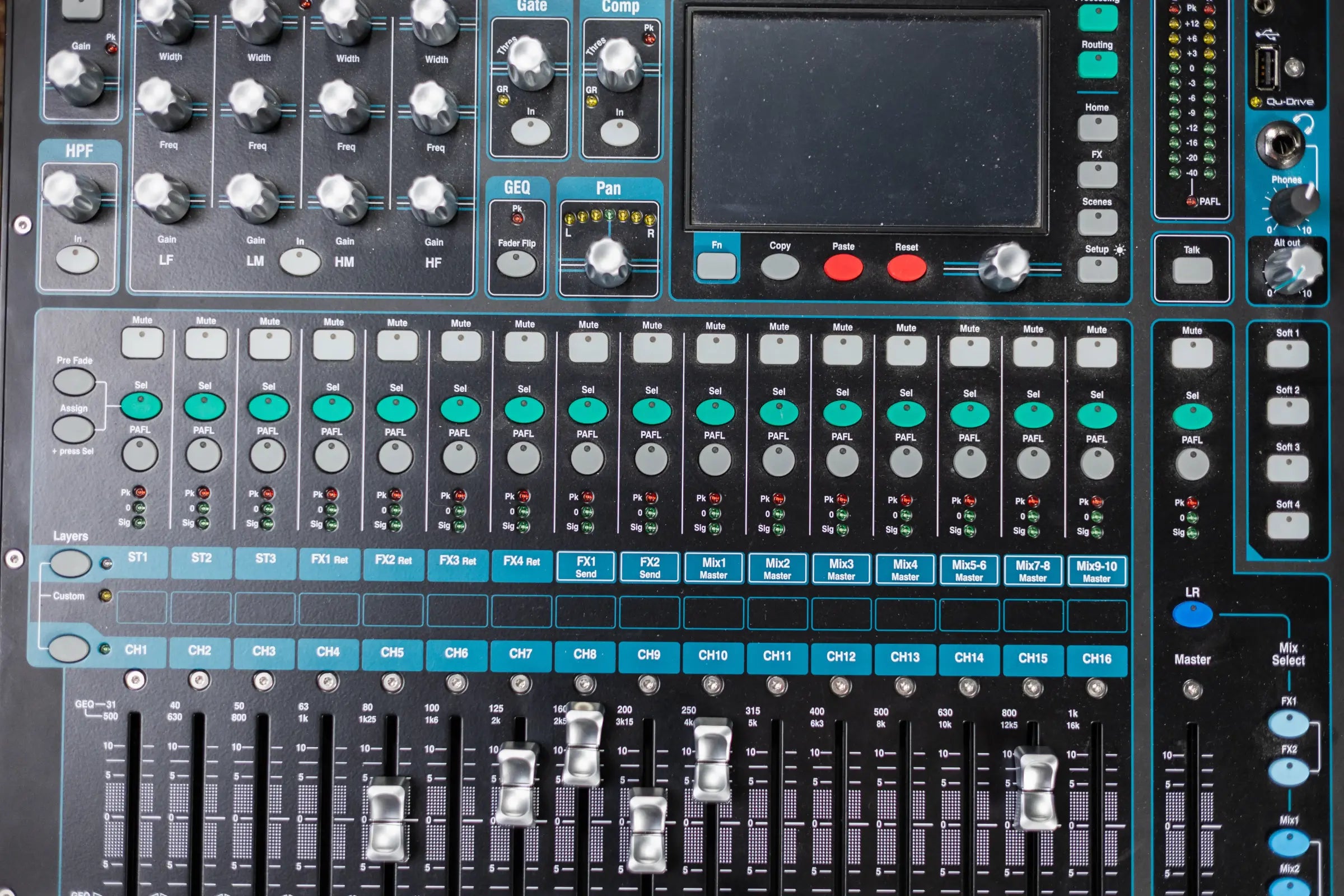

Control & Interface

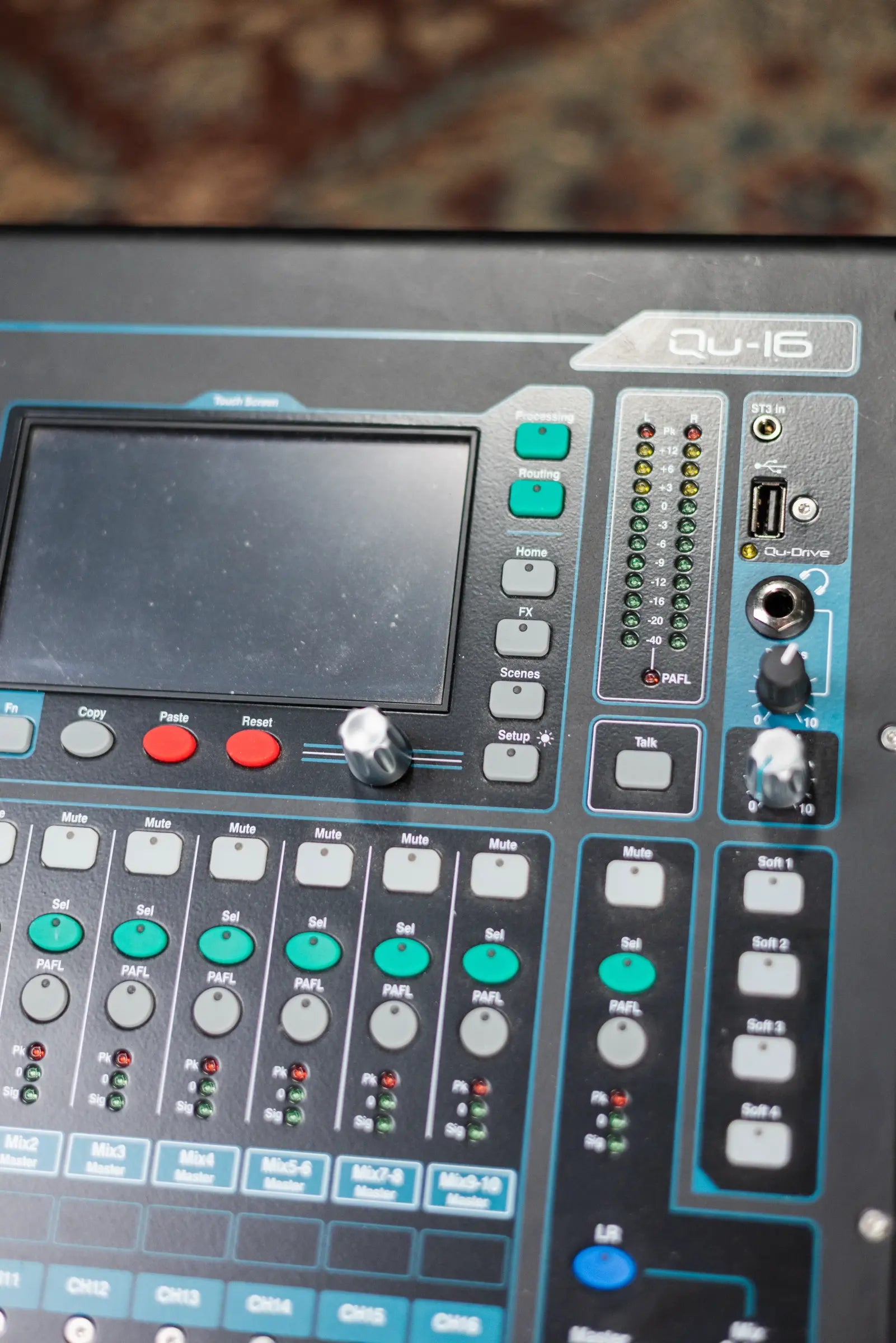

• Touchscreen: 5" (800x480) Color Display

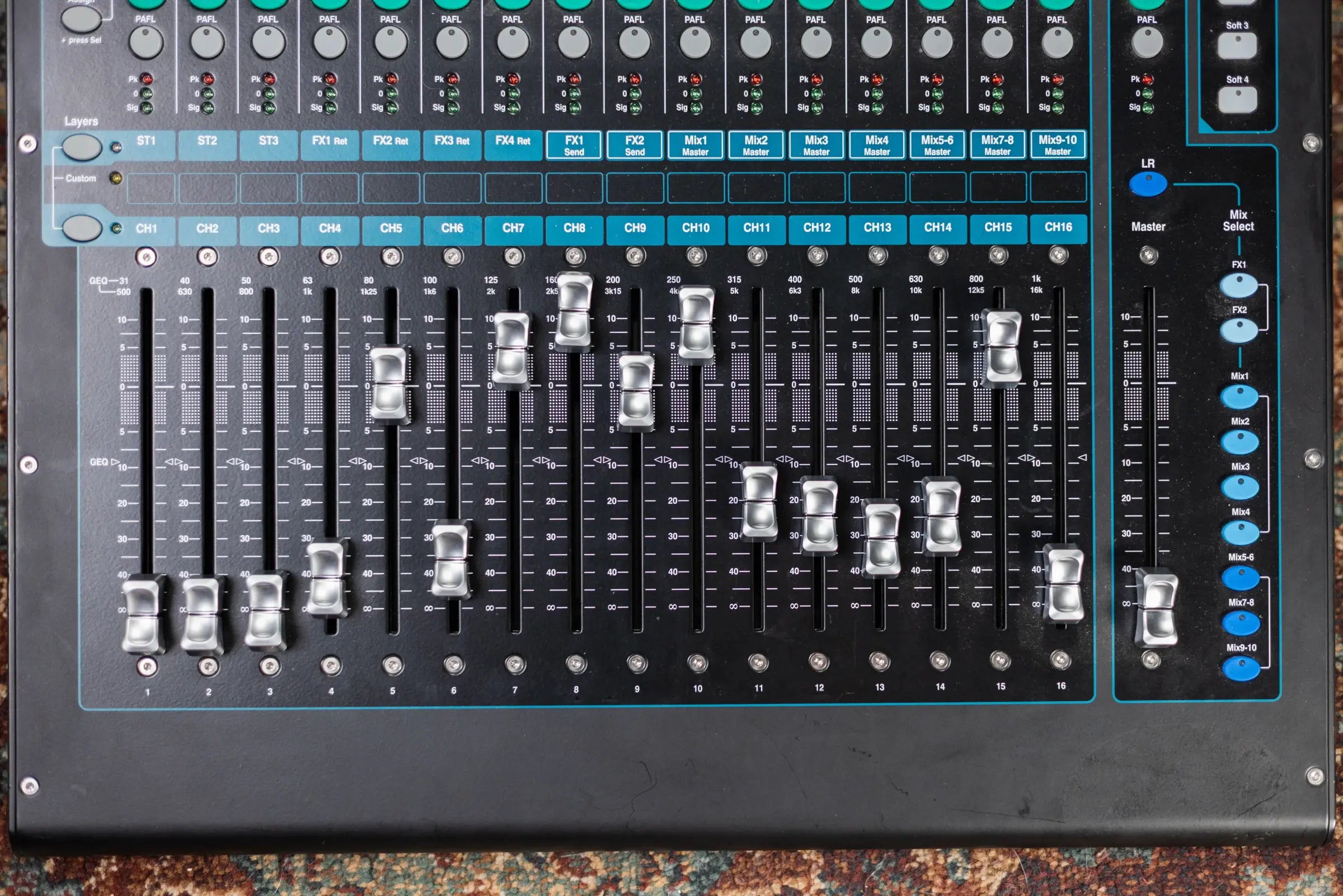

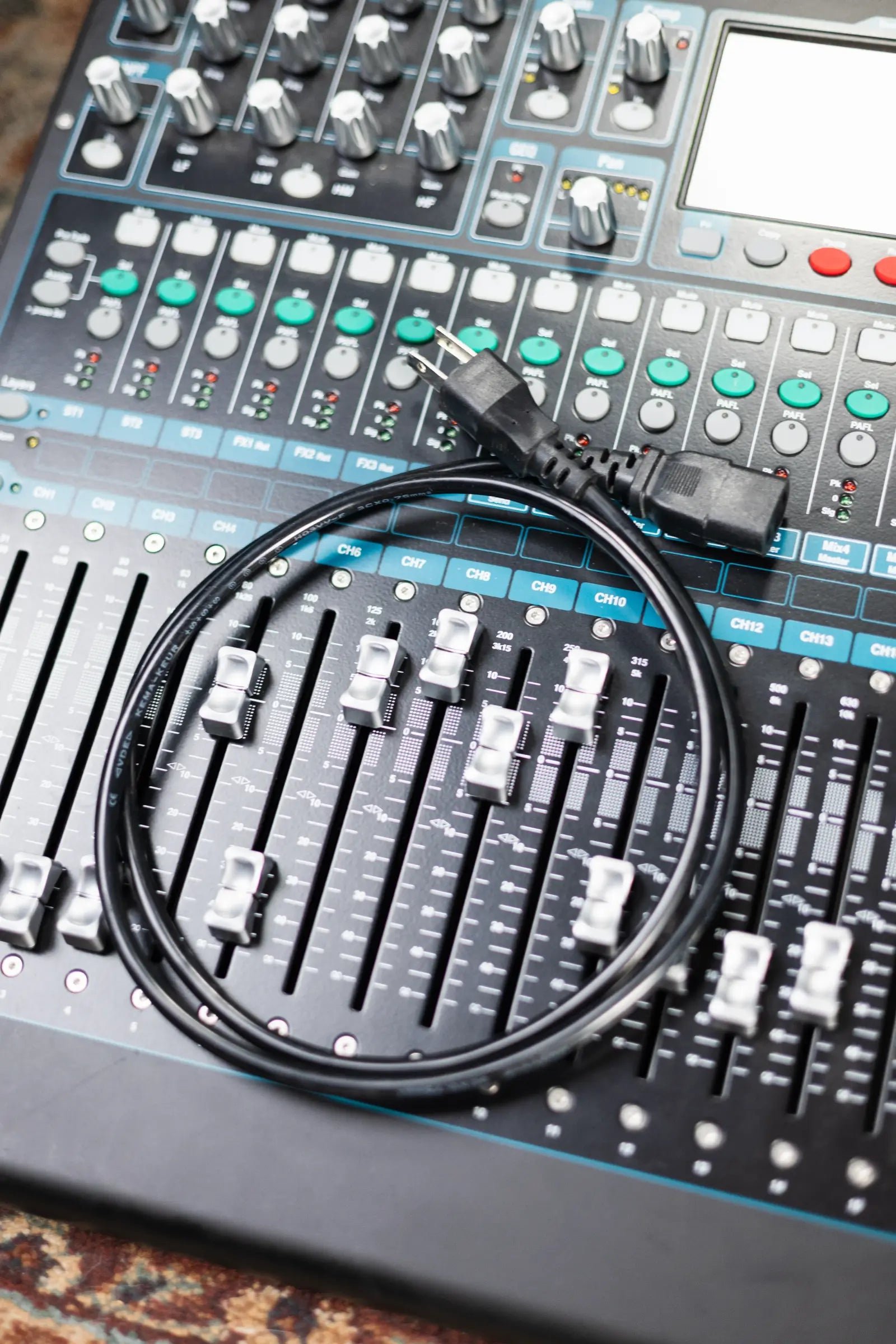

• Faders: Motorized for mix recall, sends-on-faders, and GEQ flip
• Custom Layer: User-Assignable
• SoftKeys: 4 Programmable
• Real-Time Analysis: 31-Band RTA with Spectrogram

Connectivity & Compatibility

• Recording: Qu-Drive Direct USB Recording (Stereo or 18-Track)
• DAW Integration: USB MIDI DAW Control (Mac/Windows)
• Apps: Qu-Pad (iPad), Qu-You (iOS Personal Monitor)
• System Integration: Compatible with ME Personal Mixing System

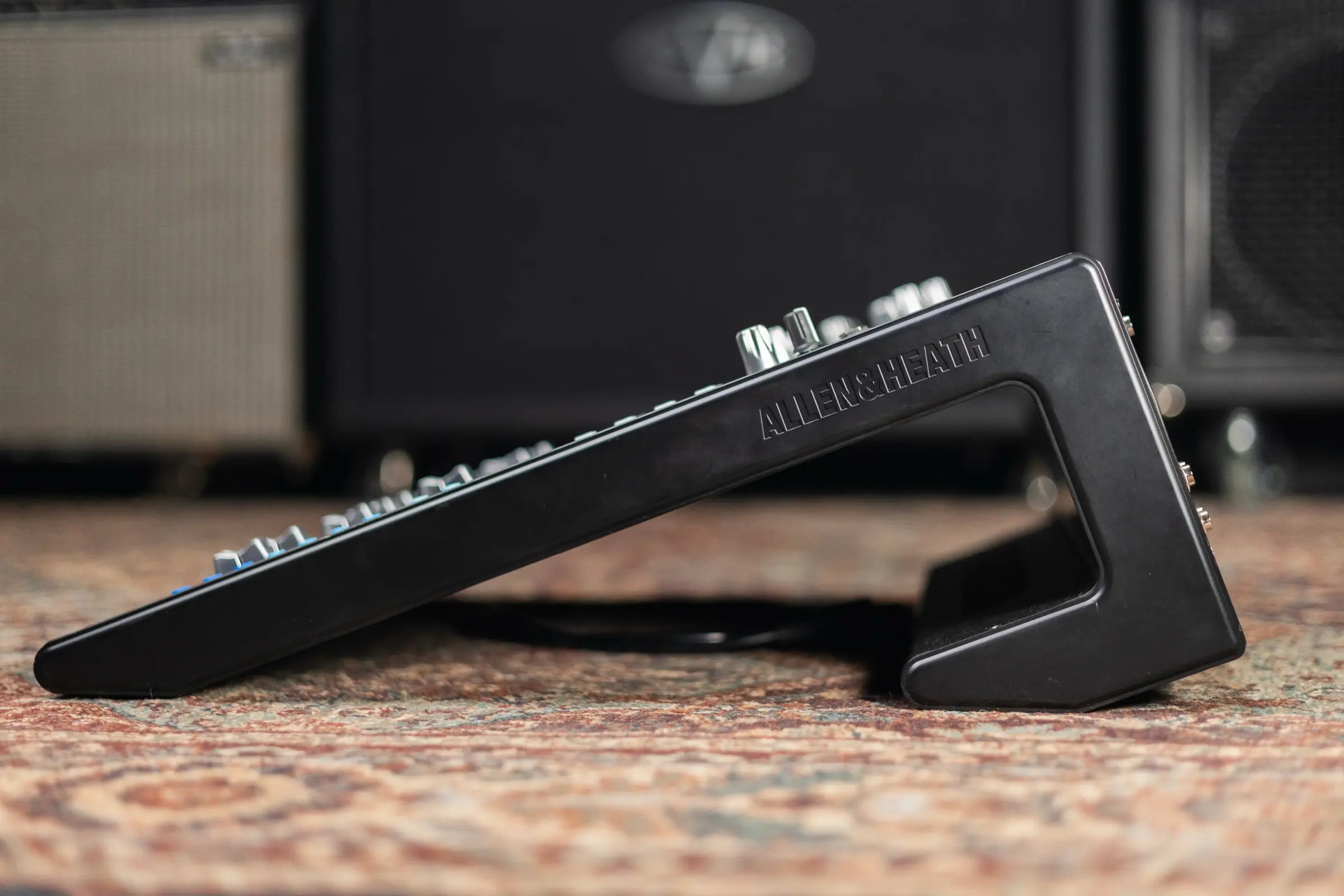

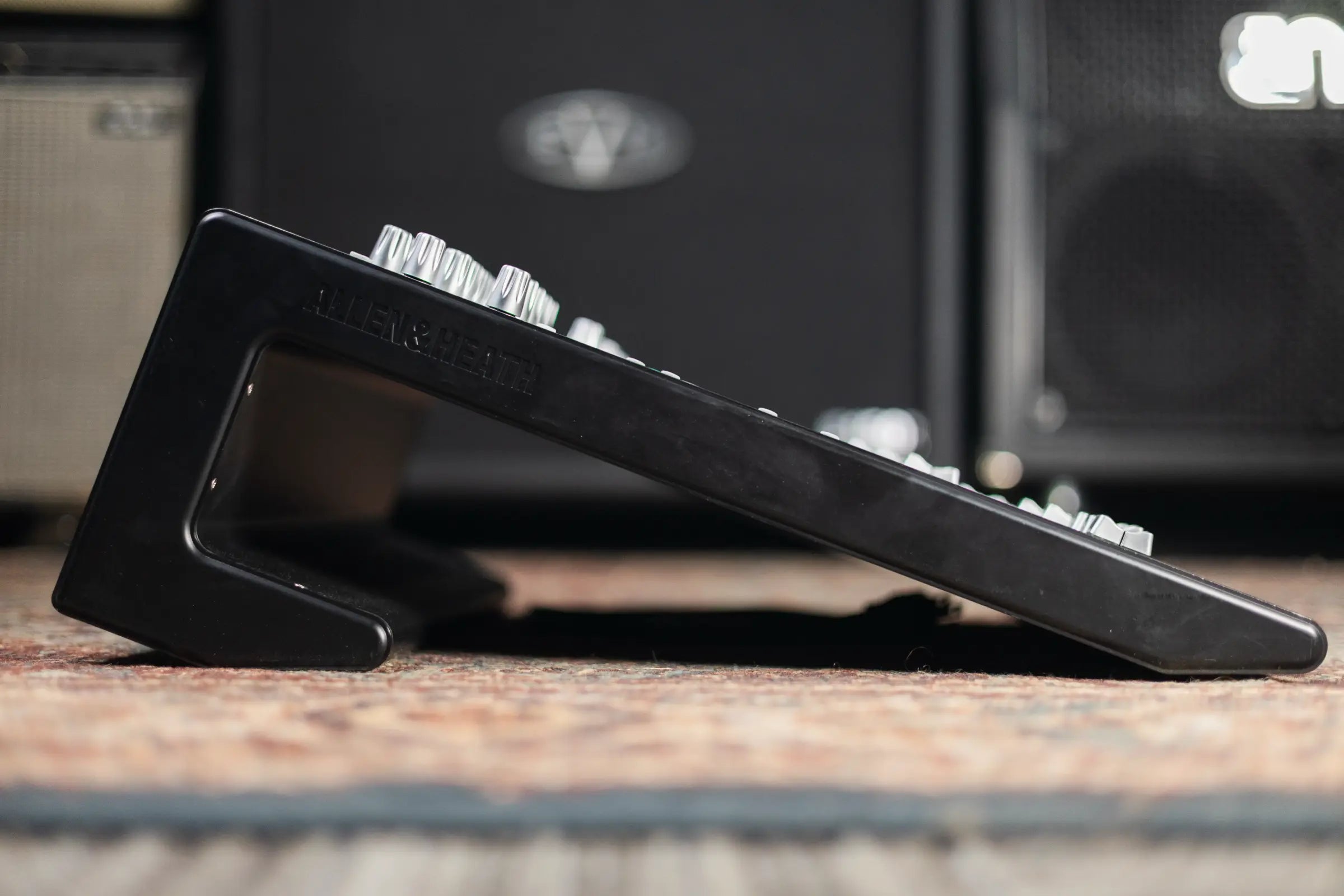

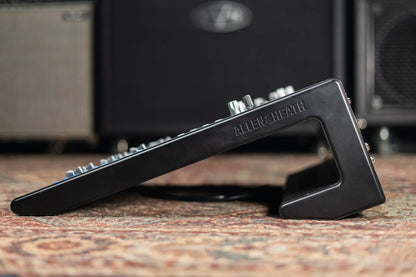

Build

• Chassis: 18-Gauge Zintec Steel
• Cooling: Fanless Design for Silent Operation
• Mounting: Rack-Mountable

Condition

• Used: Excellent, Fully Tested and Functioning
