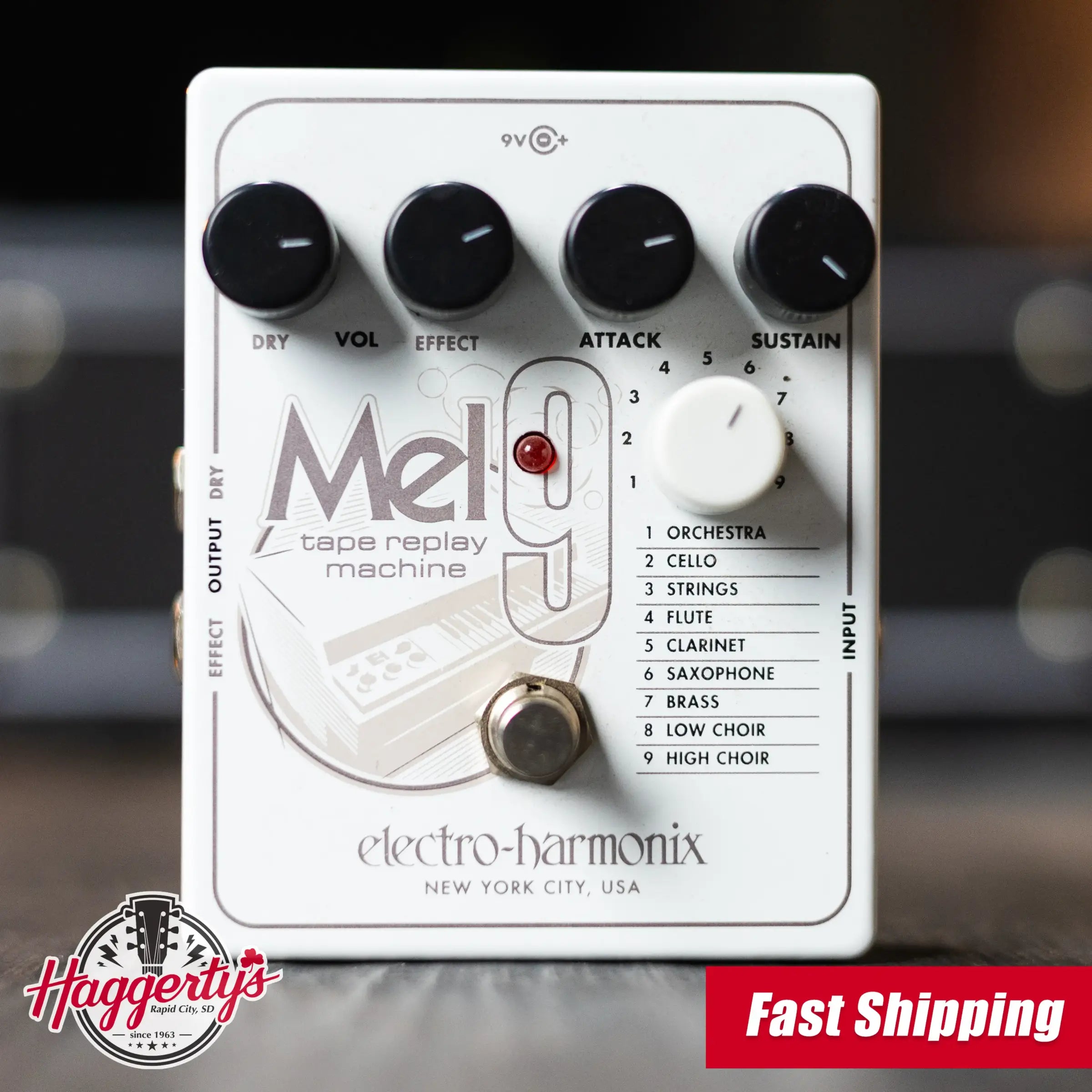

EHX Mel9 Tape Replay Effects Pedal - Used

-YOU ARE VIEWING PHOTOS OF THE ACTUAL PEDAL BEING SOLD!

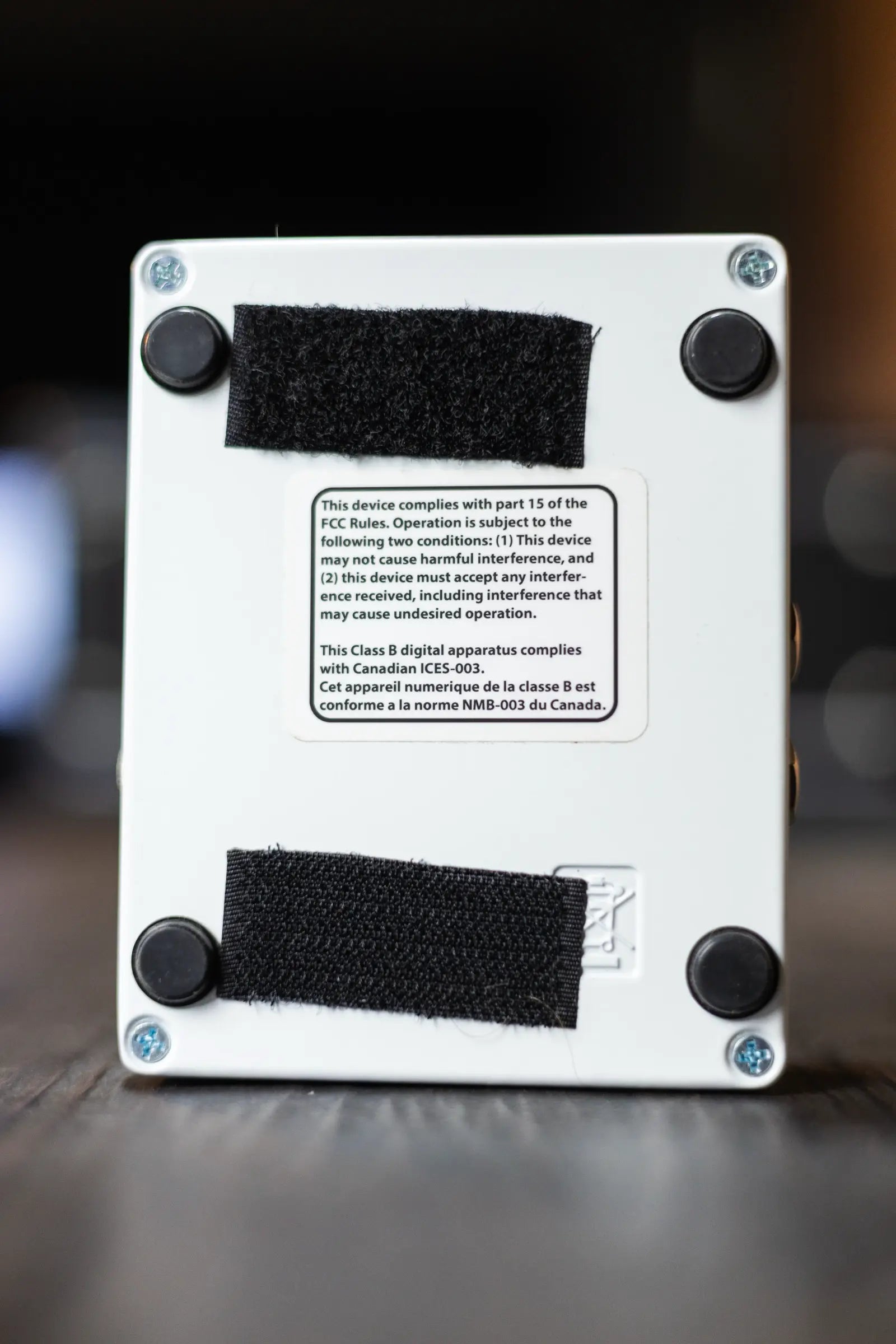

This used Electro-Harmonix will ship insured and inspected from our Rapid City, SD location. This pedal is in excellent condition with some light wear on the top graphic and velcro pre-attached to the bottom of the unit.

Buy risk free with our 14 day - full refund, less shipping, return policy.  Check out our shop policies for more details.

Bring the lush, haunting character of vintage tape-based keyboards to your rig with the EHX Mel9 Tape Replay Machine — available now at Haggerty’s Music. Designed to emulate nine of the most iconic Mellotron sounds, this polyphonic pedal lets guitarists, bassists, and keyboard players access classic orchestral textures without the need for special pickups or MIDI systems.

The Mel9 delivers faithful reproductions of Orchestra, Cello, Strings, Flute, Clarinet, Saxophone, Brass, Low Choir, and High Choir tones, tracking single notes and chords with remarkable accuracy — even handling bends, slides, and dive bombs. Independent Effect and Dry volume controls allow you to blend your instrument’s natural tone with the lush Mellotron voices, while the Attack and Sustain knobs give you precise control over how notes fade in and out. The dedicated Dry Output lets you route your unaffected signal separately, expanding creative possibilities.

With its wide tracking range (down to A1 on bass), easy integration, and expressive response, the Mel9 is a powerful tool for adding rich, cinematic layers to your sound.

Features / Specs

General

• Effect Type: Tape Replay / Mellotron Emulator
• Voices: Orchestra, Cello, Strings, Flute, Clarinet, Saxophone, Brass, Low Choir, High Choir
• Bypass: Buffered

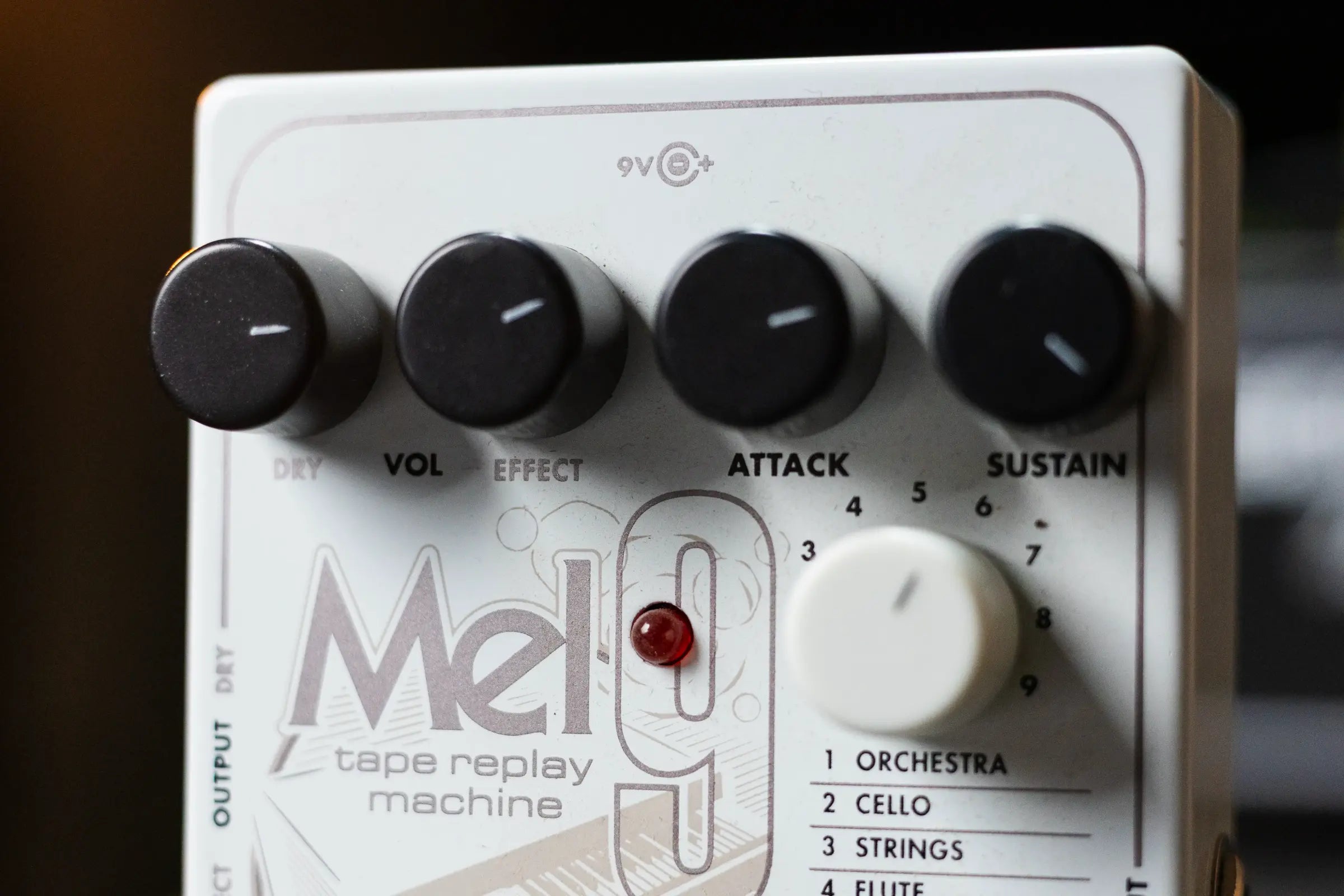

Controls

• Effect Volume: Sets level of the selected Mellotron voice
• Dry Volume: Sets level of your clean signal at the Effects output
• Attack: Adjusts note fade-in time
• Sustain: Adjusts note fade-out time

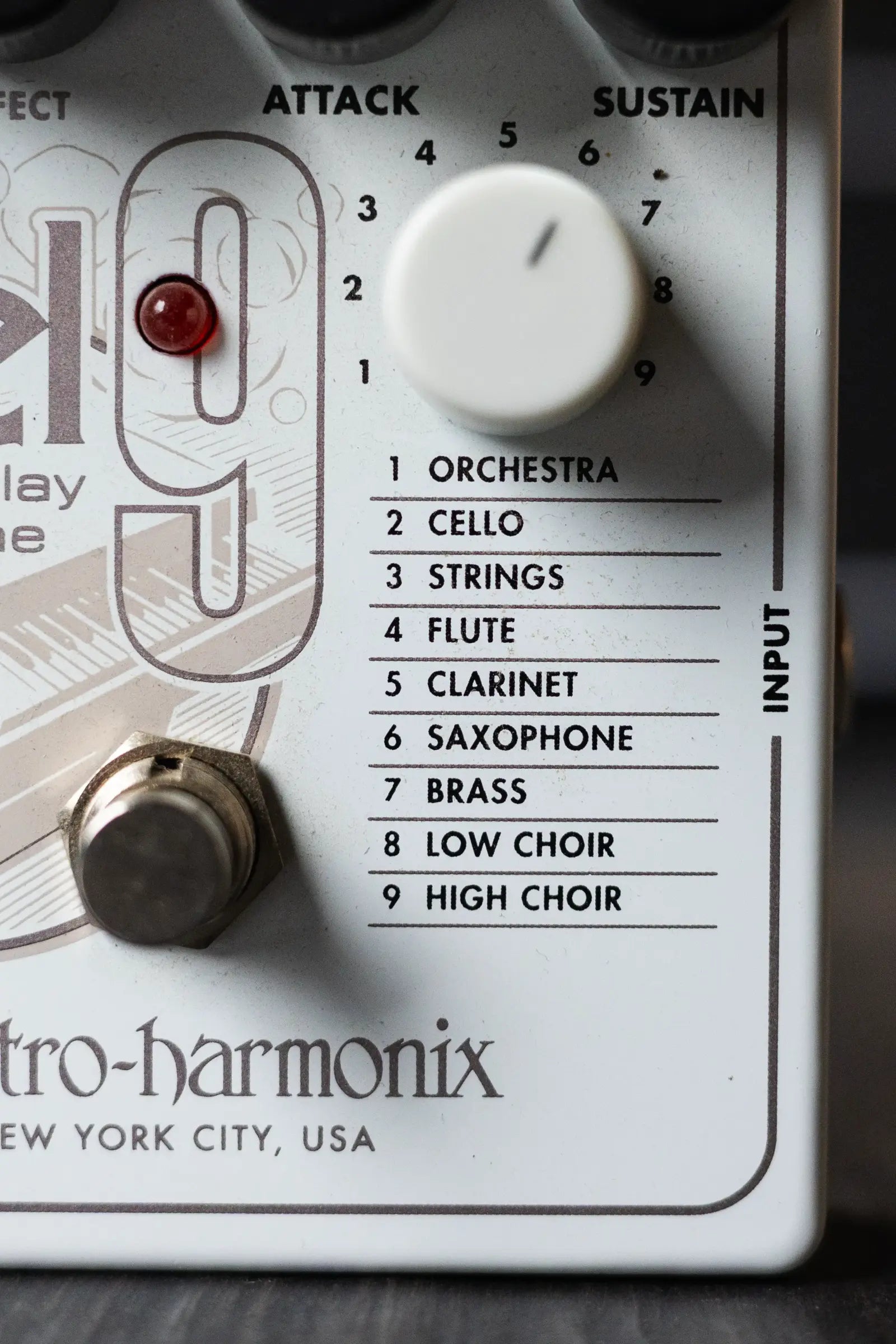

• Voice Selector: Chooses one of nine Mellotron sounds

Connectivity

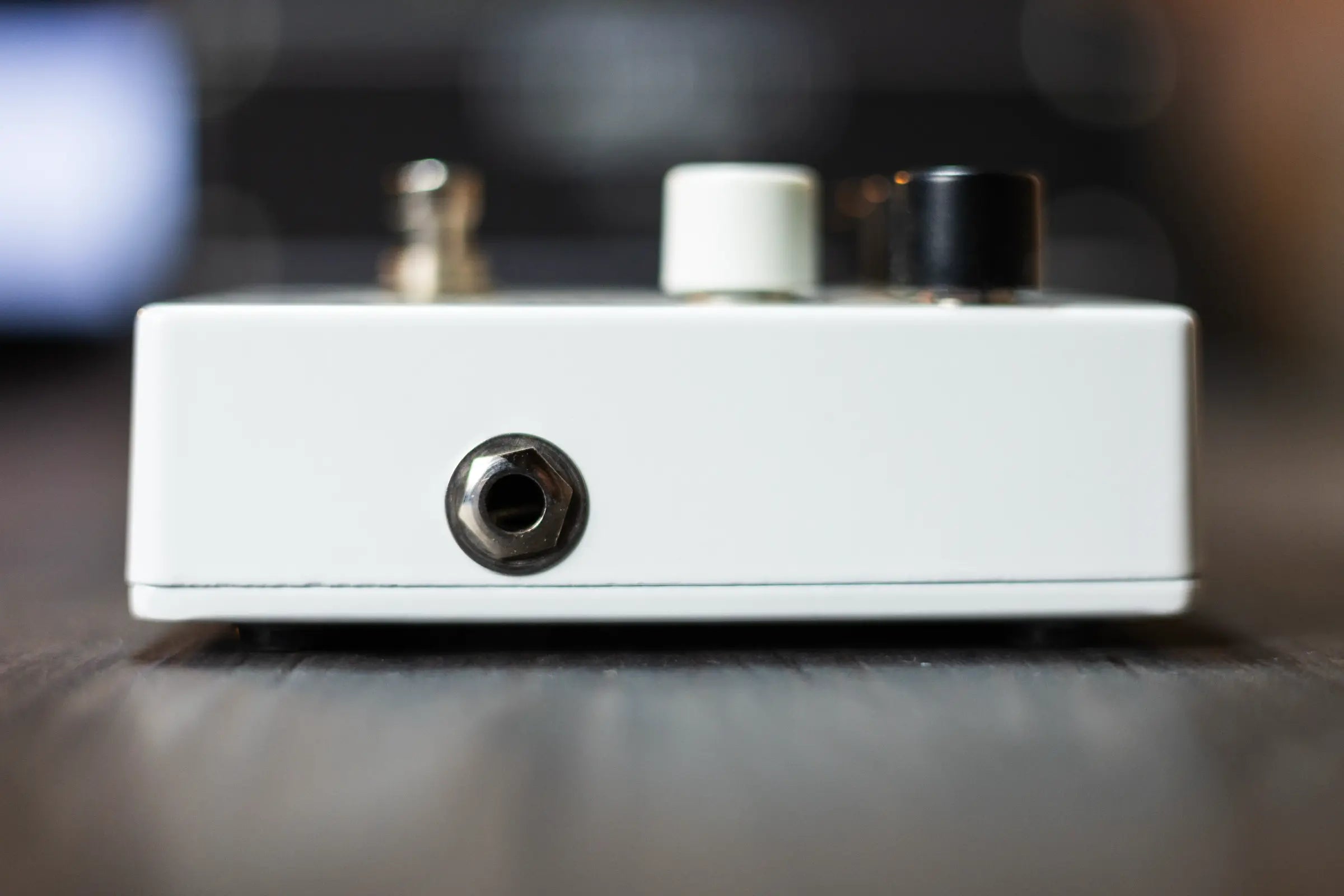

• Inputs: 1/4" Mono Instrument In

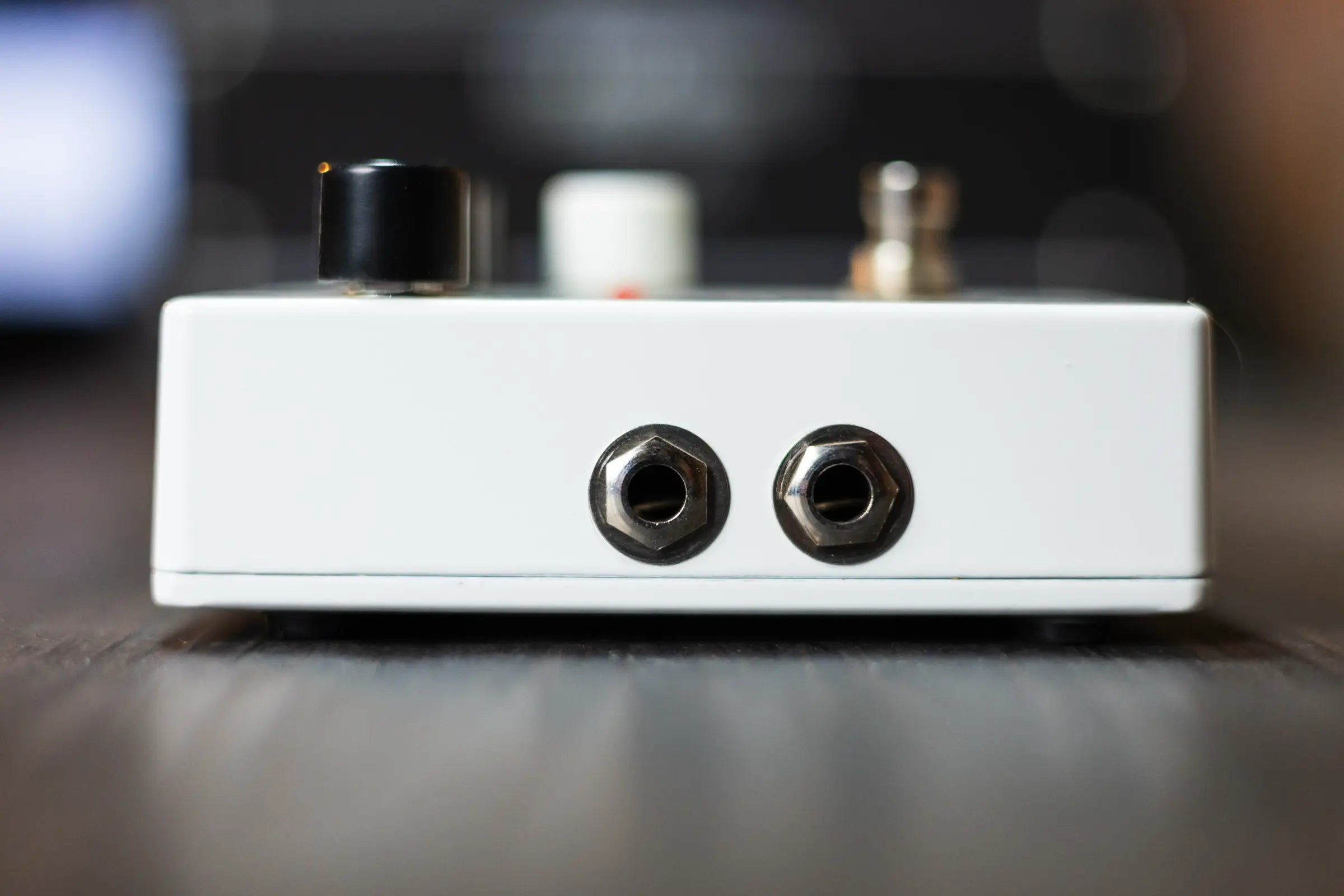

• Outputs: Effects Out, Dry Out (Unity Gain)

Performance

• Tracks single notes and chords with high accuracy
• Responds to bends, slides, and tremolo use
• Works with guitar, bass (down to A1), and keyboards (within A1–A5 range, 5-note polyphony)

Power

• Circuit: Digital

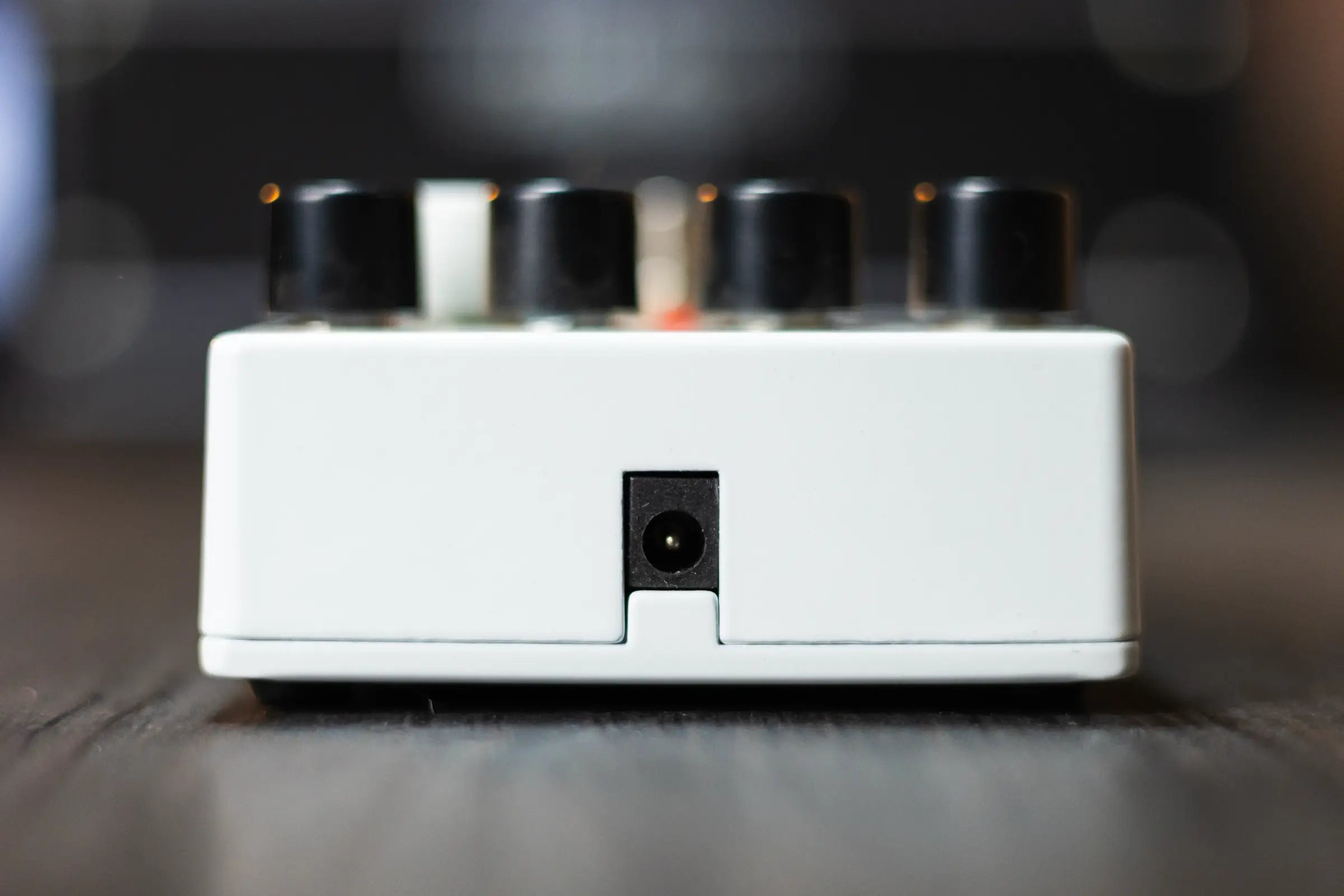

• Power Supply: 9.6VDC-200mA adapter (Not Included)
• Current Draw: 100mA

Dimensions

• Size: 4.75" x 4" x 2.25"

Condition

• Used: Excellent
