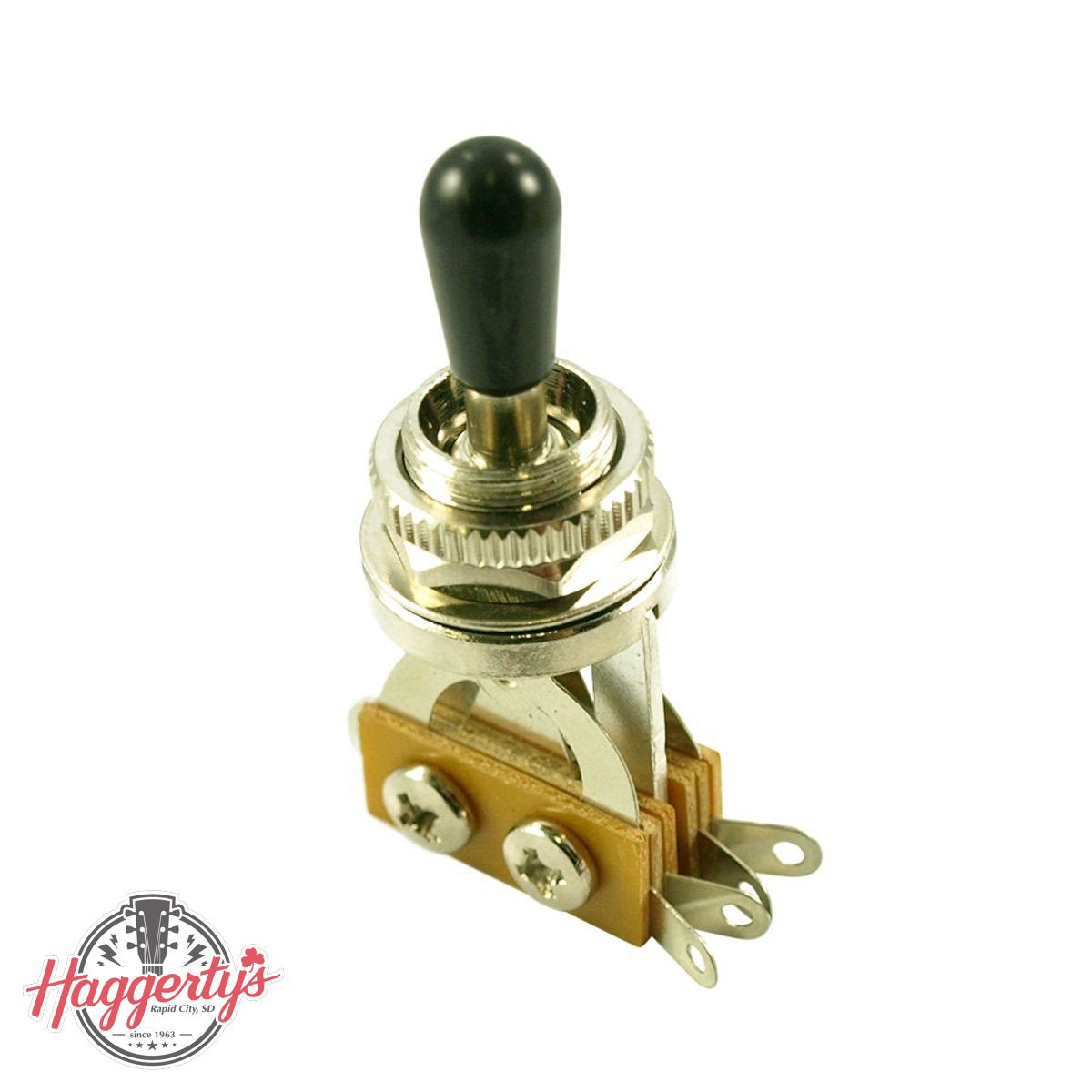

WD 3 Position Toggle Switch For Les Paul Guitars 2 Pickup Chrome with Black Plastic Tip
WDE7C-1
Buy risk free with our 14 day - full refund, less shipping, return policy. Check out our shop policies for more details
WD Music Products® replacement toggle switch for Les Paul® style instruments. Metric threaded bushing and US threaded tip.
Our 3 pickup version allows you to replicate the 3 humbucker Gibson® Les Paul® Black Beauty wiring schematic. Although it does not allow for every switching option it does allow you to wire up to 3 pickups in either the original wiring pattern which offered a combination of bridge, middle+neck, and neck position options, or you could create your own custom combinations.
Specifications:
- Switch tip = 8-32 US thread
- Requires a 15/32 in. mounting hole (12mm)
- Threaded Bushing length is 3/8 in. (9.5mm)
- Thread type on bushing is 12mm -1.0 metric
- 24.38mm tall from base to top of switch
- 31.23mm wide from edges of contact points
